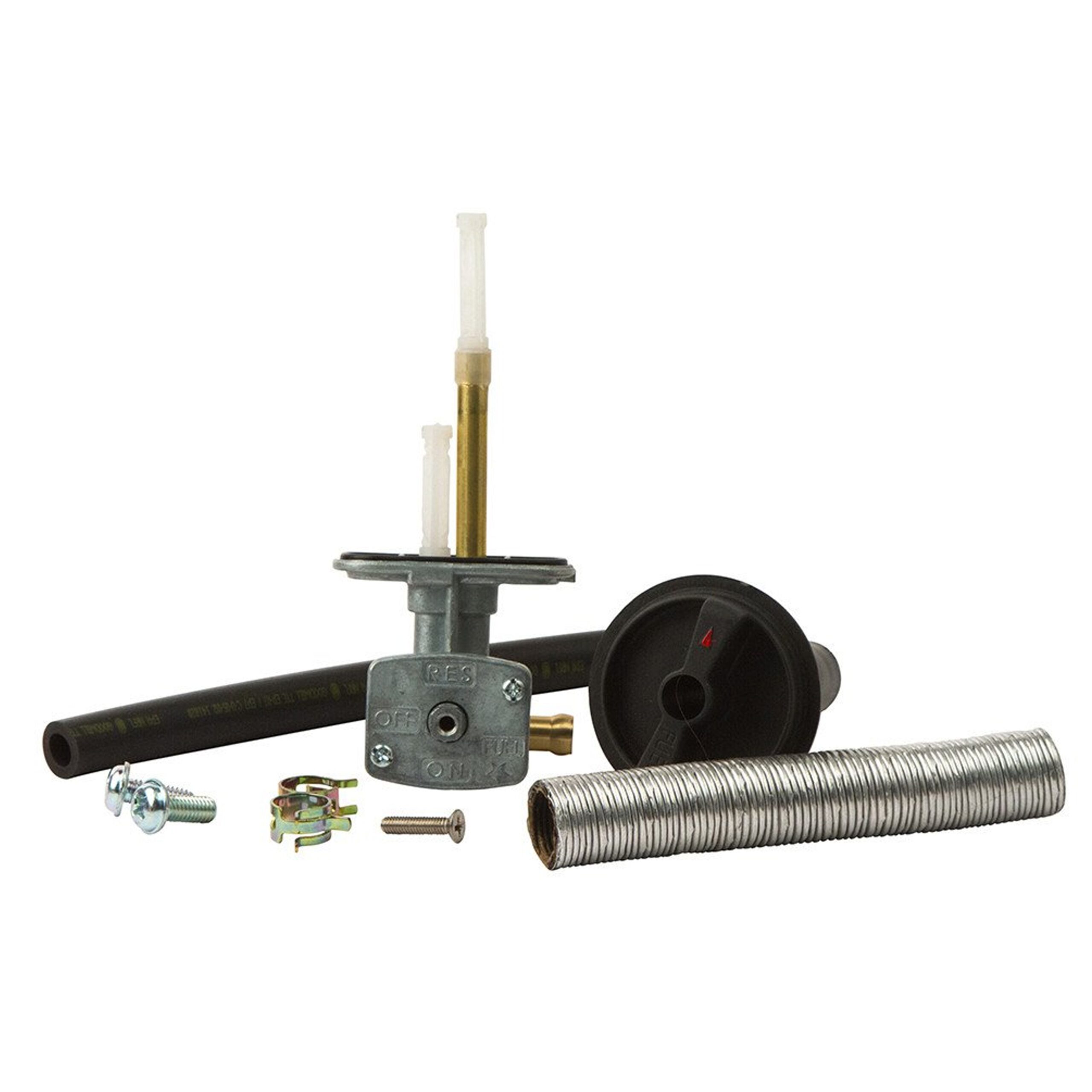

FUEL VALVE KIT YFM 660 F Grizzly 4×4 02-08, Fuel Star FS101-0041 YAMAHA ATV, TAPE / PETCOCK / CLIPS / PIPES / BOLTS

The Fuel Star FS101-0041 Fuel Valve Kit is a complete replacement petcock assembly designed for 2002–2008 Yamaha YFM660F Grizzly 4×4 models, including standard, Hunter, Special, Ducks Unlimited, and Limited Editions. This kit includes all essential components for installation and matches OEM specifications.

Features

• Complete replacement fuel petcock assembly

• Includes gasket, fuel line, clamps, mounting hardware, knob, and line wrap

• Direct-fit design for specified Yamaha ATV models

• Sold individually

Specifications

• (1) Fuel petcock

• (1) Gasket

• (1) Rubber hose

• (1) Black plastic knob

• (1) Fuel line wrap

• (2) 6mm-1.00 x 15mm flange head bolts

• (1) 4mm-.7 x 16mm flat head bolt

• (2) Hose clamps

Cross-Reference OEM Part Numbers

• 5KM-24500-01-00 (Fuel Cock Assy)

• 5KM-24500-10-00 (Fuel Cock Assy)

• 3AC-24523-00-00 (Valve Packing)

• 3AJ-24534-01-00 (Seal, Cock)

• 98507-03014-00 (Screw, Pan Head)

• 4X8-24512-00-00 (O-Ring)

• 90149-06011-00 (Screw)

• 5GH-24524-00-00 (Lever, Cock)

• 1NS-F4524-00-00 (Lever, Cock)

• 98707-04018-00 (Screw, Flat Head)

• 5KM-24311-10-00 (Pipe, Fuel 1)

• 5KM-24327-02-00 (Protector, Pipe)

• 90467-12053-00 (Clip)

• 90467-11044-00 (Clip)

Vehicle Fitments

• 2002 Yamaha YFM660F Grizzly 4×4

• 2003 Yamaha YFM660F Grizzly 4×4

• 2004 Yamaha YFM660F Grizzly 4×4

• 2002 Yamaha YFM660FH Grizzly 4×4 Hunter Edition

• 2003 Yamaha YFM660FH-H Grizzly 4×4 Hardwoods Hunter Edition

• 2003 Yamaha YFM660FH-WL Grizzly 4×4 Wetlands Hunter Edition

• 2004 Yamaha YFM660FH Grizzly 4×4 Hardwoods Hunter Edition

• 2004 Yamaha YFM660FH-WL Grizzly 4×4 Wetlands Hunter Edition

• 2003 Yamaha YFM660F-GY Grizzly 4×4 Limited Edition

• 2004 Yamaha YFM660FLE Grizzly 4×4 Limited Edition

• 2005 Yamaha YFM660FLE Grizzly 4×4 Limited Edition

• 2005 Yamaha YFM660FA Grizzly 4×4

• 2006 Yamaha YFM660FA Grizzly 4×4

• 2007 Yamaha YFM660FA Grizzly 4×4

• 2008 Yamaha YFM660FA Grizzly 4×4

• 2005 Yamaha YFM660FAHW Grizzly 4×4 Wetlands Hunter Edition

• 2006 Yamaha YFM660FAHD Grizzly 4×4 Ducks Unlimited Edition

• 2005 Yamaha YFM660FASE Grizzly 4×4 Special Edition

• 2006 Yamaha YFM660FASE Grizzly 4×4 Special Edition

• 2007 Yamaha YFM660FG Grizzly 4×4

• 2008 Yamaha YFM660FG Grizzly 4×4

• 2007 Yamaha YFM660FGH Grizzly 4×4 Hunter Edition

• 2008 Yamaha YFM660FGH Grizzly 4×4 Hunter Edition
