FRONT SHOCK HD BRONCO 2009-13 POLARIS SPORTSMAN 550 850 AU-04316 7043464

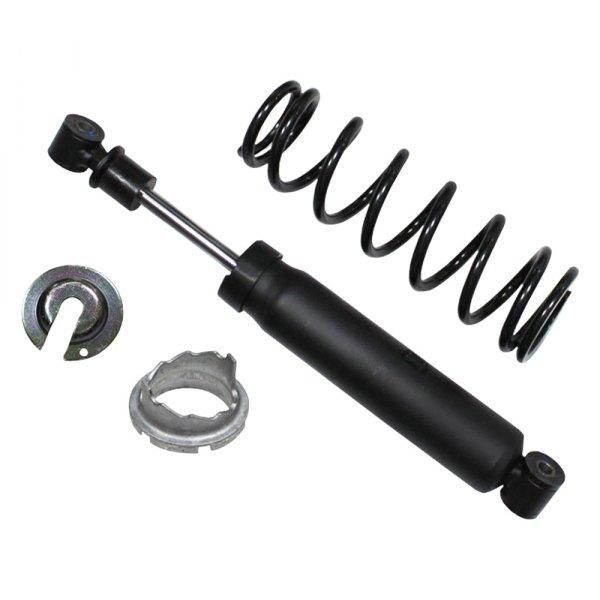

Bronco Front Shock

Compatible Models:

• SPORTSMAN 550 2011-13
• SPORTSMAN 550 EPS 2010-14
• SPORTSMAN 550 XP EPS 2014
• SPORTSMAN FOREST 550 2011-14
• SPORTSMAN TOURING EPS 550 2010-14
• SPORTSMAN X2 550/550 EPS 2011-14
• SPORTSMAN XP 550 2009-10
• SPORTSMAN XP 550 HD/EPS HD 2013-14
• SPORTSMAN XP EPS 550 2009
• SPORTSMAN XP TOURING EPS 550 INTL 2012
• 850 FOREST 2015
• SCRAMBLER 850 HO/EPS HO/MD 2013-16
• SCRAMBLER 850 48 / SP 48 2019-21
• SPORTSMAN 850 MV 2012-16
• SPORTSMAN 850 SP 2015-20
• SPORTSMAN TOURING EPS 850 2010-14
• SPORTSMAN TOURING 850/850 SP 2014-20
• SPORTSMAN 850 WV 2014
• SPORTSMAN FOREST 850 2011-14
• SPORTSMAN X2 850 2011
• SPORTSMAN XP 850 2009-17
• SPORTSMAN XP EPS 850 2009-17
• SPORTSMAN XP 850 HO EPS MD 2015
• SPORTSMAN XP TOURING EPS 850 INTL 2012
• SCRAMBLER 1000 MD (R06) 2016-17
• FOREST 1000 2015
• SCRAMBLER 1000 TRACTOR (R07) 2016-17
• SPORTSMAN 1000 MD 2015-16
• SPORTSMAN 1000 XP 48″ 2015-21
• SPORTSMAN 1000 XP, TRACTOR (R05) 2016-20
• SPORTSMAN TOURING 1000 XP 48″ 2015-20
• SPORTSMAN TOURING TRACTOR 1000 2016-19
• SPORTSMAN XP 1000, ZUG (R04) 2016-19

Specifications:

• Position Top Hole I.D mm: 10
• Top Eyelet Width mm: 30
• Bottom Hole I.D mm: 10
• Bottom Eyelet Width mm: 35.5
• Tube O.D mm: 50.8
• Stroke mm: 118
• Spring OD mm: 80
• Spring Wire Diameter mm: 9.5
• Spring Rate lbs/inch: –
• Spring Rate kg/mm: –
• Centre to Centre mm: 395
• Centre to Centre in: 15 5/9

Features:

• Unmatched reliability and performance from high-tech materials.
• Manufactured to exacting standards so the engine can be rebuilt with total confidence.
• Meets or exceeds OEM quality.
• Direct OEM replacement.
• Please see image before ordering to avoid mistakes.
• Best value for money.
• ORO products are a high quality replacement part and carries our guarantee of your satisfaction.
• Easy to install but if unsure please use a professional.

Bronco Ref: AU-04316
Kimplex/OEM Ref: 7043464
