FORK TUBE & CARTRIDGE ROD TOOL

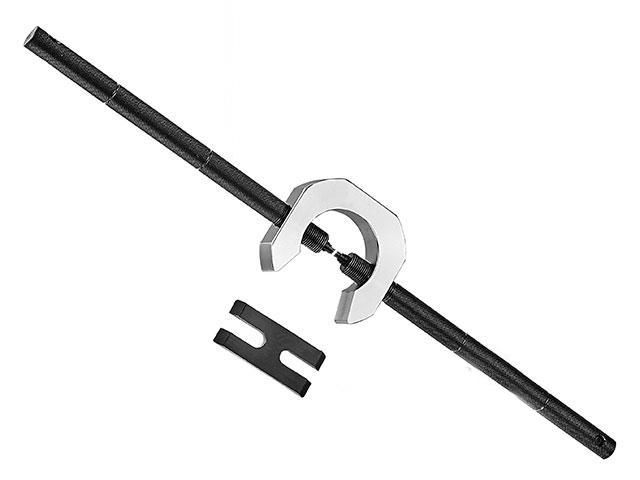

The Fork Tube & Cartridge Rod Holding Plate Tool is designed for the assembly and disassembly of fork tubes and cartridge rods, specifically for KYB, SHOWA twin chamber, and most street cartridge forks. It enables secure holding of the spring while loosening or tightening the bottom nut or fork cap. With robust steel construction, the tool is compatible with a wide range of motorcycle models and supports rod sizes from 10 to 12.5 mm.

Features

• Used to assemble and disassemble fork tubes from fork bottoms

• Ideal for KYB / SHOWA twin chamber and most street cartridge forks

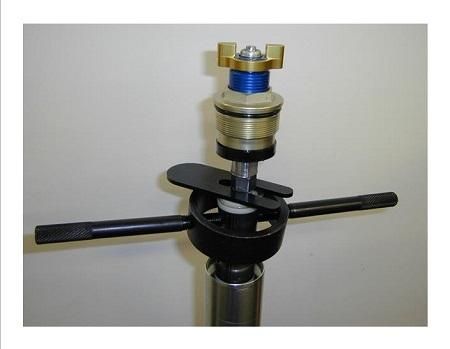

• Holds back the spring for easy loosening/tightening of the bottom nut or fork cap

• Fits 10 to 12.5 mm cartridge rods

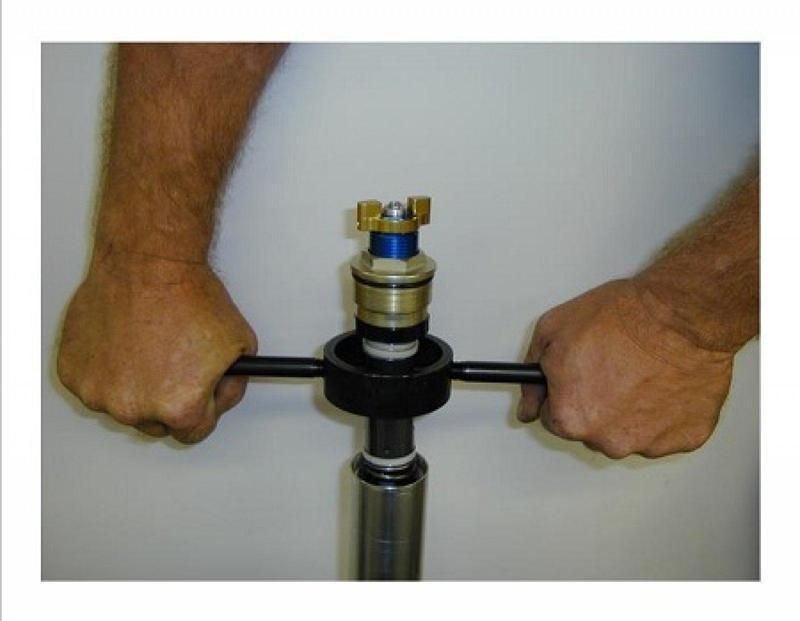

• Includes 2 holding handles for additional stability

Specifications

• Holder dimensions: 102 x 102 mm

• Inner diameter: 56 mm

• Handle dimensions: 292 mm x 2 pcs

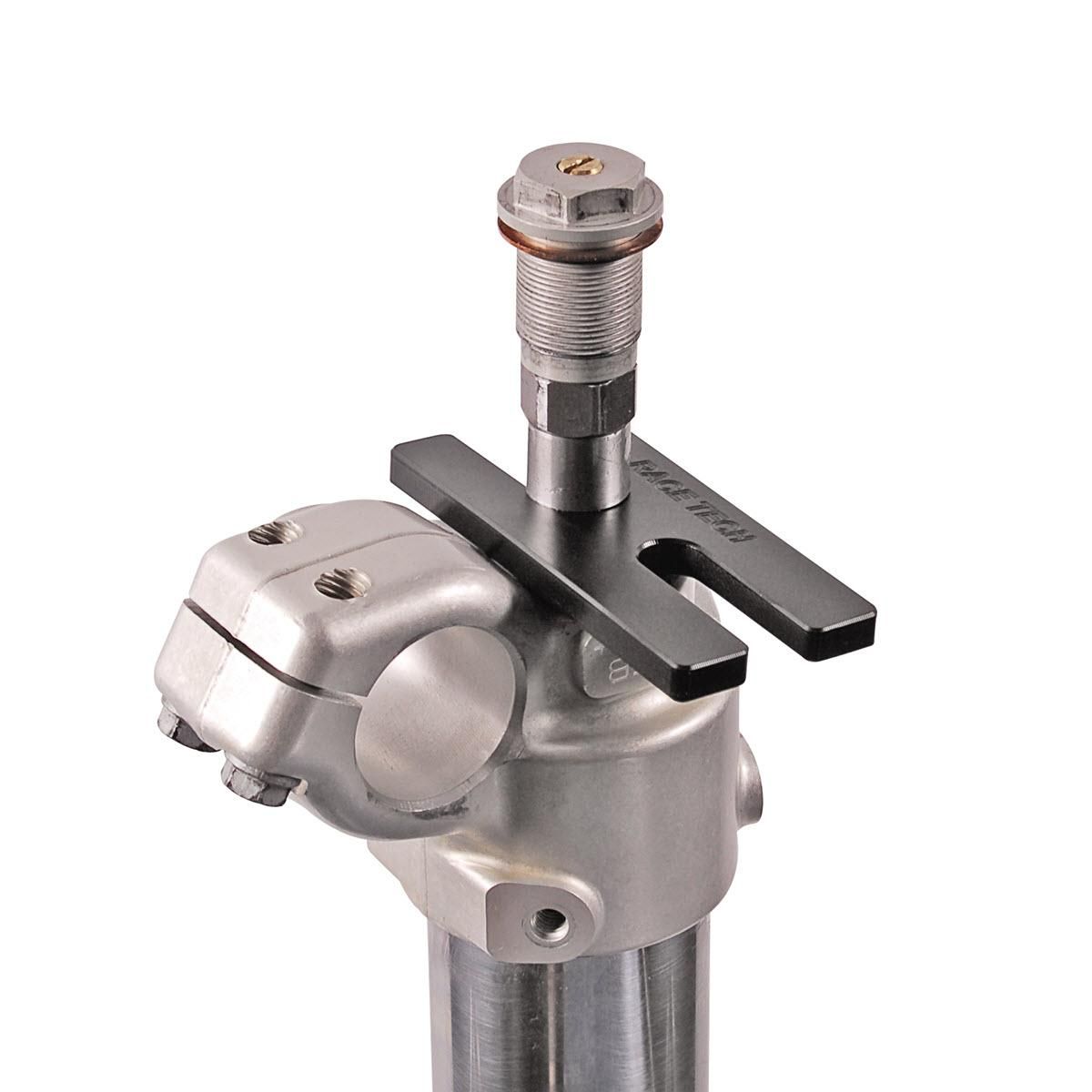

• Plate dimensions: 84 mm (length) x 38 mm (width) x 6 mm (thickness)

Vehicle Fitments

• Honda: CRF1100L ATAS 2020–2021, CRF1100L AFRICA TWIN 2020–2021, Z125MAK MONKEY 2021, VFR1200X Crosstourer DCT 2021, VFR1200X Crosstourer 2021, MSX125 Grom 2021, CBR1000RR 2021, CB300R 2021

• KTM: 950 ADVENTURE S 2003–2006

• Yamaha: YZF-R3 2021, YZ125X 2021, MT-09 SP 2021, YZF-R1M 2021, MT-10 2021

• Ducati: Monster 1200S (ABS) 2021, Monster 1200R 2021, Supersport (937cc) 2021, Supersport S (937cc) 2021, Scrambler 800 Café Racer 2021, Scrambler 800 Desert Sled 2021, Scrambler 800 Full Throttle 2021, Scrambler 800 Ikon 2021, Scrambler 1100 Sport 2021, Monster 659 (ABS) 2021, 959 Panigale 2021

• BMW: S 1000 R Naked 2021, S 1000 XR 2021, S 1000 RR 2021

• Triumph: Thruxton 1200R 2021, Scrambler 1200 XE 2021, Scrambler 1200 XC 2021, Tiger Sport 1050 2021, TIGER 800 XRX LOW 2021, Rocket 3 GT 2021, Rocket 3 R 2021, Street Triple RS (765cc) 2021

• SWM: Gran Milano 2021, SuperDual 2021

• Norton: Dominator 961 2021

• Moto Guzzi: V85 TT 2021

• Suzuki: GSX-S1000S Katana 2021, V-Strom 1000XT 2021, GSX-S750 2021, GSX-S1000F 2021, GSX-S1000 2021, GSX-R750 2021, GSX-R1000R 2021, Boulevard M109R (VZR1800) 2021

• Kawasaki: Z125 Pro (BR125) 2021, KLX300R 2021, ZX-10RR Ninja (ZX1000Z) 2021, Z900RS 2021, Z900 (ZR900) 2021, Versys 1000 KLZ1000 2021, ZX-10R ABS (ZX1000) 2021, Ninja H2 SX SE (ZX1002) 2021, Ninja H2 (ZX1002) 2021, KLX150BF (KLX150F) 2021, ZX-14R SE (ZX1400) Brembo Ohlins 2021

• Cobra: CX50 FWE 2021, CX50 SR 2021
