FORK OIL SEAL SET 36x48x8/9.5, ATHENA P40FORK455035

ATHENA Fork Oil Seal Kit 36x48x8/9,5 mm – P40FORK455035

Description

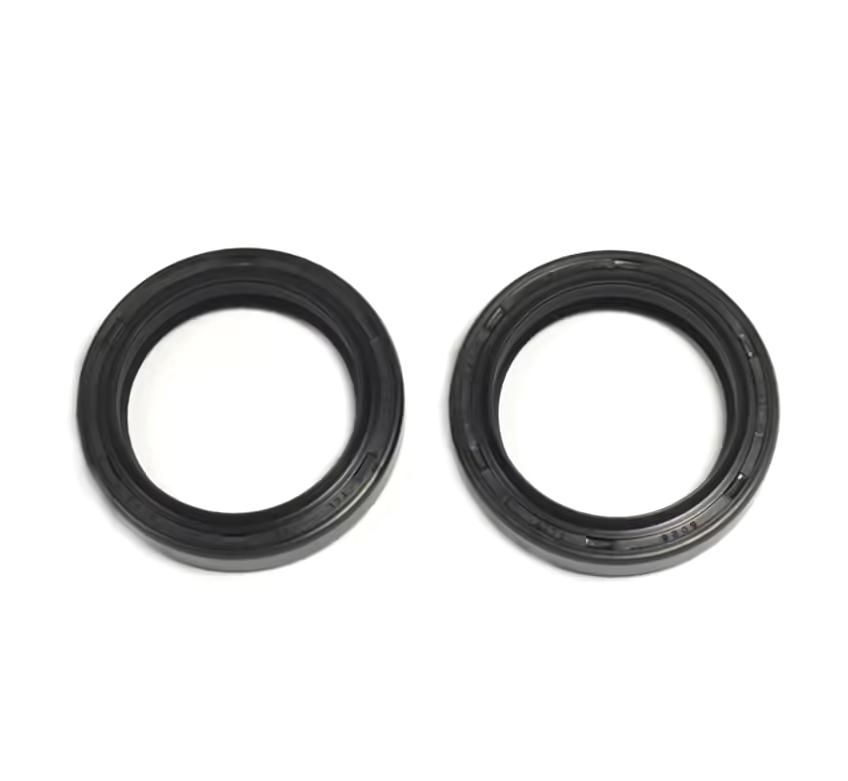

This kit is composed of two fork oil seals with exterior part in rubber, a single sealing lip and a bulging dust seal lip. Athena has a full range of fork oil and dust seal kits. The quality of Athena fork oil and dust seals is superior compered to OEM’s, guaranteeing excellent, smooth performance, seal at high temperatures and great resistance to abrasion.

Technical features

• External Diameter (mm) 48.00
• Height 8.00
• Internal Diameter (mm) 36.00
• Material Rubber
• Net Weight (Kg) 0.04
• Oil Seal Structure One seal lip and one dust leaning lip
• Oil Seal Total Height (mm) 9.50

Partner OEM code

• KAWASAKI 920491394
• KAWASAKI 920491193
• KAWASAKI 920491101
• SUZUKI 5115316730
• SUZUKI 5115316700
• YAMAHA 5G22314500
• YAMAHA 4ES231450000
• YAMAHA 4ES2314500
• YAMAHA 49A2314500
• YAMAHA 3J22314500
• YAMAHA 15R2314500

Vehicle compatibility

• HONDA CR R 80 cc 1992/1995
• KAWASAKI GT 550 cc 1983/1994
• KAWASAKI KX 100 cc 1995/2013
• KAWASAKI KX 80 cc 1992/1994
• KAWASAKI KX 80 cc 1998/1999
• KAWASAKI KX 85 cc 2001/2015
• KAWASAKI KX 85 cc 2017/2022
• KAWASAKI KZ A 700 cc 1984
• KAWASAKI KZ E / H / K / L3 / M1 / R1 750 cc 1980/1984
• KAWASAKI KZ F1 / F2 / H1H / 2 / M1 550 cc 1983/1984
• KAWASAKI KZ H / F 650 cc 1981/1983
• KAWASAKI Z 550 cc 1983/1994
• KAWASAKI Z D1 / D1A / D2 / D3 / D4 650 cc 1980/1983
• KAWASAKI ZN 700 cc 1984/1985
• KAWASAKI Z S/R 750 cc 1980/1984
• SUZUKI DR 250 cc 1982/1985
• SUZUKI DR 500 cc 1981/1983
• SUZUKI DS 250 cc 1980
• SUZUKI PE 175 cc 1978/1981
• SUZUKI PE 250 cc 1977/1981
• SUZUKI PE 400 cc 1980/1981
• SUZUKI RGV GAMMA 250 cc 1983/1984
• SUZUKI RM 100 cc 2003/2008
• SUZUKI RM 125 cc 1977/1978
• SUZUKI RM 370 cc 1976/1977
• SUZUKI RM 400 cc 1978
• SUZUKI RS 175 cc 1980/1982
• SUZUKI RS 250 cc 1980/1981
• SUZUKI SP 400 cc 1980
• SUZUKI SP 500 cc 1981/1983
• SUZUKI TS 250 cc 1980/1981
• YAMAHA FJ CHAIN DRIVE AC 600 cc 1984/1985
• YAMAHA FZ 600 cc 1986/1988
• YAMAHA SRX 600 cc 1986/1989
• YAMAHA TZ 250 cc 1980/1982
• YAMAHA XJ 750 cc 1982/1983
• YAMAHA XJ G / H / LH / RJ EUROPA 650 cc 1980/1984
• YAMAHA XJ H / L / LC / N / NC 600 cc 1984/1991
• YAMAHA XS 850 cc 1980/1981
• YAMAHA XV K VIRAGO 500 cc 1983
• YAMAHA XV RH / J / RJ / K 920 cc 1983
• YAMAHA XV VIRAGO 750 cc 1981/1983
• YAMAHA YX S / SC / T / TC 600 cc 1986/1990
• YAMAHA YZ 65 cc 2018
• YAMAHA YZ 65 cc 2020/2022
• YAMAHA YZ 85 cc 2002/2022
• YAMAHA YZ LC 80 cc 1993/2001
