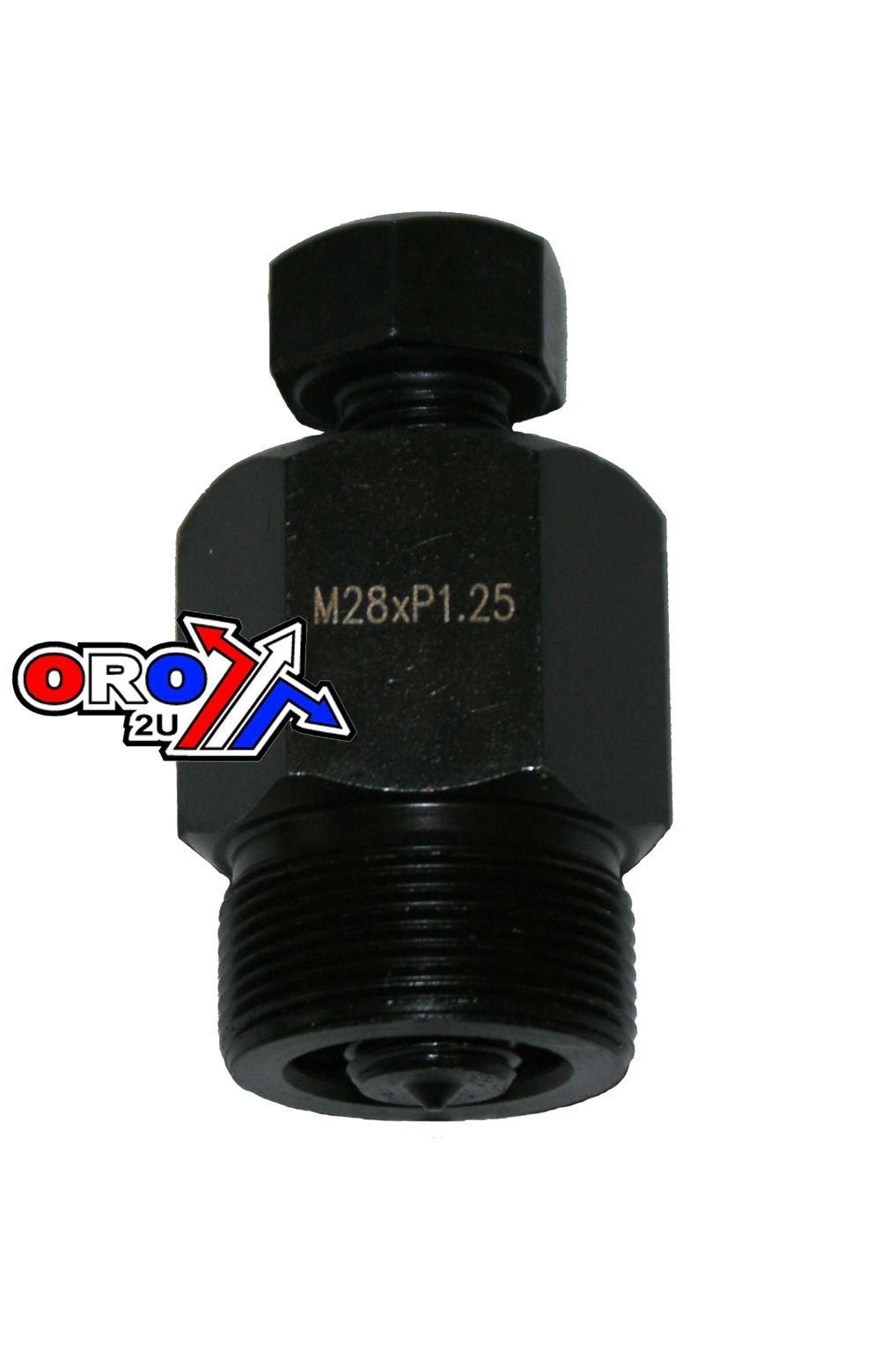

FLYWHEEL PULLER M28 x 1.25 RH

FLY WHEEL EXTRACTOR M28 x 1.25mm Right Hand Thread.

ATK rotax with motoplat.

A flywheel puller with a thread diameter of 28mm and a thread pitch of 1.25mm.

• Used for removal of the flywheel or rotor.
• Premium quality high carbon steel S45C.
• Heat treated for strength and durability.
• Durable hot black oxide finish.
• 28mm x 1.25P RH External Thread.

Tips on use.
– Make sure the flywheel thread is clean of dirt and not damaged before screwing the puller in.
– Use copper grease on the puller threads, for long life.
– Make sure the puller is fully screwed into the flywheel.
– After tightening use a hammer on the centre and tap to jolt free [not always need].
– If using old flywheel pullers make sure the threads are in good condition before use to avoid damage to flywheel.

Part No. 00-129.DR (oro2u.com)

Cross reference numbers ONLY.
BZ5243, GS9518312,
