| Product Type | Engine Mount |
|---|---|
| Product Group | Frame & Chassis |
| Catalogue | ATV |

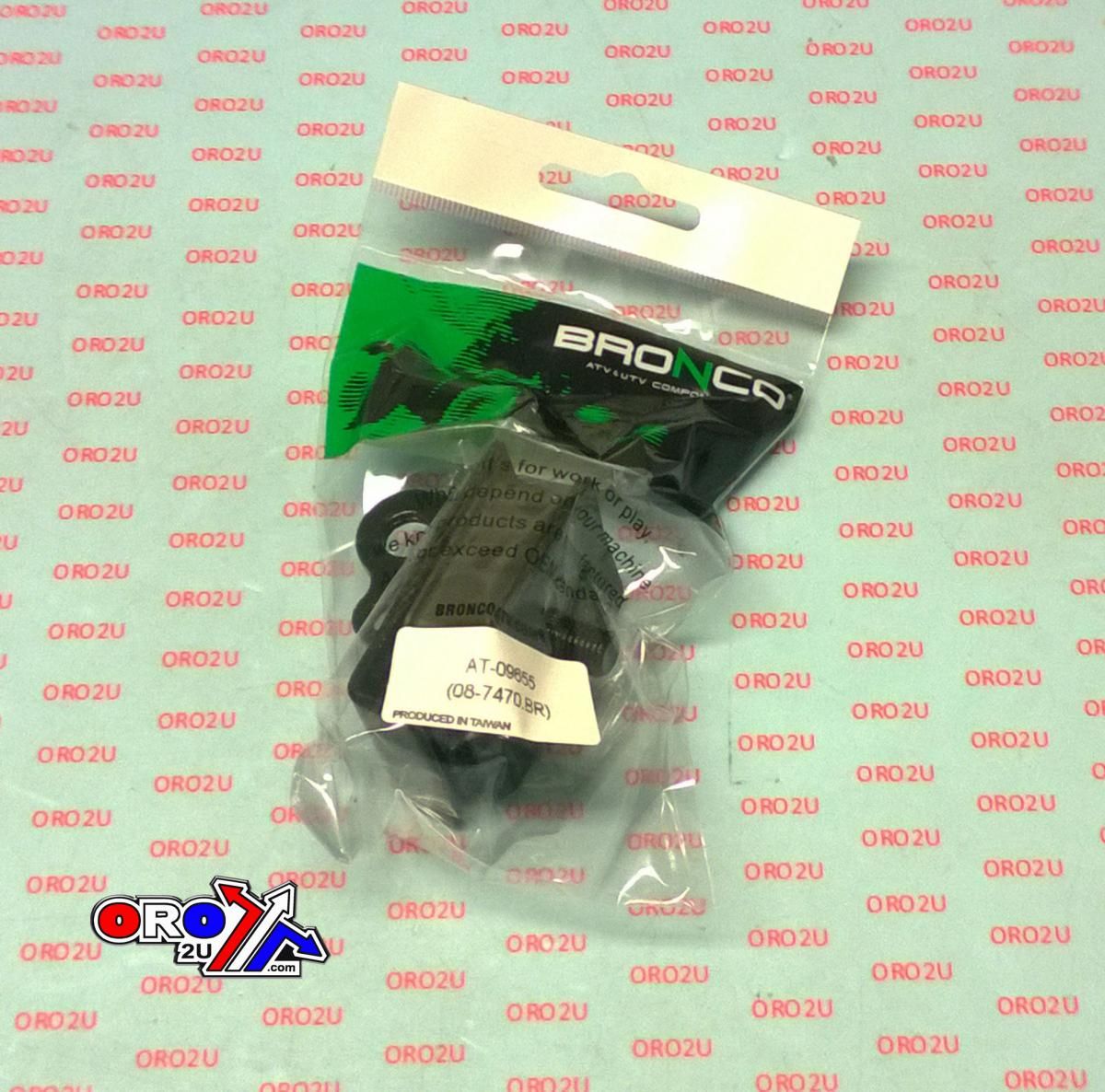

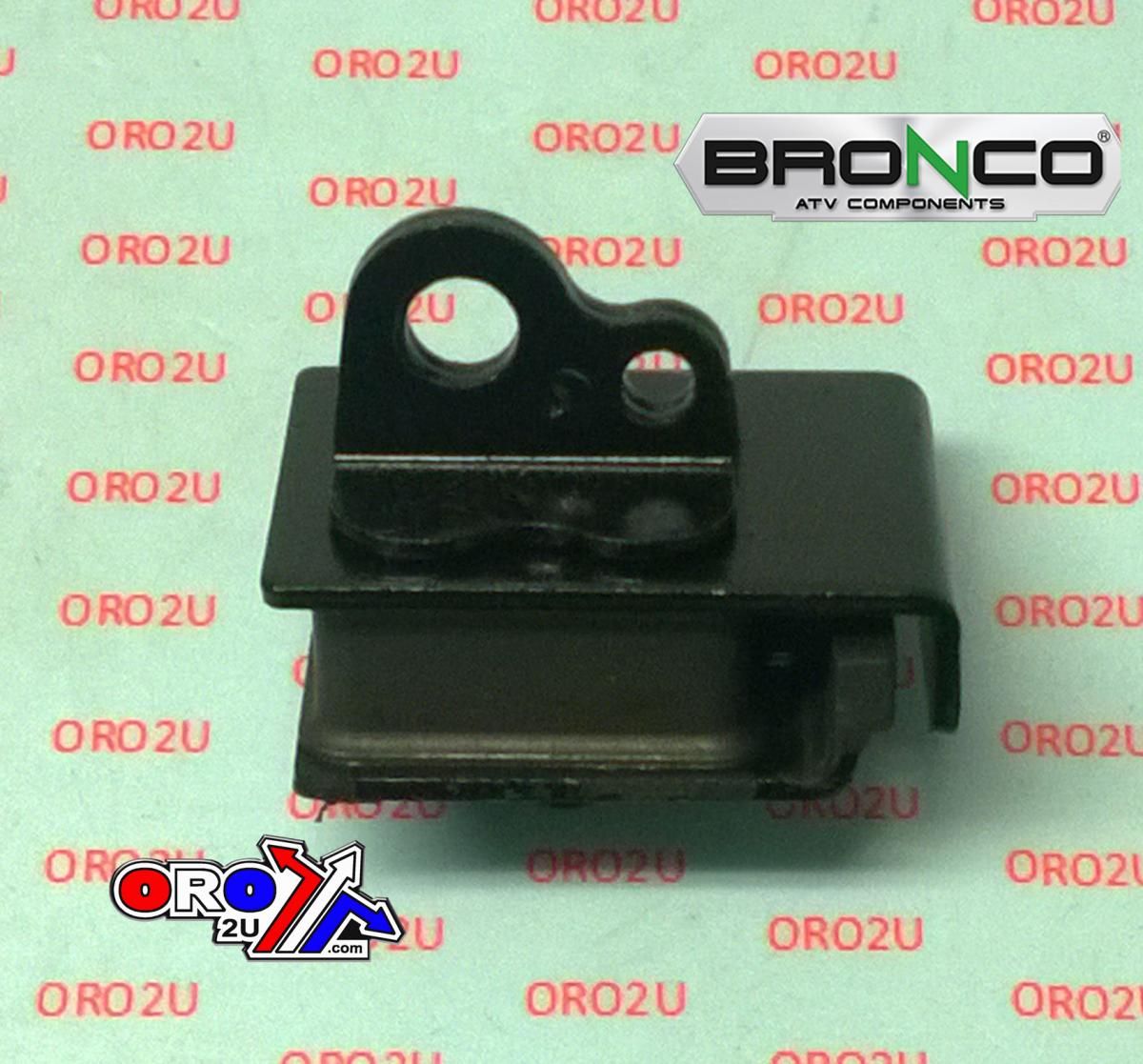

ENGINE MOTOR MOUNT YFM450/550/700, BRONCO AT-09655
MOTOR MOUNT BRONCO AT-09655
YAMAHA
YFM KODIAK 450 2018,
YFM GRIZZLY 550 2009-2014,
YFM GRIZZLY 700 2017-2015,
| Bracket size | |
| L 60.7 mm(2.39″) | |
| W 41.9 mm(1.65″) | |
| T 22.1 mm(0.87″) | |
| Rubber size | |
| L 40.5 mm(1.6″) | |
| W 34.6 mm(1.36″) | |
| T 16.5 mm(0.65″) | |
| Bolt size | |
| M10 x pitch 1.25 | |
| Length 14.2 mm(0.56″) | |
| Hole size | |
| 10.1 mm(0.40″)/ 6.6 mm(0.26″) | |
| Neoprene + Steel (SPCC) | |
Cross Reference Numbers Only:
3B4-21485-00-00, 3B4-21485-01-00,
