DISC ROTOR BRAKE BOLT FRONT/REAR WITH THREAD LOCK, M8 x 24MM BOSS 9.9×6 HONDA

DISC ROTOR BRAKE BOLT FRONT/REAR WITH THREAD LOCK

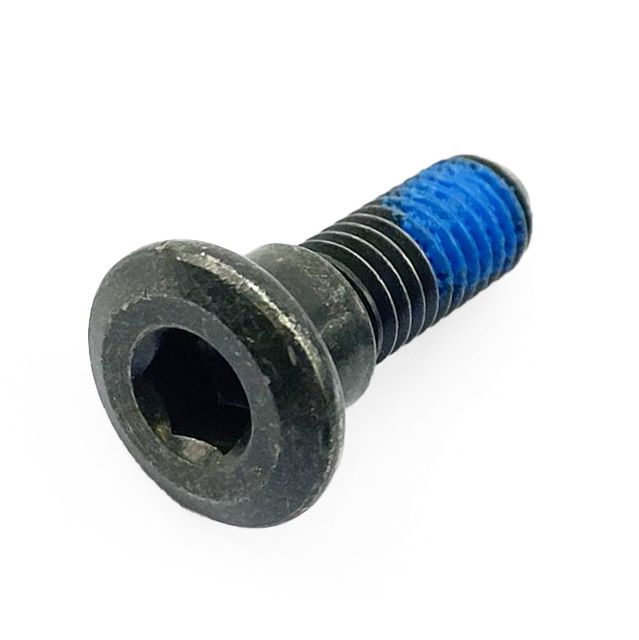

Manufactured from high-tensile hardened chrome steel, and supplied with locking patch for secure fitting.

Cross Reference Numbers Only:

• UP-05034,
• UP-05055,
• 90105-MFL-D20,
• 90105-MV9-003,
• MLSSDISCHONRE 90105-MV9-003.
• 90105-MV9-003,
• 90105-MV9-000,
• 9015-MBB-000,
• 90105-KL8-741
• 90105-MV9-003,
• 90105-MV9-000,
• 9015-MBB-000,
• 90105-KL8-741



SPECIFICATION:

• SIZE. M8 x 1.25,
• Thread Length 18.2mm,

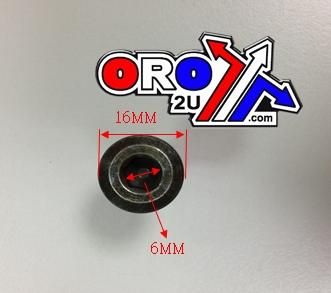

• SHOULDER LENGTH 6.2mm x dia 9.9mm,

MODEL FITMENT:

DISC ROTOR BRAKE BOLT

HONDA

• ALL YEARS CB125
• 2003-08    CB1300
• 1996-03    CB500 Unfaired
• 1998-99    CB600 Hornet SFW-SFX
• 2001-07    CB900 Hornet
• 2006-09    CBF1000
• 2009-10    CBF1000 ABS
• 2008-09    CBF600S
• 2004-16    CBR1000RR Fireblade
• 1997-05    CBR1100XX Blackbird
• 1988-89    CBR400RR NC23 Tri Arm
• 1990-94    CBR400RR NC29 Gull Arm
• 1991-94    CBR600
• 2000-04    CBR600F1-F5
• 2001-02    CBR600FS1-FS2
• 1995-98    CBR600FS-FW
• 1999-00    CBR600FX-FY
• 2003-16    CBR600RR
• 1992-95    CBR900RRN-RRS Fireblade
• 1996-97    CBR900RRT-RRV Fireblade
• 1998-99    CBR900RRW-RRX Fireblade
• 2000-01    CBR929RRY-RR1 Fireblade
• 2002-03    CBR954RR2-RR3 Fireblade
• 1993-09    CBR1000F
• 2012-13    NC700
• 1997-05    VTR1000 F Firestorm
• 2000-01    VTR1000 SP1 – RC51
• 2002-05    VTR1000 SP2 – RC51
• 2001-10    XL1000V V4-V9 Varadero
• 2008-12    XL700 VA Transalp
• 2007-13    CB600 Hornet F7-FAE
• 1998-06    CB600 Hornet FY-F6
• 2014-17    VT700 SHADOW
• 1995-07    VT1100 Shadow
• 2003-09    VTX1300
• 2002-13    FSC Silver Wing & 2014-2015 NSS300 Forza
• 1991-94    CBR600
• 1993-09    CBR1000F (not 97-03 CBR1000XX),
• 1992-03    ST1100
• 1998-03    GL1500
• 2010-11    NT700
• 2015-16    CMX250
• All Honda  NS250 and NSS250 including Reflex

HONDA ATV

• 2001-18   TRX250
• 1999-09   TRX400
• 2005-13   TRX420
• 2004-13   TRX450
• 2005-13   TRX500
• 2006-18   TRX680
• 2008        TRX700

HONDA SCOOTER

• 2004-07   NSS250
• 2014-15   NSS300 Forza
• 2002-13   FSC600 Silver Wing
• 2005-06   PS250 – BIG RUCKUS
• 2010        SH150I

Part No. 08-384.EA (oro2u.com)
