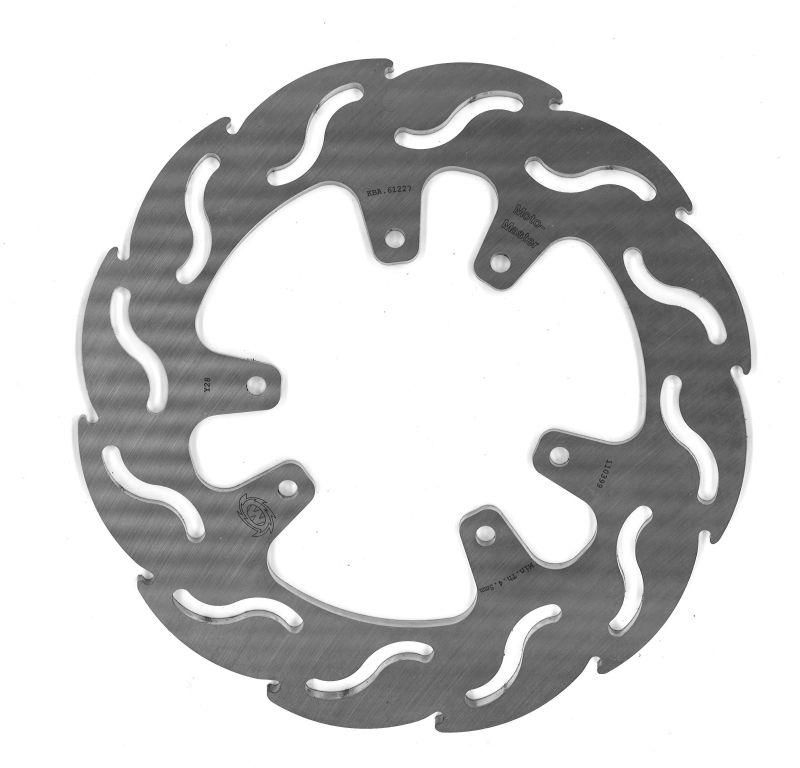

DISC BRAKE REAR XT600 / XTZ, MOTO-MASTER 110399, 2KF-25831-50-00

Part No. 40-175.FLAME (oro2u.com)
YAMAHA XT600 1988 – 1994,
YAMAHA XT600 1995 – 2003,
YAMAHA XTZ660 1991 – 1999,
Moto-Master Flame rotors are manufactured to the tightest

tolerances and specifications. Made from hardened and refined Chrome-Molybdenum alloy steel, these rotors allow for high-performance braking while exhibiting extremely little wear. All discs are lasercut, CNC drilled, and surface machined for perfect fitment and flatness. Also, by integrating our Flame design into the disc, cooling and cleaning of the contact surface is much improved. For best performance we recommend using Moto-Master brake pads with the matching pad compoun 40-175.MD.OE”
Cross reference numbers ONLY. 2KF-25831-50-00,
Outer diameter: 220.0 mm Inner Diameter: 86.0 mm Thickness: 5.0 mm Number of holes: 6 (3×2) Hole diameter: 6.5 mm

riding.
Cross reference numbers ONLY. 2KF-25831-50-00,
Outer diameter: 220.0 mm Inner Diameter: 86.0 mm Thickness: 5.0 mm Number of holes: 6 (3×2)
