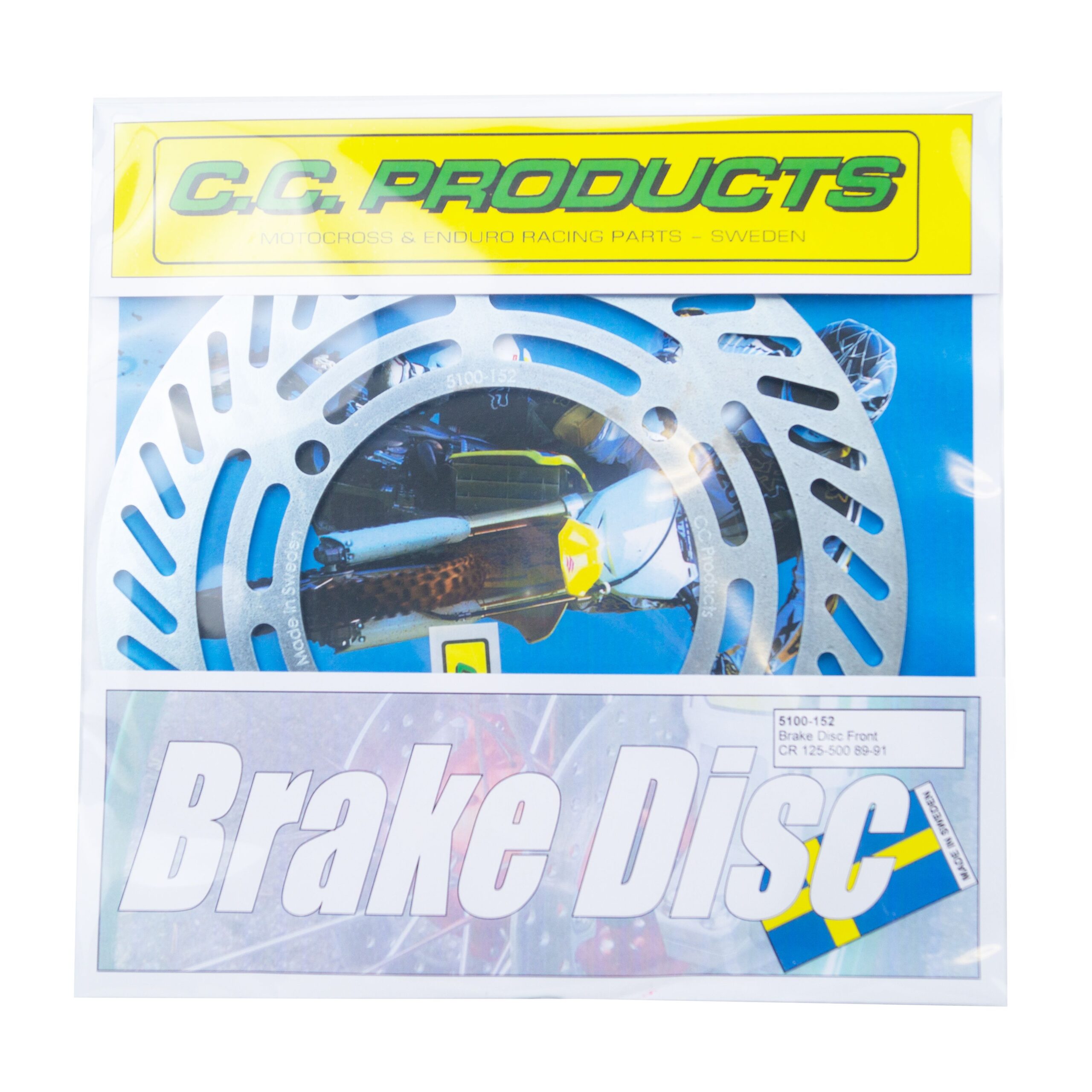

DISC BRAKE FRONT CR XR HONDA, CROSS-CENTER PRODUCT 5100-152 [Made in Sweden]

Front brake disc designed for Honda CR models, compatible with select years. Manufactured in Sweden to meet or exceed OEM quality standards. Features precise dimensions for proper fitment, ensuring reliable performance. Please verify wheel specifications before ordering, as there are three similar discs with subtle differences in bolt hole configurations.

Features:

• High-quality replacement part.
• Meets or exceeds OEM standards.
• Direct OEM replacement for seamless installation.
• Exceptional value for money.
• Designed for durability and performance.

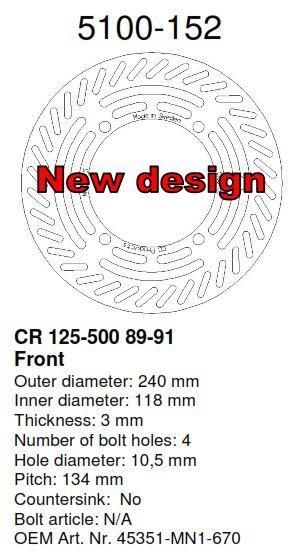

Specifications:

• Outer diameter: 240 mm
• Inner diameter: 118 mm
• Thickness: 3 mm
• Number of bolt holes: 4
• Bolt hole diameter: 10.5 mm (asymmetrical)
• Short distance between bolt holes: 86 mm
• Long distance between bolt holes: 104 mm
• Pitch circle diameter: 134 mm
• Countersink: None

Cross-Reference OEM Part Numbers:

• Brake disc: 45351-ML3-910
• Brake disc bolt (M8x22): 90105-MK5-010

Compatibility:

• Honda CR 125: 1989-1991
• Honda CR 250: 1989-1991
• Honda CR 500: 1989-1991

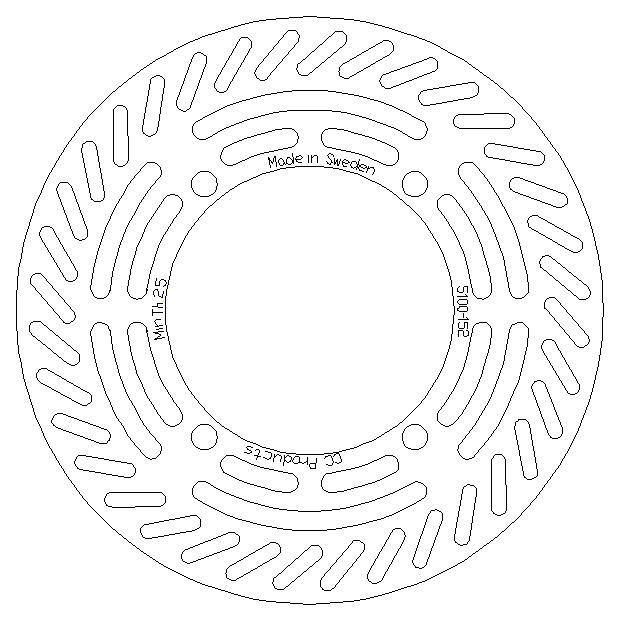

Important: Compare with alternatives 5100-262 (1984-1988) and 5100-266 (1992-1994) to confirm compatibility based on bolt hole sizes and configurations. Review the product image carefully before ordering to avoid mistakes.

Part Number: 40-102_CC
