![DID 520ATV2 120L X-RING CHAIN [FJ] DID520ATV2GB120](https://s3.us-west-2.amazonaws.com/exciting-dubinsky.52-56-113-123/wp-content/uploads/2025/09/25012215/30-841-120-ATV2_74-1.jpg)
| Product Type | Drive Chain |
|---|---|
| Product Group | Chain & Sprockets |
| Catalogue | ATV, DIRT, ROAD |
| Number of Teeth | |
| Pitch | 520.0 |
| Links | 120.0 |
| Chain Colour | Gold/Black |
| Chain Type | X-Ring |
| Sprocket Material | |
| Sprocket Type |

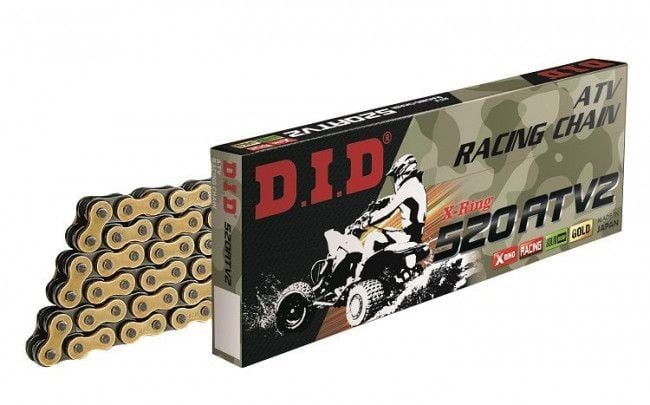

DID 520ATV2 120L X-RING CHAIN [FJ] DID520ATV2GB120
DID 520 ATV2 120L X-RING CHAIN
X-RING CHAIN (ATV2)
– Greatly increased sealing performance with four sections.
– Keeps dirt out and lubrication in.
– Lowest friction of all types of O-rings.
– Twisting action disperses the pressure and minimizes power loss.
– Maximum wear resistance.
– High performance ATV chain.
– Max. Engine Size: 400cc.
– Tensile Strength: 7,600 lbs.
– Wear Life Index: 3,250 (Wear Life Index should be used as a comparison for probable wear life, under identical circumstances. Think of it as a percent, with standard chains being 100).
Part No. 30-841.120.ATV2 (oro2u.com)
Cross reference numbers ONLY.
DID520ATV2GB120,
