CYLINDER KIT YFM700 GRIZZLY 14-16, WORKS CYLINDER 21104-K02 BIG BORE, 105mm 770cc 2014 – 2015 Yamaha YFM 700 FG Grizzly 4×4 ATV
£843.78
Brand: Cylinder Works
Stock: 1
| Product Type | Cylinder Kits |
|---|---|
| Product Group | Engine |
| Catalogue | ATV |
CYLINDER KIT YFM700 GRIZZLY 14-16, WORKS CYLINDER 21104-K02 BIG BORE, 105mm 770cc 2014 – 2015 Yamaha YFM 700 FG Grizzly 4×4 ATV

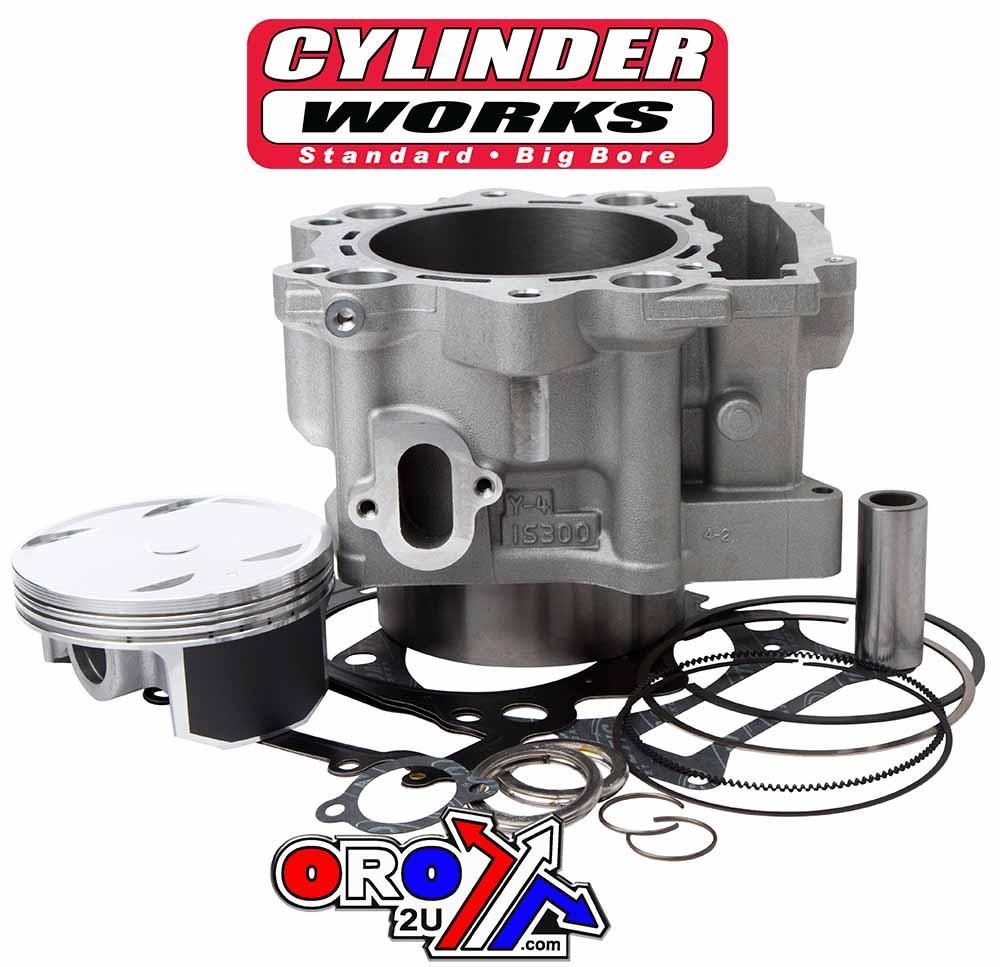

+3mm Big Bore Cylinder Kit designed for Yamaha YFM 700 Grizzly 4×4 and Viking 700 models. This direct bolt-on kit increases displacement to 727cc and includes a matched Vertex piston for enhanced durability, performance, and reduced engine noise. Nickel Silicon Carbide plating ensures long life, and no replating is required.
Features
- Direct bolt-on installation with no replating required
- Increases displacement to 727cc with a 10.1:1 compression ratio
- Nickel Silicon Carbide plated for extended durability
- Includes matched Vertex piston for optimized performance
- Comes complete with all necessary components for installation
- Compatible with Hot Rods #4179 to achieve 770cc displacement
- Replacement Vertex piston, rings, clips, and pins available separately
- Manufactured in the U.S.A.
Specifications
- Part Number: 21104-K02
- Bore Size: +3mm
- Displacement: 727cc
- Compression Ratio: 10.1:1
- Uses Vertex Piston #23967

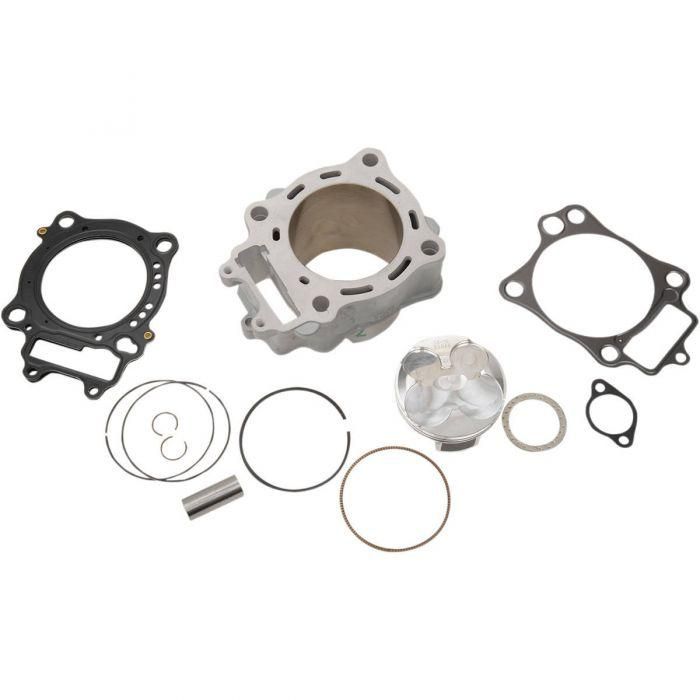

Included Items
- (1) Cylinder
- (1) Piston kit
- (1) Top-end gasket kit
- (1) Piston pin
- (2) Circlips
- (1) Ring set
Vehicle Fitments
- 2014-2015 Yamaha YFM700 Grizzly 700 4×4 (Various Models)
- 2014-2018 Yamaha YXC700 Viking VI 700 (Various Models)
- 2014-2018 Yamaha YXM700 Viking 700 (Various Models)
