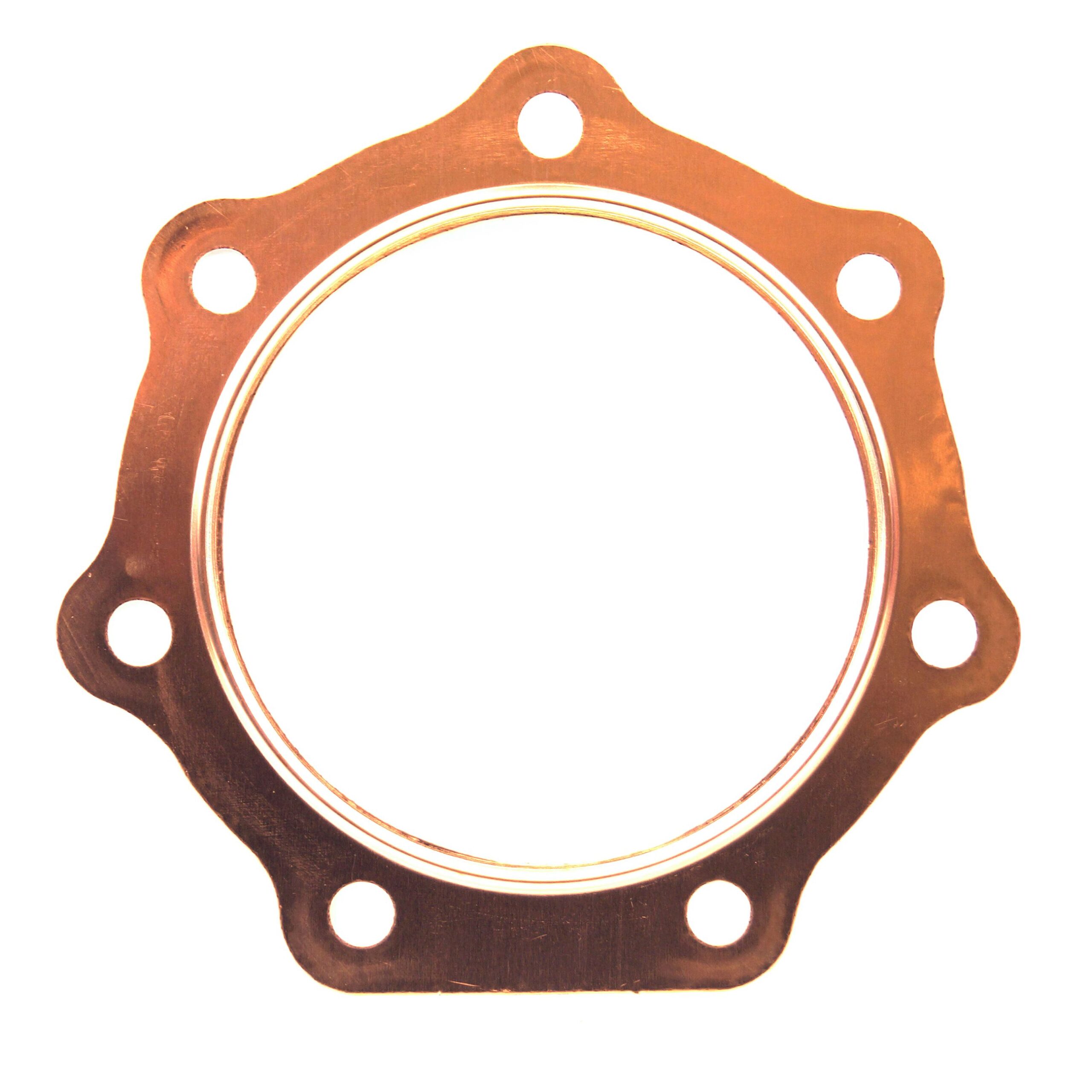

CYLINDER GASKET HEAD CR450/480/500 81-84, ATHENA S410210001083 HONDA

ATHENA Cylinder Head Gasket thickness same as OE – S410210001097

Description

The head gasket is a complex and crucial technological component. To meet the ongoing needs of the market, Athena conducts meticulous checks on its head gaskets, both during the design phase and during bench tests. Athena head gasket can be produced using different technologies, such as metal/elastomer combinations or multilayer with Athena steel and coating materials. Choosing a Top-quality gasket is the first step towards a reliable engine.

Depending on the type, it is submitted to:

1.1. High precision cutting

Thanks to latest generation lasers, it is possible to obtain a high degree of precision and purity, completely eliminating production burrs. These can cause various elements (oil, water, compression gas) to infiltrate compromising engine operations.

2.2. Alignment of reliefs

This solution increases the elasticity of the gasket during operation, guaranteeing excellent grip over time, even in extreme conditions. On the contrary, a misalignment of the reeds would cause an immediate flattening of the gasket, eliminating the function of elastic memory and the consequent loss of compression.

Technical features

• Net Weight (Kg) 0.05

Partner OEM code

• HONDA 12254KA5770

Vehicle compatibility

• HONDA CR R 480 cc 1982/1983
• HONDA CR R 500 cc 1984
• HONDA CR RB / R ELSINORE 450 cc 1981



Part No. 28-550.84 (oro2u.com)
