CYLINDER FULL KIT STD 96.00mm HONDA 2002 – 2010 CRF R F 450 ATHENA P400210100002

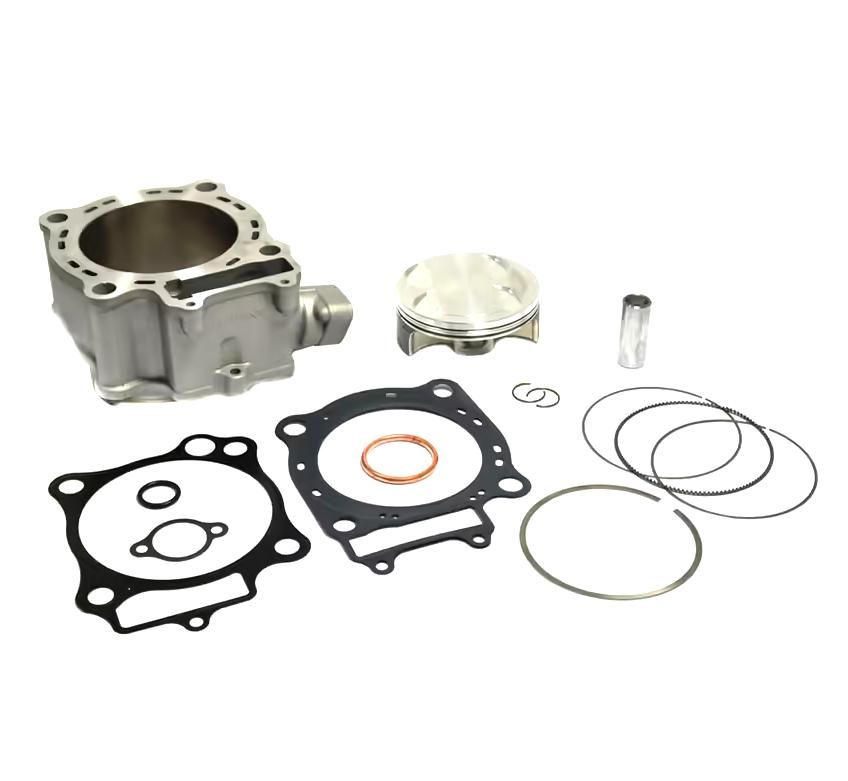

Athena Standard Bore Cylinder Kit Ø 96 mm, 450 cc (P400210100002) is designed for Honda CRF 450 models from 2002 to 2010. This kit includes a high-quality aluminum cylinder with a nickel-silicon coating, a complete piston assembly with piston pin and rings, and all necessary gaskets. Engineered in Italy, it ensures durability, optimal wear resistance, and smooth performance. Developed to meet original specifications, the kit withstands high temperatures and pressures and can be installed without modifications to the engine crankcase.

Features

• High-quality aluminum cylinder with a standard 96 mm bore
• Motor-nicksil nickel-silicon coating for wear resistance and smooth operation
• Complete piston kit with piston pin and rings
• Includes gasket kit for complete installation
• Designed for extreme reliability under high temperatures and pressures
• No modifications required for installation

Specifications

• Bore Diameter: 96.00 mm
• Compression Ratio: 12.0:1
• Displacement: 450 cc
• Net Weight: 1.70 kg

Cross-Reference OEM Part Numbers

• S4F09600002A – Piston Kit 95,96 12:1 EUR
• S4F09600002B – Piston Kit 95,97 12:1 EUR
• P400210160002 – Gasket Kit
• S41316024 – Piston Rings
• S41317005 – Piston Pin

Vehicle Fitments

• Honda CRE F R 450 cc (2005-2007)
• Honda CRE Motard 450 cc (2002-2010)
• Honda CRF R 450 cc (2002-2008)
• Honda CRM F R 450 cc (2005-2007)
