CYLINDER FULL KIT 88MM KTM EXC-F 350 14-15, ATHENA P400270100019 STD BORE, (Piston included)

ATHENA Standard Bore Cylinder Kit Ø 88 mm, 350 cc – P400270100019 (Includes Piston)

Description

Athena has been constantly investing in cylinder aftermarket replacement parts for more than ten years, to improve their production and performance.

All the cylinders are entirely engineered in Italy by Athena’s R&D Department which has a strong internal know-how and cutting-edge tools to design and test each piece. They are coated with motor-nicksil, a nickel-silicon coating developed by Athena to obtain smoothness and optimal wear resistance.

Athena’s cylinder kits and its components are recognized worldwide for their performance, durability and reliability.

The Standard Bore cylinder kit developed by Athena guarantees the same performance as the original spare parts, extreme reliability and optimal smoothness as a result of the lightweight aluminum cylinder, the barrel with nickel-silicon coating, and a piston designed to reduce further friction.

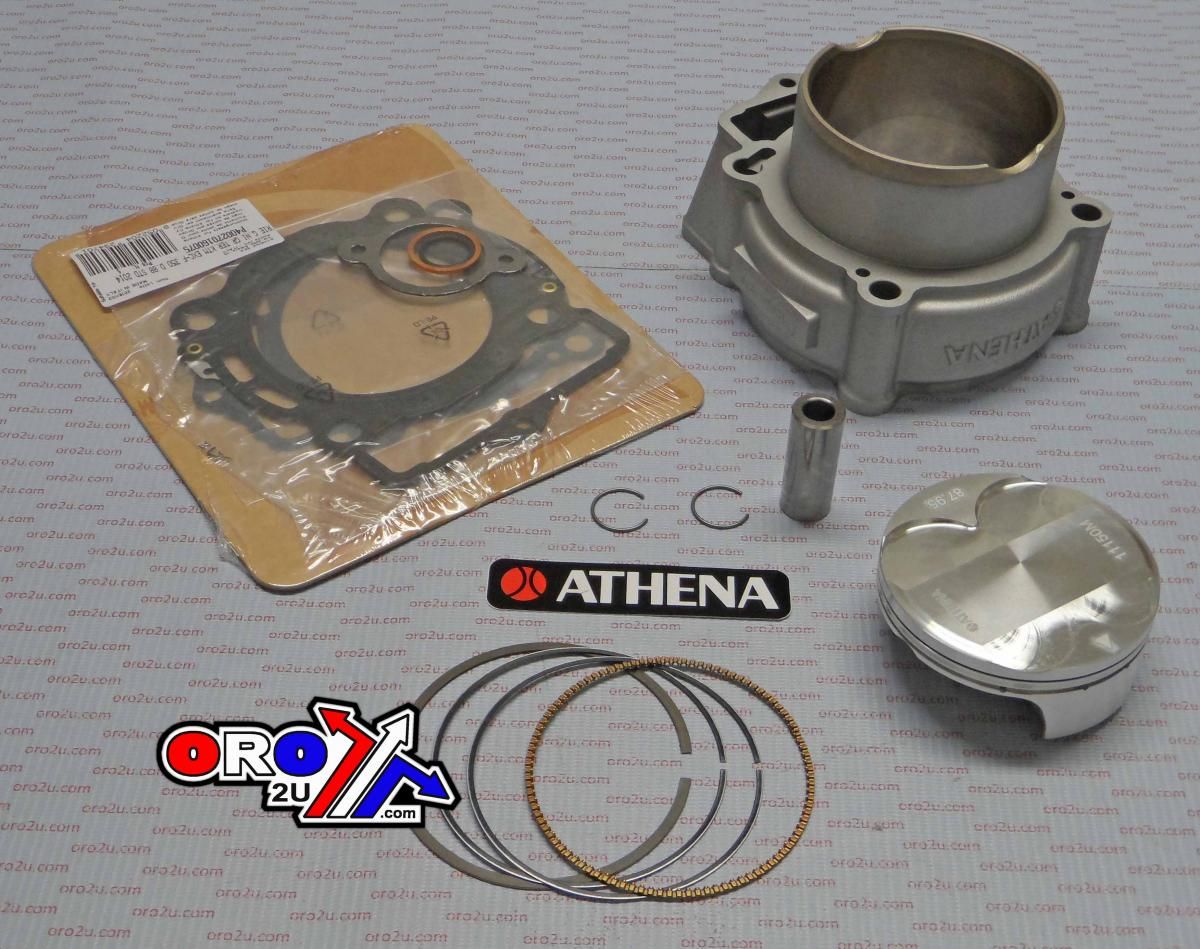

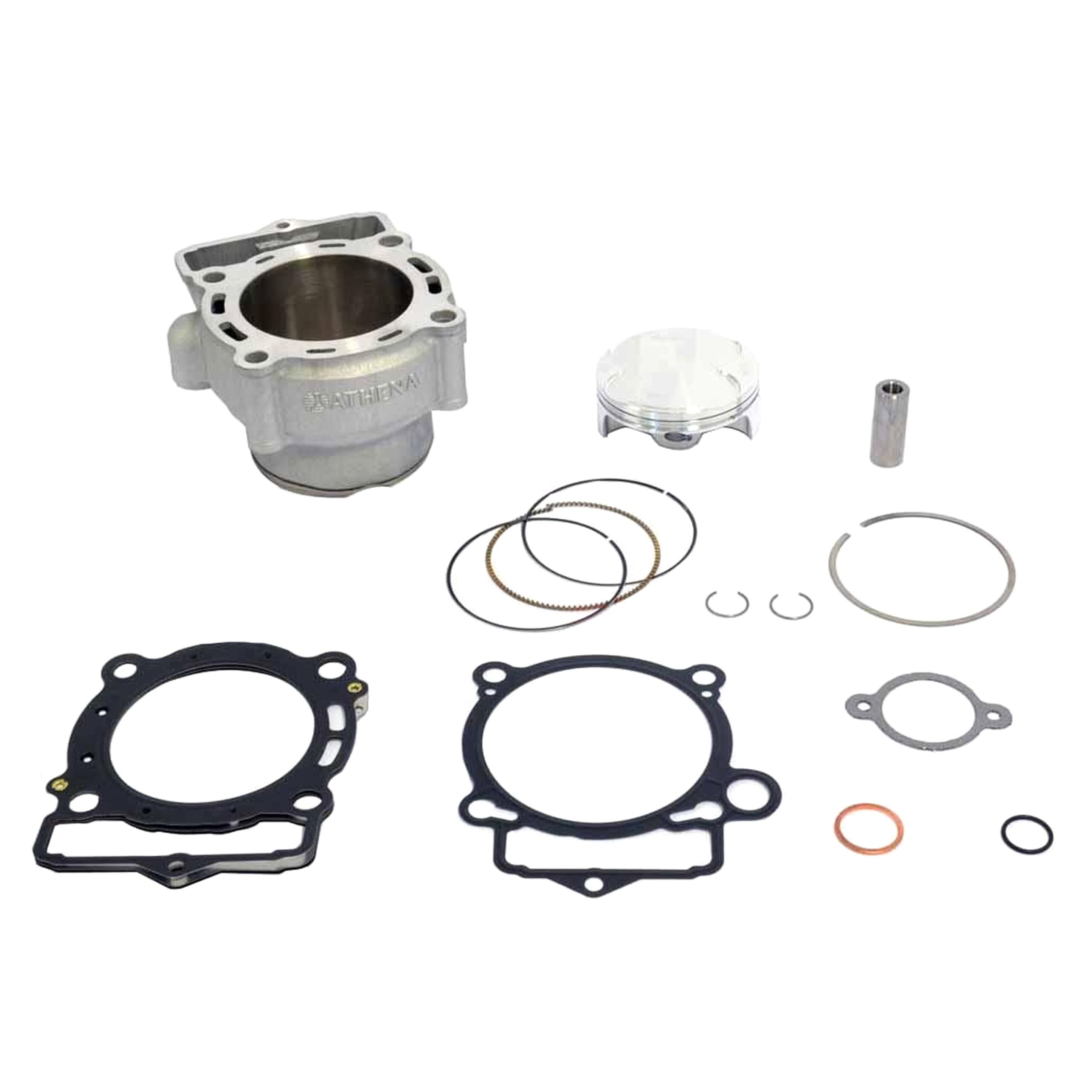

The kit includes the high-quality aluminum cylinder with standard bore, the complete piston with the piston pin and rings, and all the necessary gaskets.

All the components of the kit have been developed to withstand the highest temperatures, pressures and stresses and have been validated by Athena technicians with severe bench and road tests.

This cylinder kit can be installed without making any changes to the engine crankcase.

CAUTION! All Athena products must be used in compliance with the specific national regulations of the member state where it is being marketed or sold. Athena declines all responsibility for any improper use.

Technical features

• Bore Diameter (mm) 88.00
• Compression Ratio 12.4:1
• Displacement (cc) 350
• Net Weight (Kg) 1.77

Partner Cross Reference code and Optional Parts

• S4F08800004A Piston Kit 87,95
• S4F08800004B Piston Kit 87,96
• P400270160075 Gaskets Kit
• S41316223 Rings



Vehicle compatibility

• HUSQVARNA FE Ktm engine 350 cc 2014/2015
• KTM EXC-F 350 cc 2014/2015

Part No. 56-K184.88.CKA (oro2u.com)
