CYLINDER FULL KIT 68MM YAMAHA YFZ 350 87-06, ATHENA P400485100024 392CC BIG BORE, (Pistons included)

ATHENA Big Bore Cylinder Kit Ø 68 mm, 392 cc – P400485100024 (Includes Pistons)

Description

Athena has been constantly investing in cylinder aftermarket replacement parts for more than ten years, to improve their production and performance. All the cylinders are entirely engineered in Italy by Athena’s R&D Department which has a strong internal know-how and cutting-edge tools to design and test each piece. They are coated with motor-nicksil, a nickel-silicon coating developed by Athena to obtain smoothness and optimal wear resistance.

Athena’s cylinder kits and its components are recognized worldwide for their performance, durability and reliability.

Athena’s Big Bore Cylinder Kits guarantees an increase in performance that can be observed along the power curve, keeping the reliability at the same level of the original components.

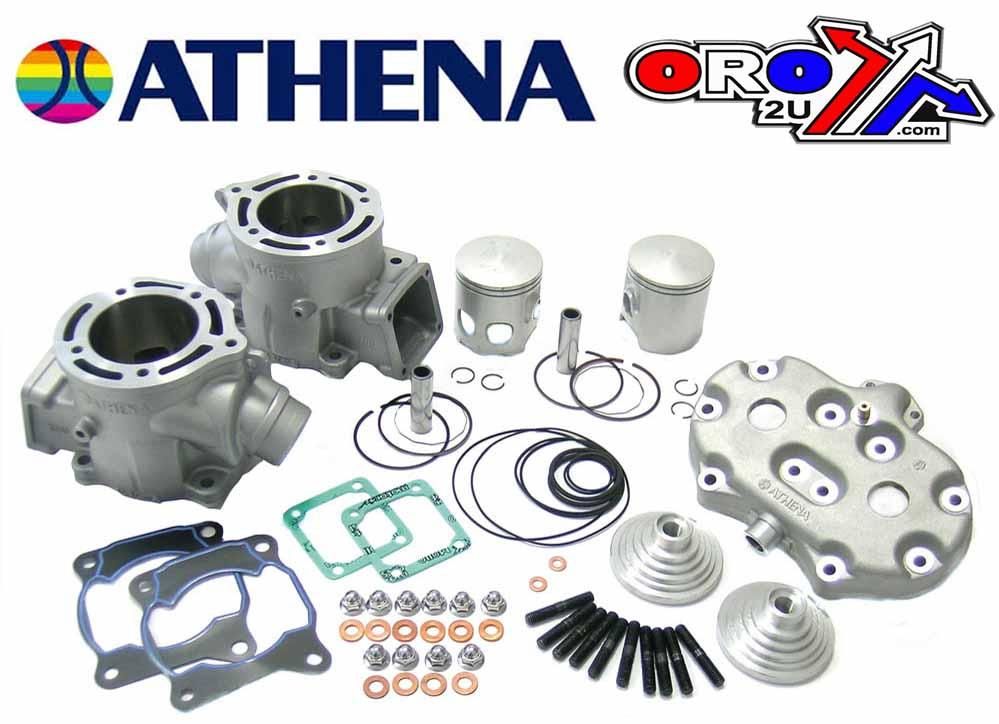

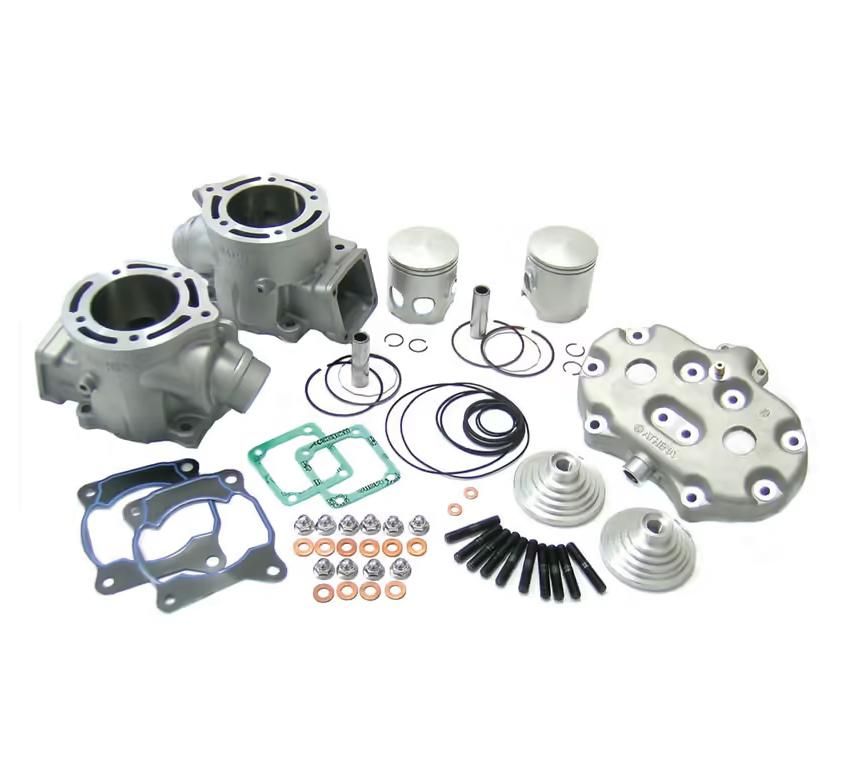

The kit includes two high-quality aluminum cylinders with increased bore and galvanic coating, cylinder head with two interchangeable central domes, the complete piston with the piston pin and rings, and all the necessary gaskets.

All the components of the kit have been developed to withstand the highest temperatures, pressures and stresses and have been validated by Athena technicians with severe bench and road tests.

This cylinder kit can be installed without making any changes to the engine crankcase.

CAUTION! All Athena products must be used in compliance with the specific national regulations of the member state where it is being marketed or sold. Athena declines all responsibility for any improper use.

Technical features

• Bore Diameter (mm) 68.00
• Compression Ratio 11.9:1
• Displacement (cc) 392
• Net Weight (Kg) 1.23

Partner Cross Reference code and Optional Parts

• S4C06800001A Piston Kit 67,95
• S4C06800001B Piston Kit 67,96
• S4C06800001C Piston Kit 67,97
• P400485160021 Gaskets Kit
• S410485308012 Cylinder Head
• S410485308017 Central Head Dome
• S41316152 Rings



Vehicle compatibility

• YAMAHA YFZ-BANSHEE 350 cc 1987/2006



Part No. 56-K173.68.CKA (oro2u.com)
