CYLINDER FULL KIT 54MM KAWASAKI KX125 03-07, ATHENA P400250100001 STD BORE, (piston included)

ATHENA Standard Bore Cylinder Kit Ø 54 mm, 125 cc – P400250100001 (Includes Piston)

Description

Athena has been constantly investing in cylinder aftermarket replacement parts for more than ten years, to improve their production and performance.

All the cylinders are entirely engineered in Italy by Athena’s R&D Department which has a strong internal know-how and cutting-edge tools to design and test each piece. They are coated with motor-nicksil, a nickel-silicon coating developed by Athena to obtain smoothness and optimal wear resistance.

Athena’s cylinder kits and its components are recognized worldwide for their performance, durability and reliability.

The Standard Bore cylinder kit developed by Athena guarantees the same performance as the original spare parts, extreme reliability and optimal smoothness as a result of the lightweight aluminum cylinder, the barrel with nickel-silicon coating, and a piston designed to reduce further friction.

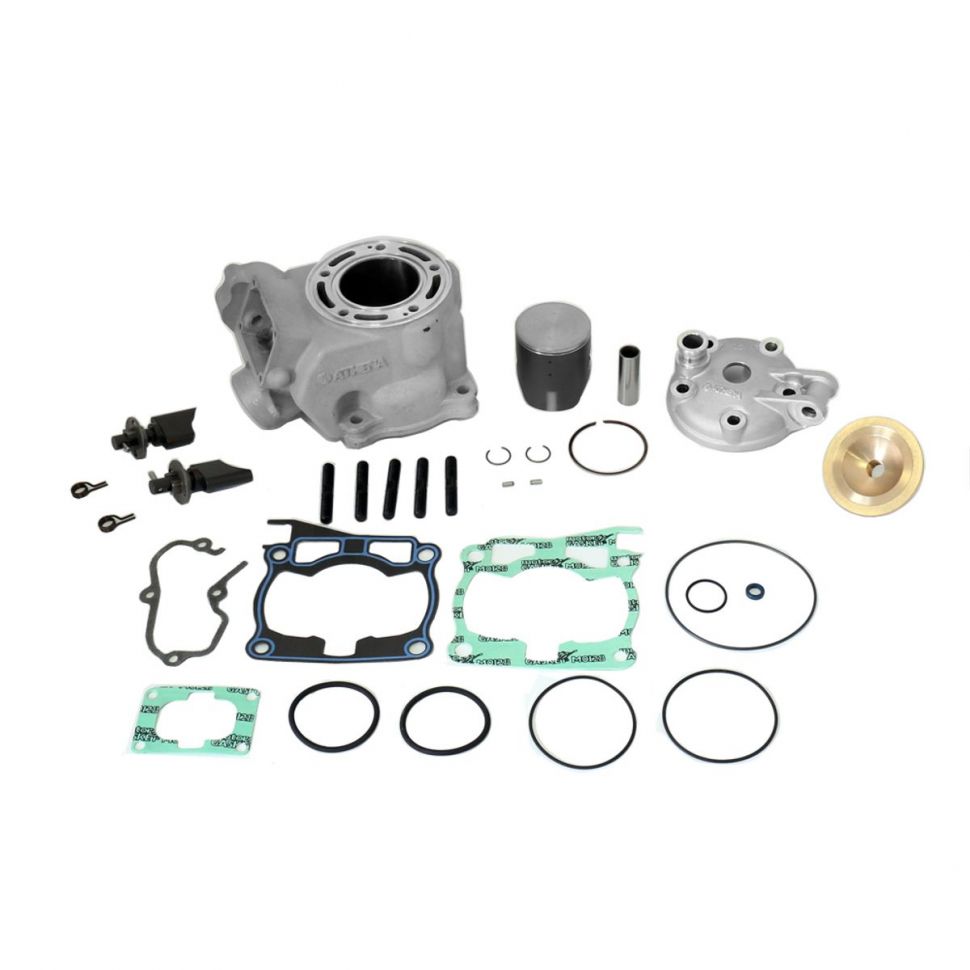

The kit includes the high-quality aluminum cylinder with standard bore, the cylinder head with interchangeable central dome , the complete piston with the piston pin and rings, and all the necessary gaskets.

All the components of the kit have been developed to withstand the highest temperatures, pressures and stresses and have been validated by Athena technicians with severe bench and road tests.

This cylinder kit can be installed without making any changes to the engine crankcase.

CAUTION! All Athena products must be used in compliance with the specific national regulations of the member state where it is being marketed or sold. Athena declines all responsibility for any improper use.

Technical features

• Bore Diameter (mm) 54.00
• Compression Ratio 14.8:1
• Displacement (cc) 125
• Net Weight (Kg) 1.60

Partner Cross Reference code and Optional Parts

• S410485308001 Cylinder Head
• S410485308002 Central Head Dome
• S410250303002 Valve Assy Kit
• S4C05400010A Piston Kit 53,94
• S4C05400010B Piston Kit 53,95
• S4C05400010C Piston Kit 53,96
• P400250160001 Gaskets Kit
• S41316130 Rings



Vehicle compatibility

• KAWASAKI KX 125 cc 2003/2007

Part No. 56-K122.54.K.A (oro2u.com)
