CV BOOT KIT KAWASAKI ATV FR.IN, ALLBALLS 19-5013 SIZE 17x54x84

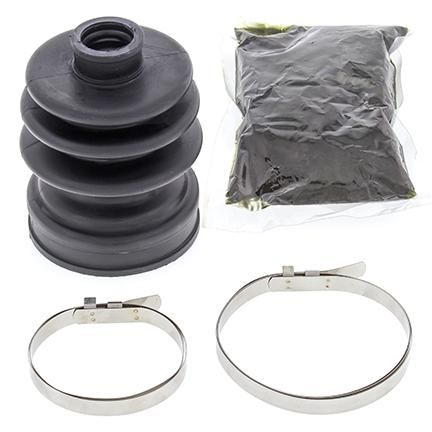

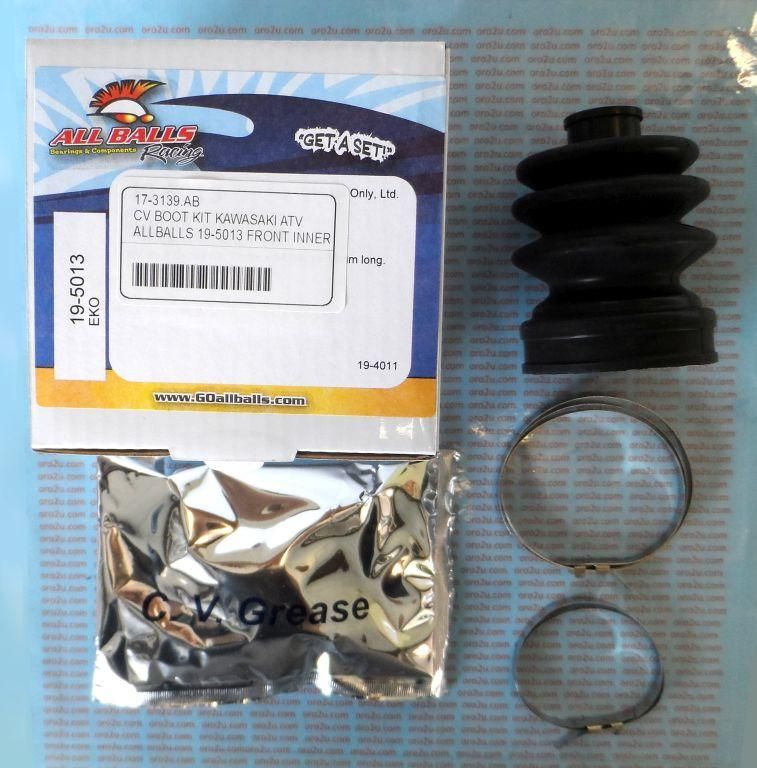

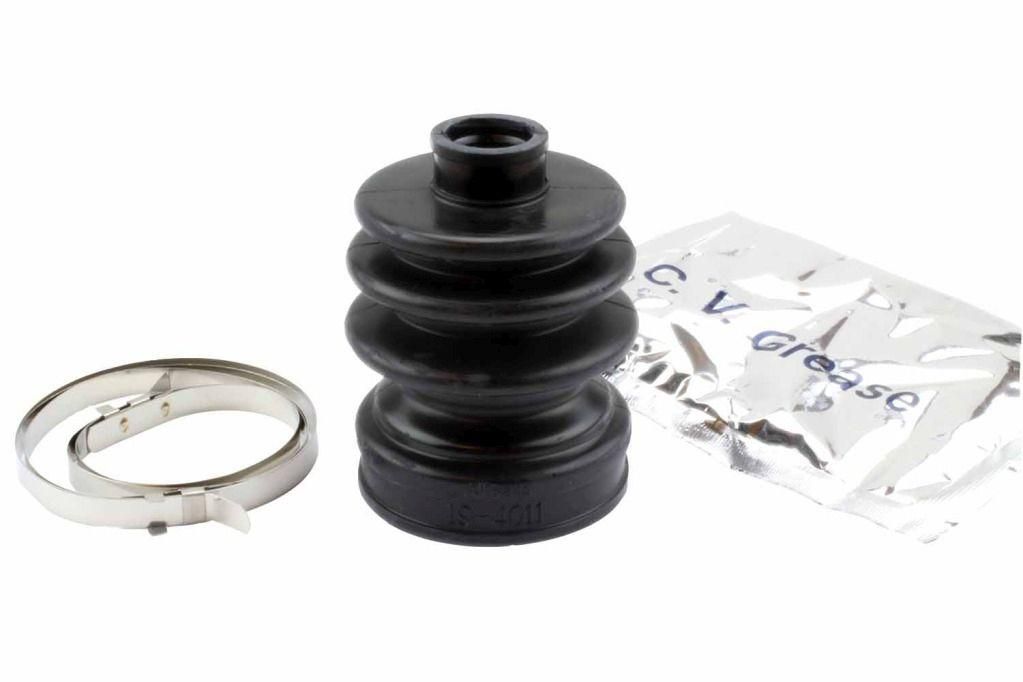

All Balls CV Boot Kit – Part No. 19-5013

Features:

• Grease Included: Molybdenum grease (Lithium-based) for increased CV joint life.
• Design: Engineered for high joint angles and modern ATV/UTV requirements.

Material Strength:

• Abrasion resistance increased by 50%.
• 40% higher tensile strength compared to conventional materials.
• Installation: Includes two stainless steel clamps; no special tools required.

Dimensions:

• Shaft ID: 17mm
• CV Body ID: 54.5mm
• Length: 84mm

Applications:

CV Boot Repair Kit – Front, Inner:

Honda:

• TRX420 FA IRS (2015-2018)
• TRX420 FA Solid Axle (2014-2016)
• TRX420 FE (2014-2016)
• TRX420 FM (2014-2016)
• TRX420 FPA Solid Axle (2014)
• TRX500FA (2015-2018)
• TRX500FE (2014-2018)
• TRX500FM IRS (2015-2018)
• TRX500FM Solid Axle (2014-2018)

Kawasaki:

• KVF360A Prairie 4×4 (2009-2013)
• KVF360C Prairie 4×4 (2009-2013)
• KVF650 Brute Force (2009-2013)
• KVF650 I Brute Force (2009-2013)
• KVF750 Brute Force (2012-2018)
• KVF750 Brute Force EPS (2012-2018)
• Mule 2510 Diesel (2001-2002)
• Mule 4010 4×4 (2009-2018)
• Mule 4010 4×4 Diesel (2009-2013)
• Mule 610 4×4 (2010-2016)
• Mule 610 4×4 VIN JK1AFEA1 9B547192 and above (2009)
• MULE SX (2017-2018)

Part No.: 17-3139.AB (Available at oro2u.com)

Size: Approx. 17mm x 54.5mm x 84mm
