CRANKSHAFT BOTTOM KIT 03-25 YZ250, WISECO WPC134 FULL ASSEMBLY

Fantic
XX 250 2022-2023

Yamaha
YZ 250 2003-2025,
YZ 250X 2016-2025

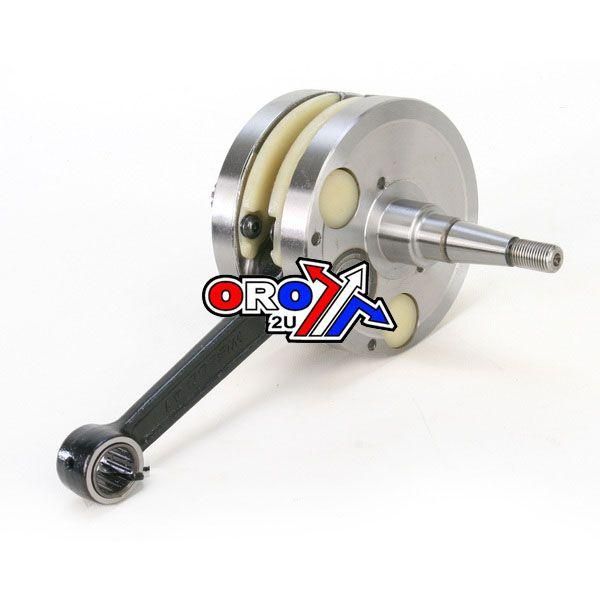

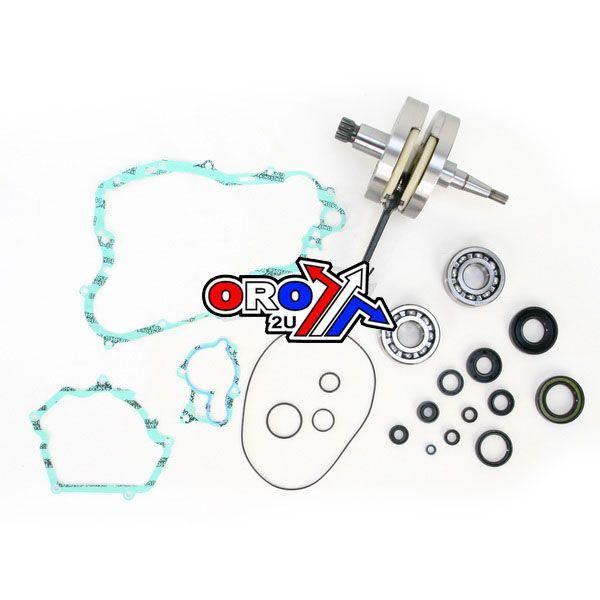

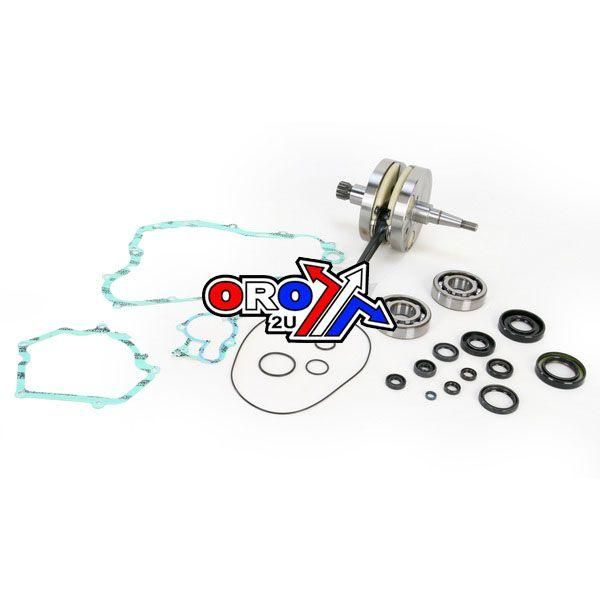

Wiseco Crankshaft w/Bearings and Gaskets – WPC134,

Precision-trued to OEM specifications and factory assembled Connecting rods are double-forged to maintain superior dimensional consistency through improved grain flow Shot-peening eliminates residual stresses and smoothly blends the rod forging surfaces Corrosion-resistant surface treatment Top and bottom end rod bores case hardened to 58-62 RC to optimize bearing running surface Crank pin bearing radial running clearance is optimized to ensure maximum performance Precision honing ensures ultra-round bearing surface Precision-engineered oiling slots maximize rod strength and bearing life Double-drilled small ends provide the piston pin with extra lubrication and cooling, reducing distortion of top end due to thermal transfer from the piston Silver-coated bronze phosphor thrust washers with dimpled design increase oil retention and reduce friction between rod and washer interface Crank pin bearings are manufactured with the highest-quality hot-rolled steel — case hardened to 58-62 RC

Part No. 56-186.WI (oro2u.com)
