CONNECTING ROD YFM450 GRIZZLY, BRONCO AT-09249 KODIAK RHINO

Bronco Heavy-Duty Connecting Rod Rebuild Kit – AT-09249

This heavy-duty connecting rod rebuild kit is a robust OE replacement designed for strength and longevity. Manufactured from certified chrome alloy steel (SNCM220) and case-hardened for durability, it includes all necessary components for a complete rebuild. It is fully compatible with both aftermarket and OE crankshafts.

Features:

• Made from certified chrome alloy steel for superior strength.
• Crankpins manufactured from hot-rolled ASTM steel and case-hardened.
• Utilizes advanced caged needle roller bearing designs for high RPM durability.
• Thrust washers are silver-coated bronze phosphor for added durability.

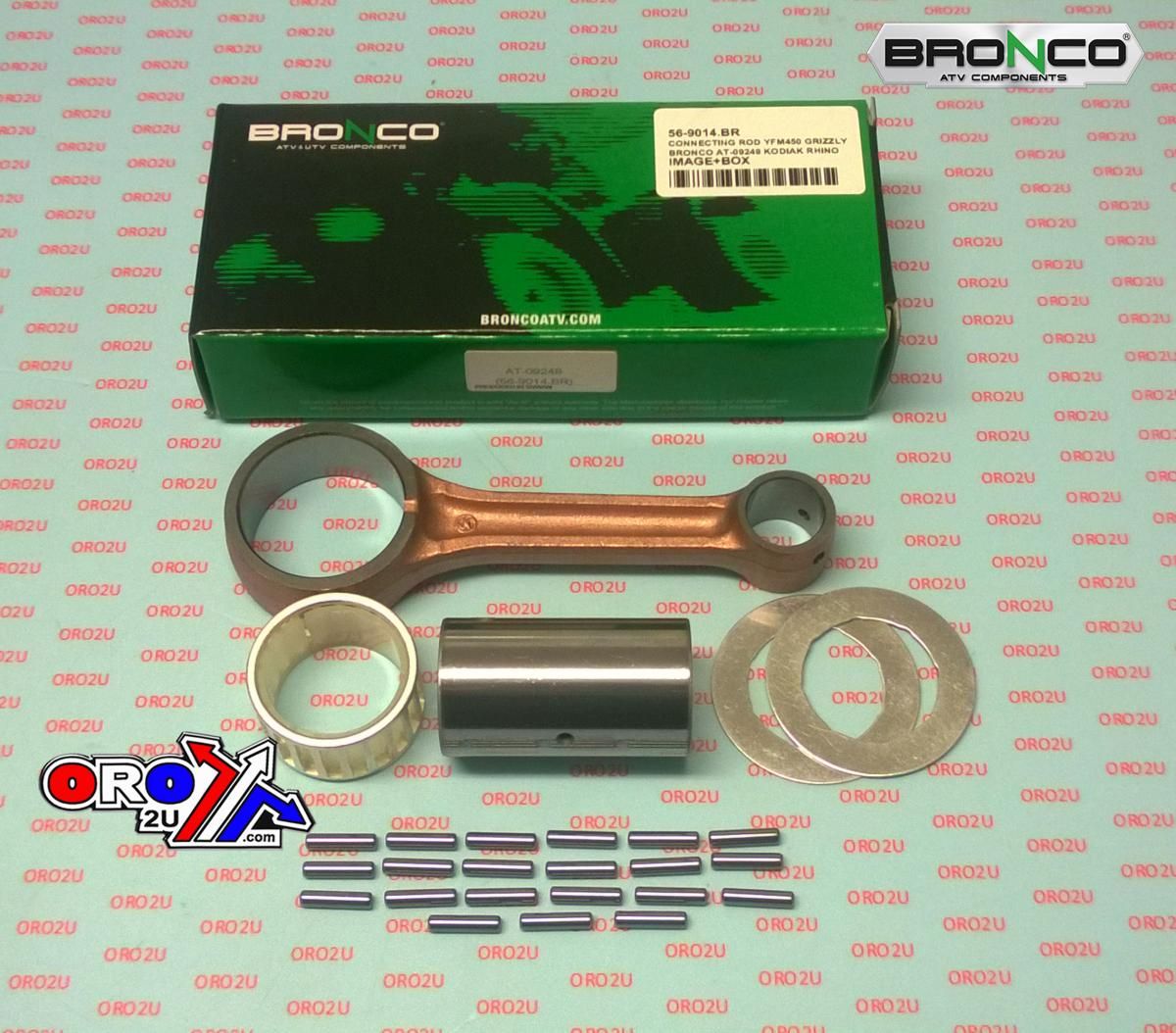

• Complete kit includes rod, crankpin, crankpin bearing, top-end bearing, and thrust washers (if needed).
• Fully compatible with OE and aftermarket crankshafts.

Specifications:

• Material: SNCM220 (Certified Chrome Alloy Steel)

Dimensions:

• Centre to Centre: 121.50 mm
• Small End Bore Ø: 20 mm
• Small End Width: 22 mm
• Big End Bearing: 35x43x22 mm
• Big End Bore Ø: 43 mm
• Big End Width: 22 mm
• Big End Pin Ø: 35 mm
• Big End Pin Length: 62.00 mm
• Washer Thickness: 35x54x1 mm

Cross-Reference OEM Part Numbers:

• YAMAHA: 5GH-11651-01-00, 5GH-11651-01, 5GH-11681-00, 90201
• HOTRODS: 8703

Vehicle Fitments:

Yamaha ATV:

• YFM400 Grizzly: 2007–2008
• YFM400 Kodiak 2WD/4WD: 2000–2004
• YFM400 Kodiak 4WD: 2005–2006
• YFM450 Grizzly: 2007–2014
• YFM450 Kodiak: 2003–2006, 2018
• YFM450 Wolverine: 2006–2010

Yamaha UTV:

• YXR450 Rhino: 2006–2009

Part Number:

56-9014.BR
