CONNECTING ROD VILLERS 192, CONROD VILLERS 200 250cc BCO0504

VILLIERS 192cc / 200cc / 250cc,

BCO0504

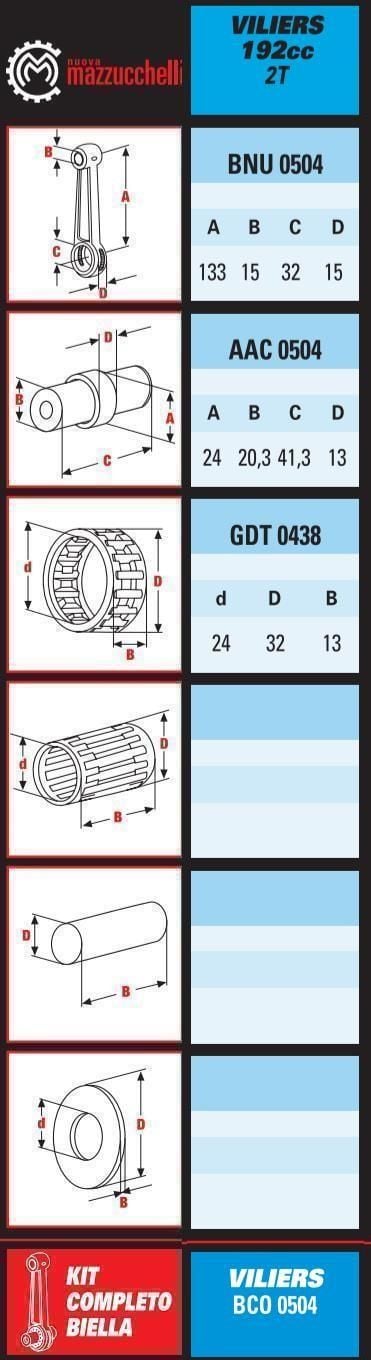

CONNECTING ROD SIZE PLEASE SEE DRAWING SIZE mm. A = 133, B = 15, C = 24.3, D = 13, E = 13, F = 41.30

Note, some 192 / 200 use big end pin 41.30mm

– Heavy-duty OE replacement connecting rods.
– Certified Chorme alloy steel provides superior strength.
– Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
– Dirt Racing Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
– Thrust washers are manufactured from bronze phosphor and are silver coated.

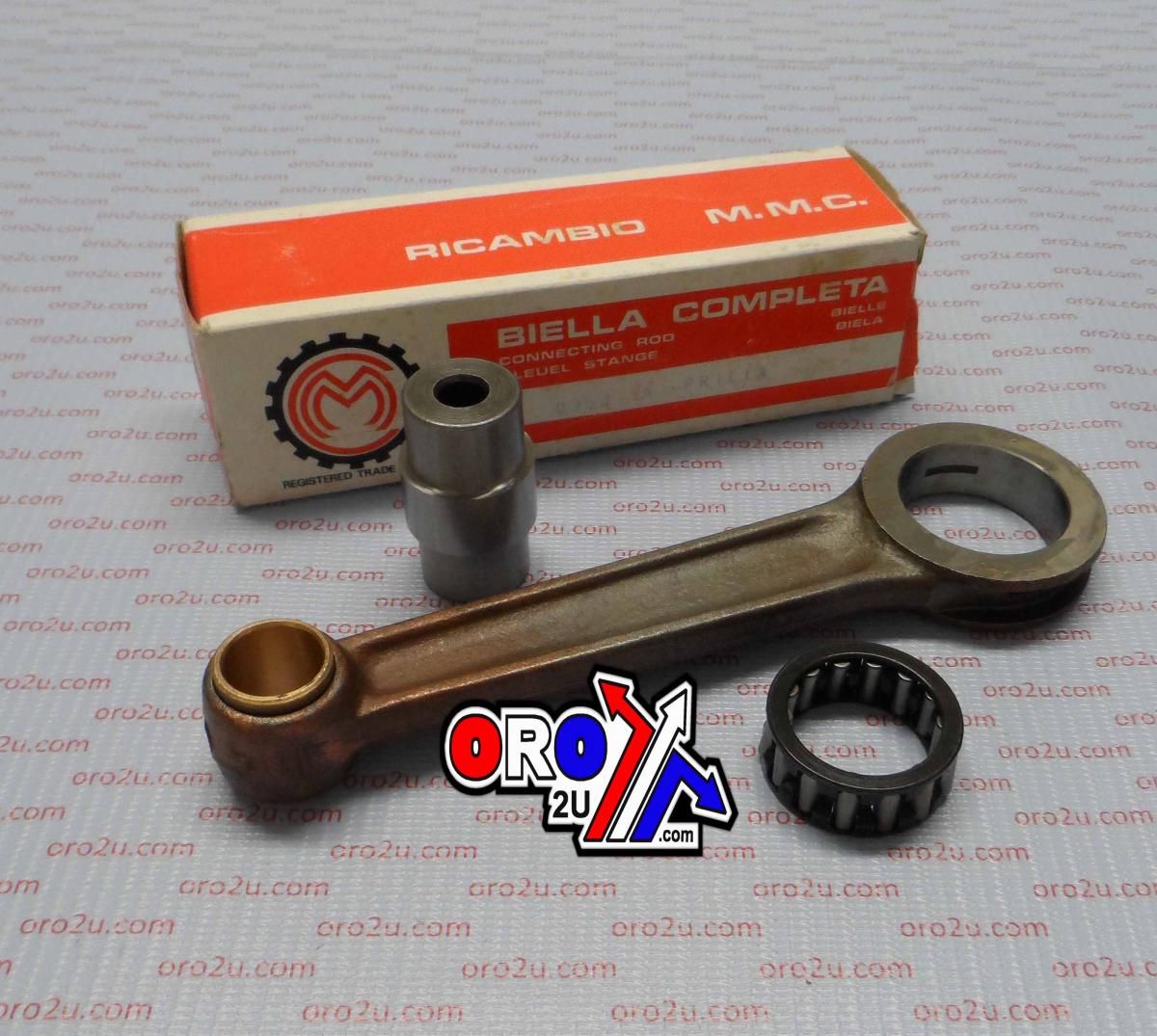

– Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
– Fully Compatible with after market and OE crankshafts.
– Material SNCM220,

CONNECTING ROD

Part No. 56-967 (oro2u.com)
