| Product Type | Connecting Rod |
|---|---|
| Product Group | Crankshafts & Parts |
| Catalogue | DIRT, ROAD |
CONNECTING ROD TS185 SUZUKI
SUZUKI
TS185 ALL.

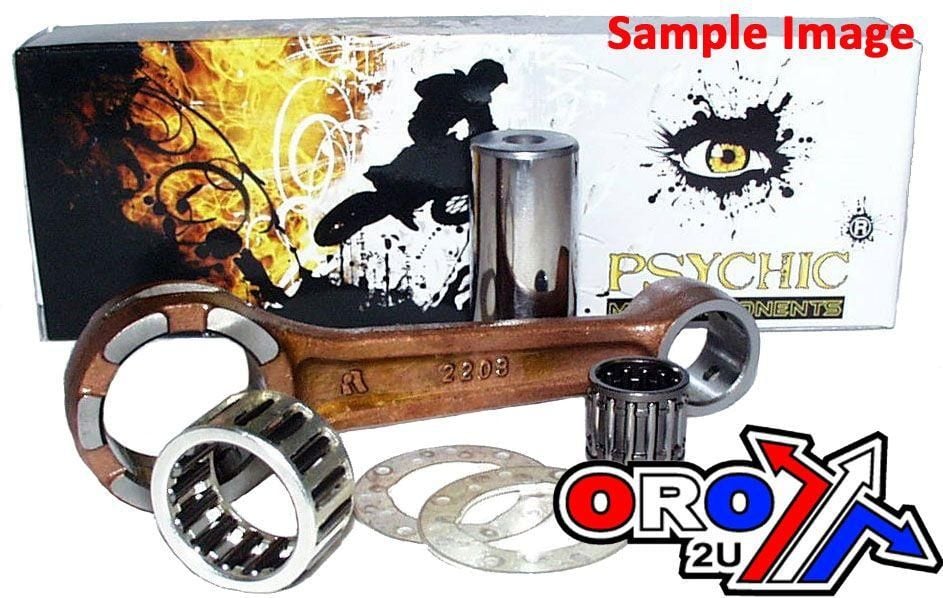

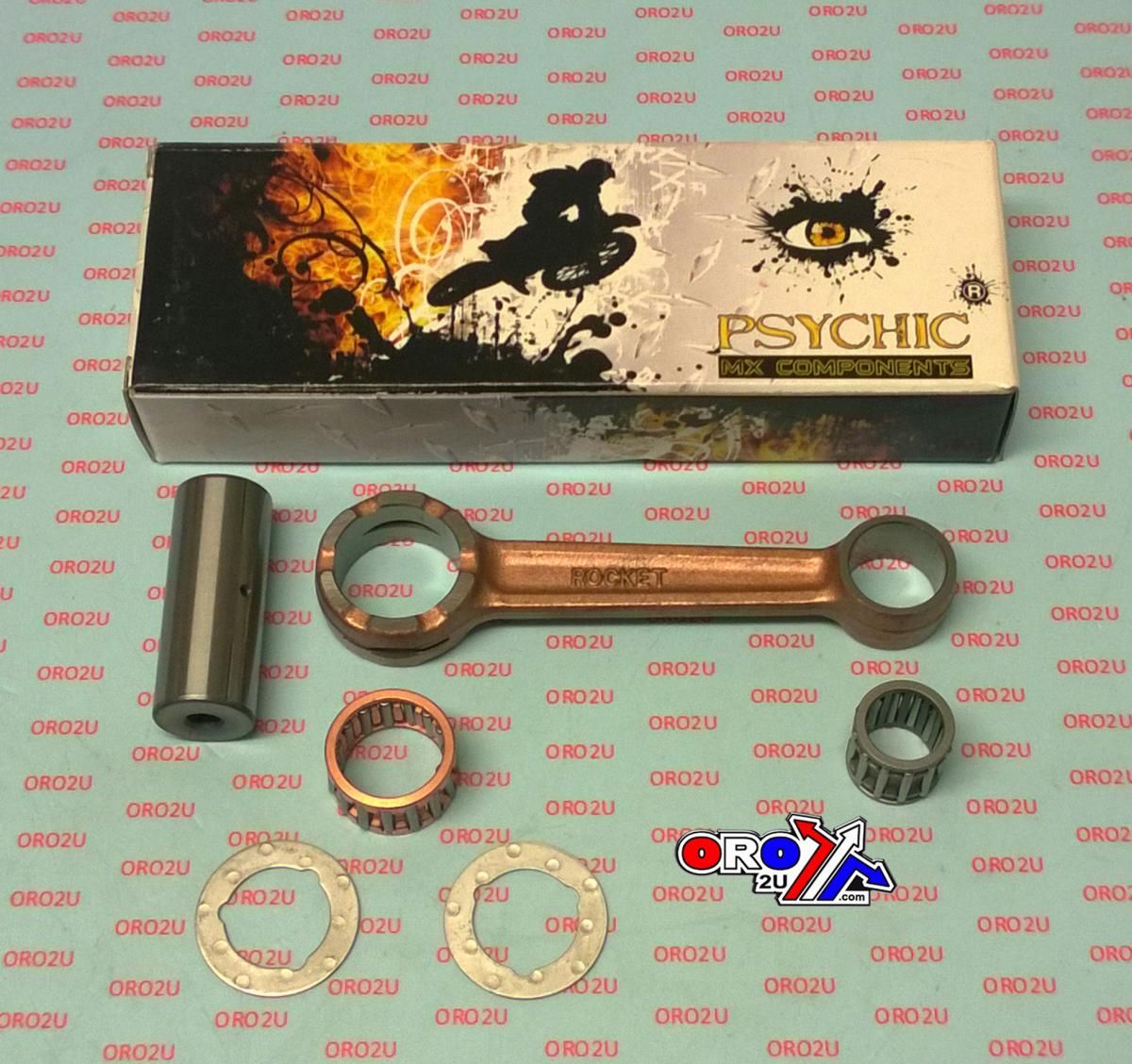

Connecting Conrod rod rebuild kit. PSYCHIC MC-09462
– Heavy-duty OE replacement connecting rods.
– Certified Chorme alloy steel provides superior strength.
– Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
– Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
– Thrust washers are manufactured from bronze phosphor and are silver coated.
– Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
– Fully Compatible with after market and OE crankshafts.
– Material SNCM220,
|
SIZE |
MM |
|
Centre 2 Centre |
110 |
|
Small End Bearing |
16x21x19.6 |
|
Small End Bore Ø |
21 |
|
Small End Width |
17 |
|
Big End Bearing |
22x28x16 |
|
Big End Bore Ø |
28 |
|
Big End Width |
17 |
|
Big End Pin Ø |
22 |
|
Big End Pin Length |
56 |
|
Washer Thickness |
22x39x1.00 |
OverAll Length 145mm
Part No. 56-895.DR (oro2u.com)
Cross reference numbers ONLY.
PROX 03.3018, CRK054, 0637165,
SMALL END BEARING16X21X19.6BR 09263-16015
CONECTING ROD 12161-41500
WASHER 09160-22010
PIN, CRANK 12211-29001
BIG END BEARING RN 22X28X16 09263-22032
