| Product Type | Connecting Rod |
|---|---|
| Product Group | Crankshafts & Parts |
| Catalogue | ATV, DIRT |
CONNECTING ROD TRX300 HONDA, BRONCO AT-09453
HONDA
TRX300EX Fourtrax 93-00,
TRX300EX Sportrax 01-08,
TRX300 4WD Fourtrax 88-00,
TRX300FW 4WD Fourtrax 88-95,
HONDA Dirt XR300R 2010,,

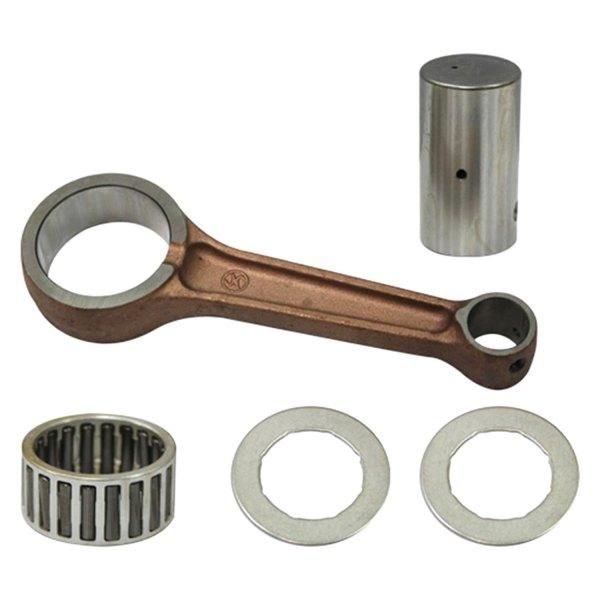

CONNECTING CONROD ROD REBUILD KIT. BRONCO AT-09453
– Heavy-duty OE replacement connecting rods.
– Certified Chorme alloy steel provides superior strength.
– Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
– Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
– Thrust washers are manufactured from bronze phosphor and are silver coated.
– Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
– Fully Compatible with after market and OE crankshafts.
– Material SNCM220,
Big End Bearing (mm): 33x41x20
Big End Bore (mm): 41
Big End Width (mm): 20
Center To Center (mm): 123
Pin Diameter (mm): 33.00
Pin Length (mm): 60.00
Small End Bearing (mm): NONE
Small End Bore (mm): 17.00
Small End Width (mm): 20.00
Part No. 56-145.DR (oro2u.com)
Cross reference numbers ONLY.
VESRAH VA-1010,
