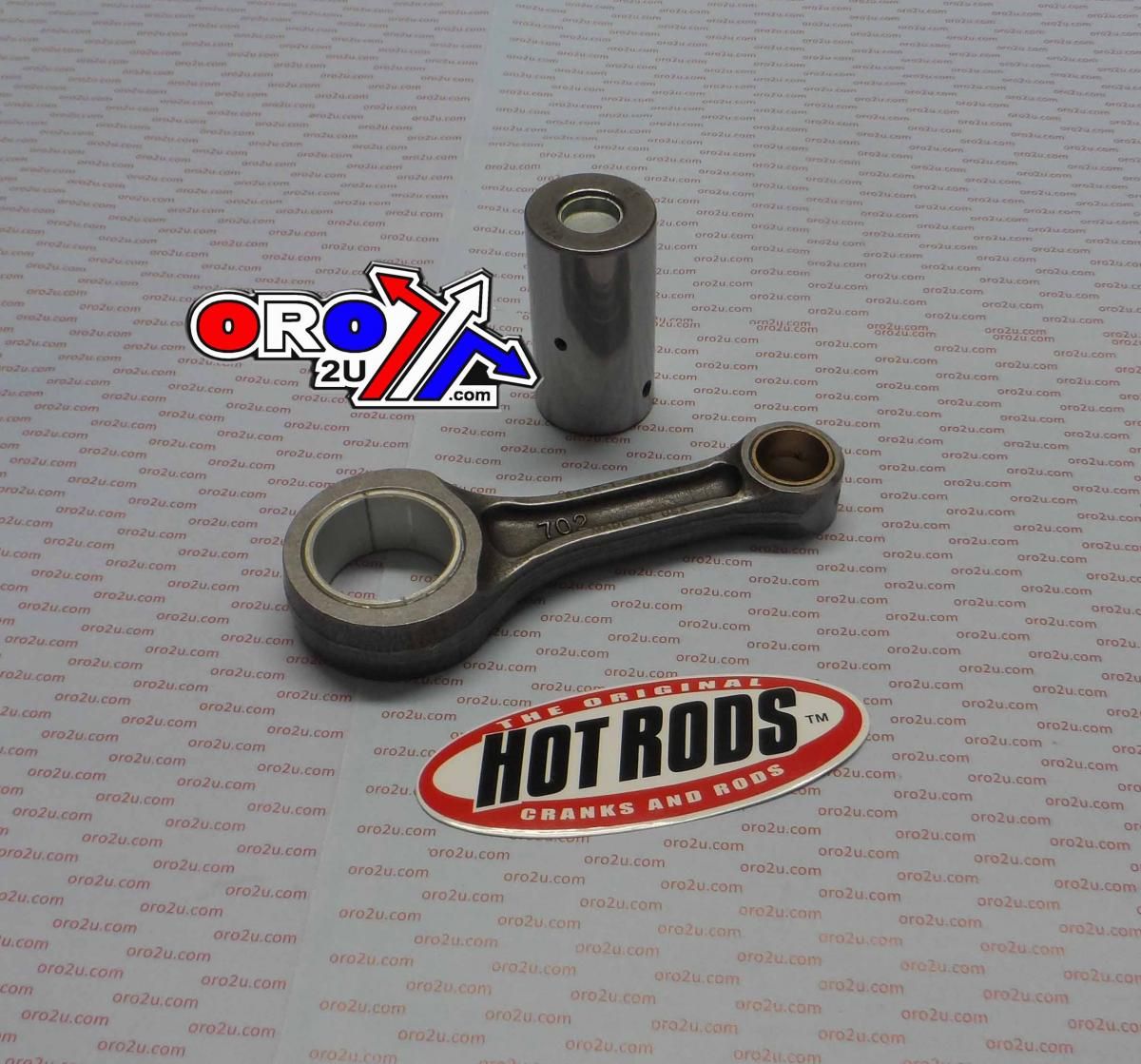

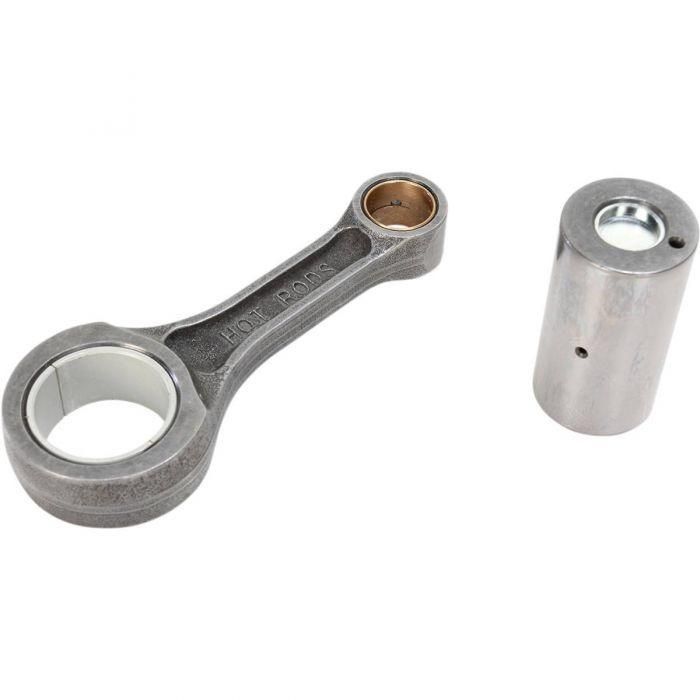

CONNECTING ROD SX-F350 KTM, HOT RODS 8702 77830015144

Heavy-duty connecting rod kit designed for KTM 350 SX-F and KTM 350 XC-F (2013-2015) models. This high-performance OE replacement kit ensures durability and strength, ideal for demanding applications. It includes all necessary components for a complete rebuild.

Features:

• Manufactured from certified 8620 AISI steel for superior strength.
• Uniquely designed big end with side scalloping and vent slots reduces high-RPM bearing race distortion.
• Crankpins made from hot-rolled ASTM 4115 steel and case-hardened to 58-62 Rc.
• Caged needle roller bearing design enhances longevity at high RPM.
• Thrust washers are silver-coated and crafted from bronze phosphor for added durability.
• Complete rod assembly includes rod, crankpin, crankpin bearing, top-end bearing, and thrust washers.
• Fully compatible with Hot Rods and OE crankshafts.
• Made in the USA.

Technical Specifications:

• Centre to Centre: 102.00 mm
• Big End Bore: 35.99 mm
• Pin Diameter: 32.00 mm
• Pin Length: 60.00 mm
• Small End Bore: 18.00 mm

Cross-Reference OEM Part Numbers:
KTM: 77830015144

Vehicle Fitment:

• KTM 350 SX-F: 2013, 2014, 2015.
• KTM 350 XC-F: 2013, 2014, 2015.

Part Number: 56-946.HR
