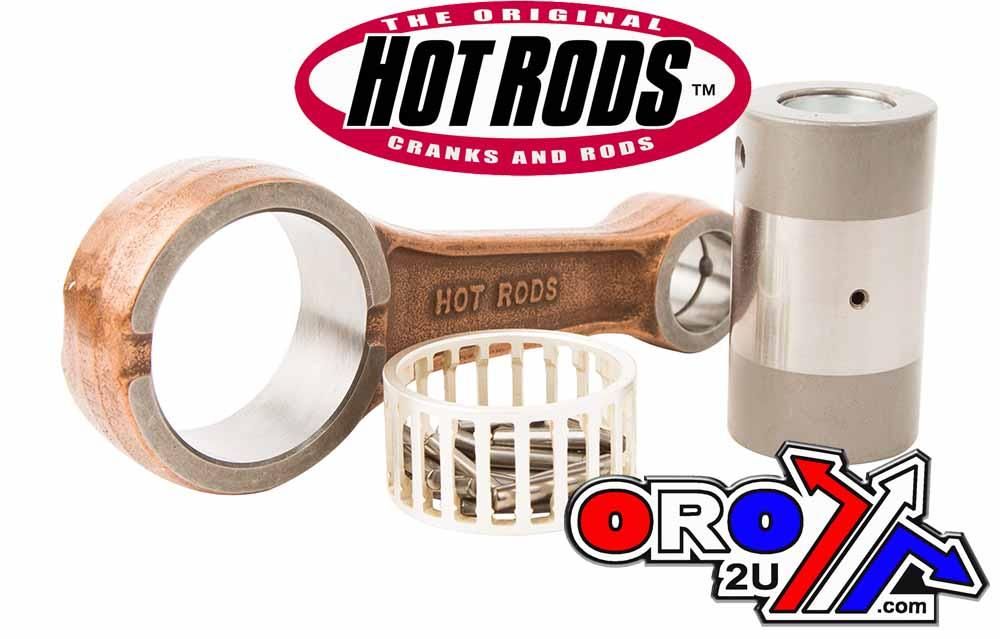

CONNECTING ROD LTZ400 KFX400, HOT RODS 8630 SUZUKI KAWASAKI

High-quality connecting rod kit designed for Arctic Cat, Kawasaki, and Suzuki models. Manufactured to meet or exceed OEM standards, ensuring durability, precision, and reliable performance.

Features:

• Includes rod, crank pin, crank pin bearing, top end bearing, and thrust washers for a complete rebuild solution.
• Manufactured from hot-rolled ASTM 4115 steel and case-hardened to 58–62 Rc for enhanced durability.
• Advanced design with strategically placed side scalloping and vent slots to reduce high RPM bearing race distortion.
• Double-forged rods provide improved grain flow and maintain dimensional consistency.
• Shot-peened and double-honed for superior strength under heavy loads.
• Double-drilled small ends enhance lubrication and cooling of the wrist pin bearing.
• Silver-coated thrust washers and crank pin bearings reduce friction and improve lubricity.

Cross-Reference OEM Part Numbers:

• Suzuki: 12160-29F01-0B0, 12160-29F02-0B0, 12160-29F10-0B0
• Kawasaki: 13032-S007, 13032-S010
• Arctic Cat: 3502-012

Vehicle Fitment:

Arctic Cat:

• DVX 400 (2004–2008, including Tony Stewart Edition models)

Kawasaki:

• KFX 400 (2003–2006)

Suzuki:

• DR-Z400 (2000–2018)
• DR-Z400SM (2000–2009)
• LT-Z400 QuadSport (2003–2018, including Limited and Special Editions)

Part Number: 56-137.HR
