CONNECTING ROD LT-A450 7-10, BRONCO AT-09251 12161-11H00

Connecting rod rebuild kit for Suzuki KingQuad models, including LT-A450X and LT-A500 variants, spanning years 2007 to 2017. This kit is engineered for reliability and high performance, constructed from certified chrome alloy steel for superior durability. Compatible with both aftermarket and OE crankshafts, it meets or exceeds original equipment standards.

Features:

• Heavy-duty OE replacement connecting rods.
• Certified chrome alloy steel for exceptional strength.
• Crankpins made from hot-rolled ASTM steel, case-hardened for longevity.
• Caged needle roller bearing design ensures durability under high RPM conditions.
• Thrust washers made from bronze phosphor and silver-coated for enhanced wear resistance.

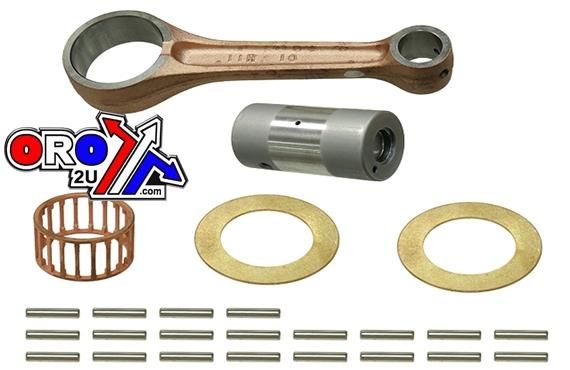

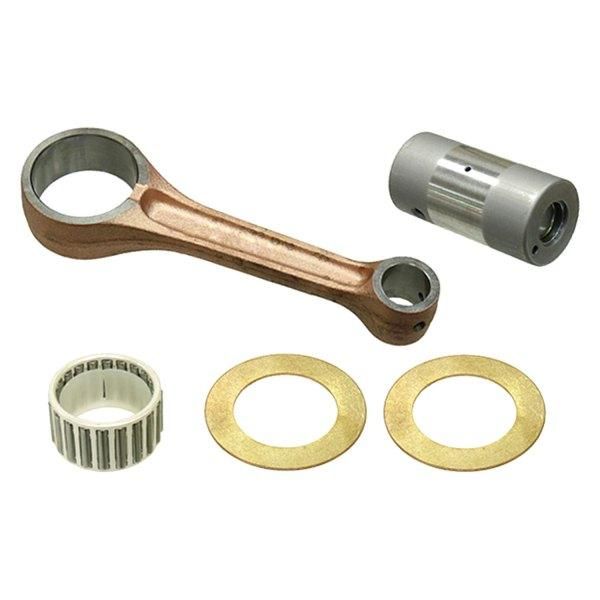

• Complete assembly includes rod, crankpin, crankpin bearing, top-end bearing, and thrust washers where applicable.
• Fully compatible with aftermarket and OE crankshafts.

Specifications:

Material: SNCM220
Centre-to-Centre Length: 141 mm
Small End Bearing: None
Small End Bore Ø: 20 mm
Small End Width: 25.00 mm
Big End Bearing Dimensions: 35 x 44 x 25 mm
Big End Bore Ø: 44 mm
Big End Width: 25.00 mm
Big End Pin Ø: 35 mm
Big End Pin Length: 71.00 mm
Washer Thickness: 35 x 55 x 1 mm

Cross-Reference OEM Part Numbers:

12161-11H00, 12210-11H00

Vehicle Compatibility:

• 2007-2010 Suzuki LT-A450X KingQuad AXi 4×4
• 2009-2017 Suzuki LT-A500X KingQuad
• 2011-2014 Suzuki LT-A500 KingQuad AXi
• 2011-2014 Suzuki LT-A500 KingQuad AXi Power Steering
• 2009 Suzuki LT-A500 KingQuad AXi Power Steering

Part Number: BRONCO AT-09251
