CONNECTING ROD KYMCO GY125 GY6 GY 6 125 13201-GY6-9000-1

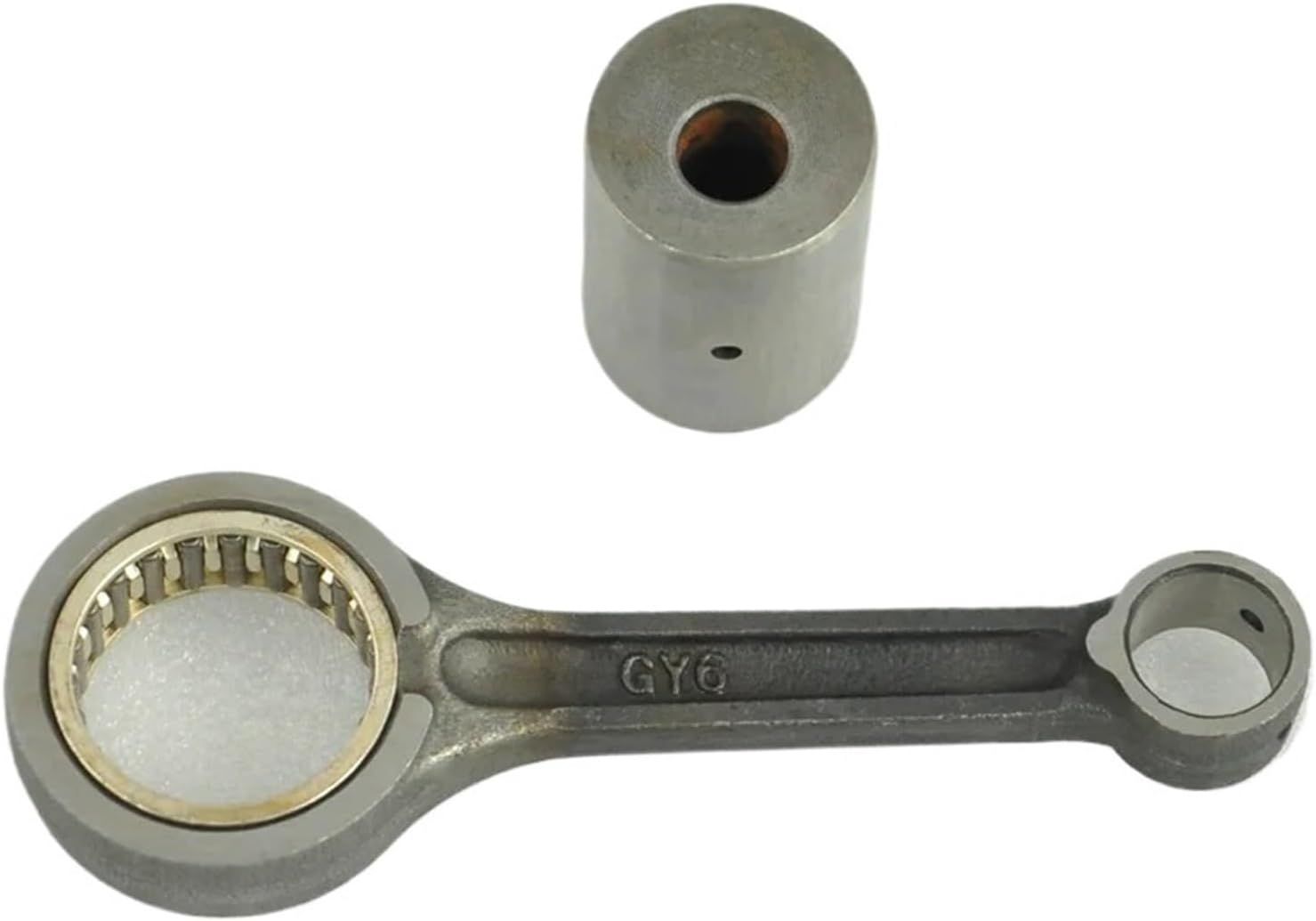

This connecting rod kit is designed for Kymco GY6-based engines, covering GY125 and 125/150 variants. It is engineered to OEM standards for dimensional accuracy and reliable operation, supplied with matching pin and big-end bearing to the sizes listed.
Features
- Constructed from high-grade materials for reliability and consistent performance
- Manufactured to exacting standards to support confident engine rebuilds
- Meets or exceeds OEM quality specifications
- Direct OEM replacement
- Check the reference image before ordering to avoid errors
- Cost-effective replacement option
- Straightforward installation; if unsure, use a professional
Specifications
- Big-end width: 14 mm
- Small-end width: 14 mm
- Big-end bore: 33 mm
- Small-end bore: 15 mm
- Centre-to-centre length: 93.5 mm
- Overall rod length: 124 mm
- Pin diameter: 28 mm
- Pin length: 39 mm
- Big-end bearing size: 28 × 33 × 14 mm
Cross-Reference OEM Part Numbers
-
13201-GY6-9000-1
