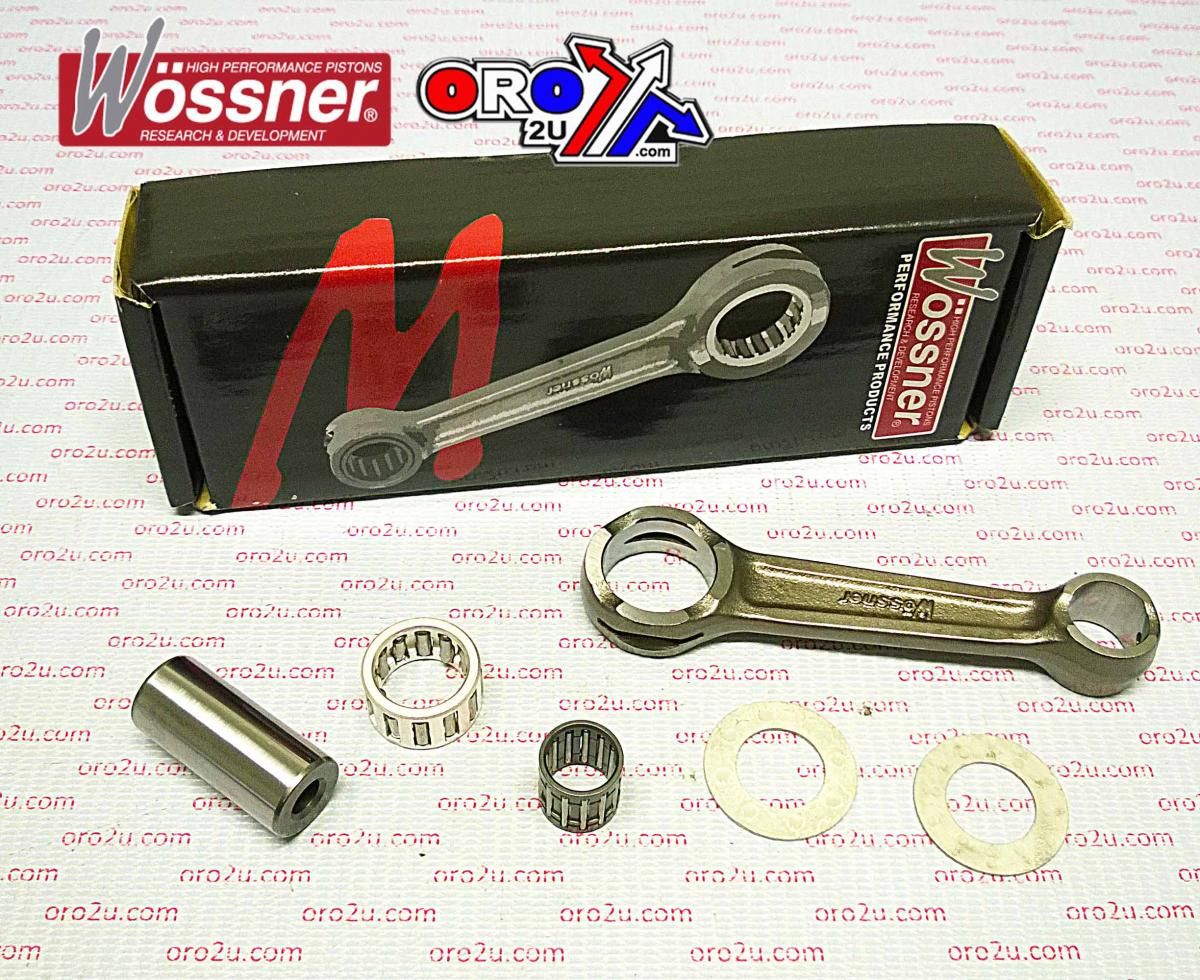

CONNECTING ROD KTM SX50 01-18, WOSSNER P2053 CONROD KIT

KTM
SX50 & LC 2001 – 2018,

CONNECTING ROD REBUILD KIT. WOSSNER P2053

Part No. 56-869.WO (oro2u.com)

Cross reference numbers ONLY.
MX-09075, HOTRODS 8135, 45230015000

2006 – 2015 KTM 50 SX, 2006 – 2008 KTM 50 SX JR, 2004 – 2005 KTM 50 SX PRO JR, 2004 – 2005 KTM 50 SX PRO SR,
Technical Specifications:
Big End Bearing (mm): 16x22x11.8

Big End Bore (mm): 22.00
Big End Width (mm): 11.80
Center To Center (mm): 85.00
Pin Diameter (mm): 16.00
Pin Length (mm): 36.00
