| Product Type | Connecting Rod |
|---|---|
| Product Group | Crankshafts & Parts |
| Catalogue | DIRT |

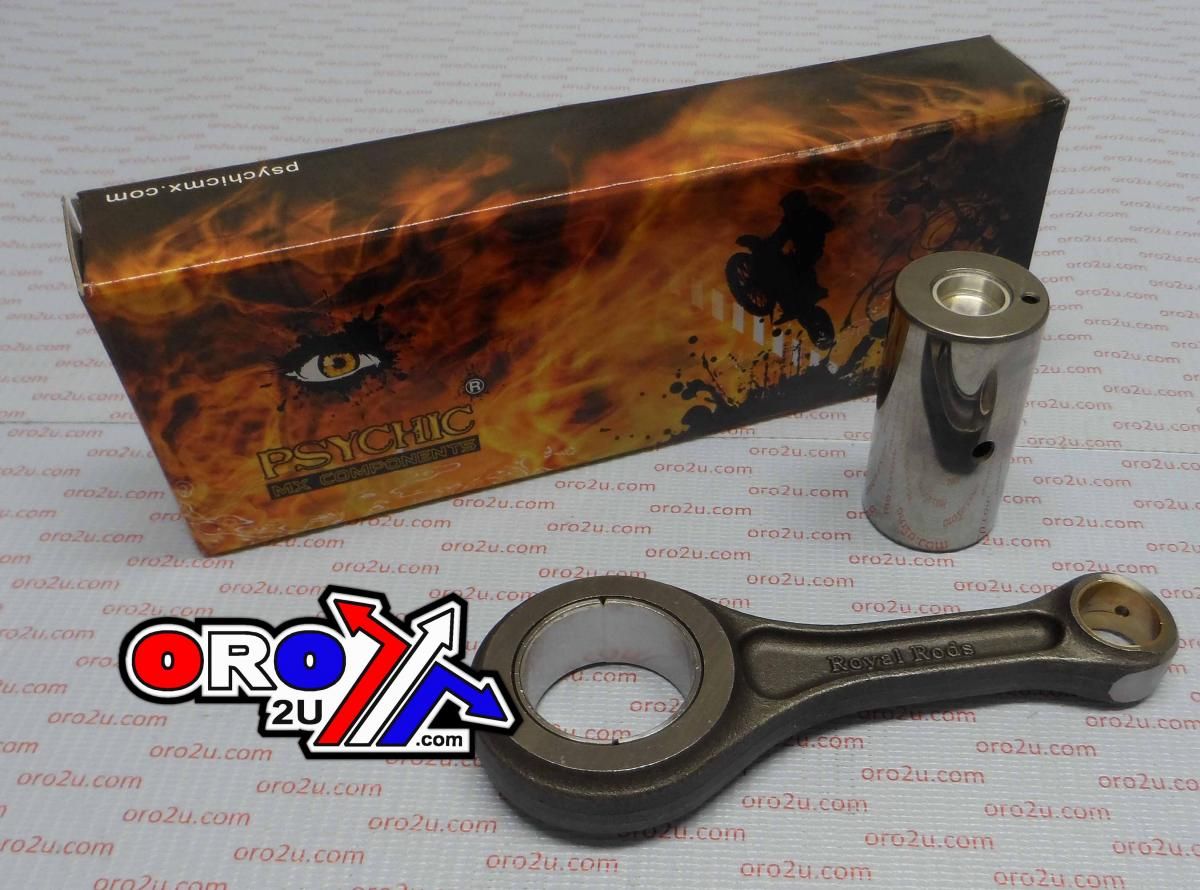

CONNECTING ROD KTM EXC-F350, PSYCHIC MX-09023, 77830015044
KTM
2013-2015 350 SX-F,
2014-2016 350 EXC-F,
2013-2015 350 XC-F,
2014-2016 350 XCF-W,
2015-2017 350 FREERIDE,
HUSQVARNA
2014-2016 FC 350,
2014-2016 FE 350,
CONNECTING CONROD ROD REBUILD KIT. PSYCHIC MX-09023
– Heavy-duty OE replacement connecting rods.
– Certified Chorme alloy steel provides superior strength.
– Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
– Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
– Thrust washers are manufactured from bronze phosphor and are silver coated.
– Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
– Fully Compatible with after market and OE crankshafts.
– Material SNCM220,
|
SIZE |
MM |
|
Centre 2 Centre |
102 |
|
Small End Bearing |
None |
|
Small End Bore Ø |
18 |
|
Small End Width |
17 |
|
Big End Bearing |
32 Shell |
|
Big End Bore Ø |
36 |
|
Big End Width |
20 |
|
Big End Pin Ø |
32 |
|
Big End Pin Length |
60 |
|
Washer Thickness |
None |
Part No. 56-957.DR (oro2u.com)
Cross reference numbers ONLY.
WOSSNER P4061, 77830015044, 778.30.015.044, HOTRODS 8710
