CONNECTING ROD KIT YFM660R 02-, BRONCO AT-09174-2
YAMAHA ATV
YFM660R RAPTOR 2002-2005,
YFM660 GRIZZLY 2002-2008,
YAMAHA UTV
YXR660 RHINO 2004-2007,

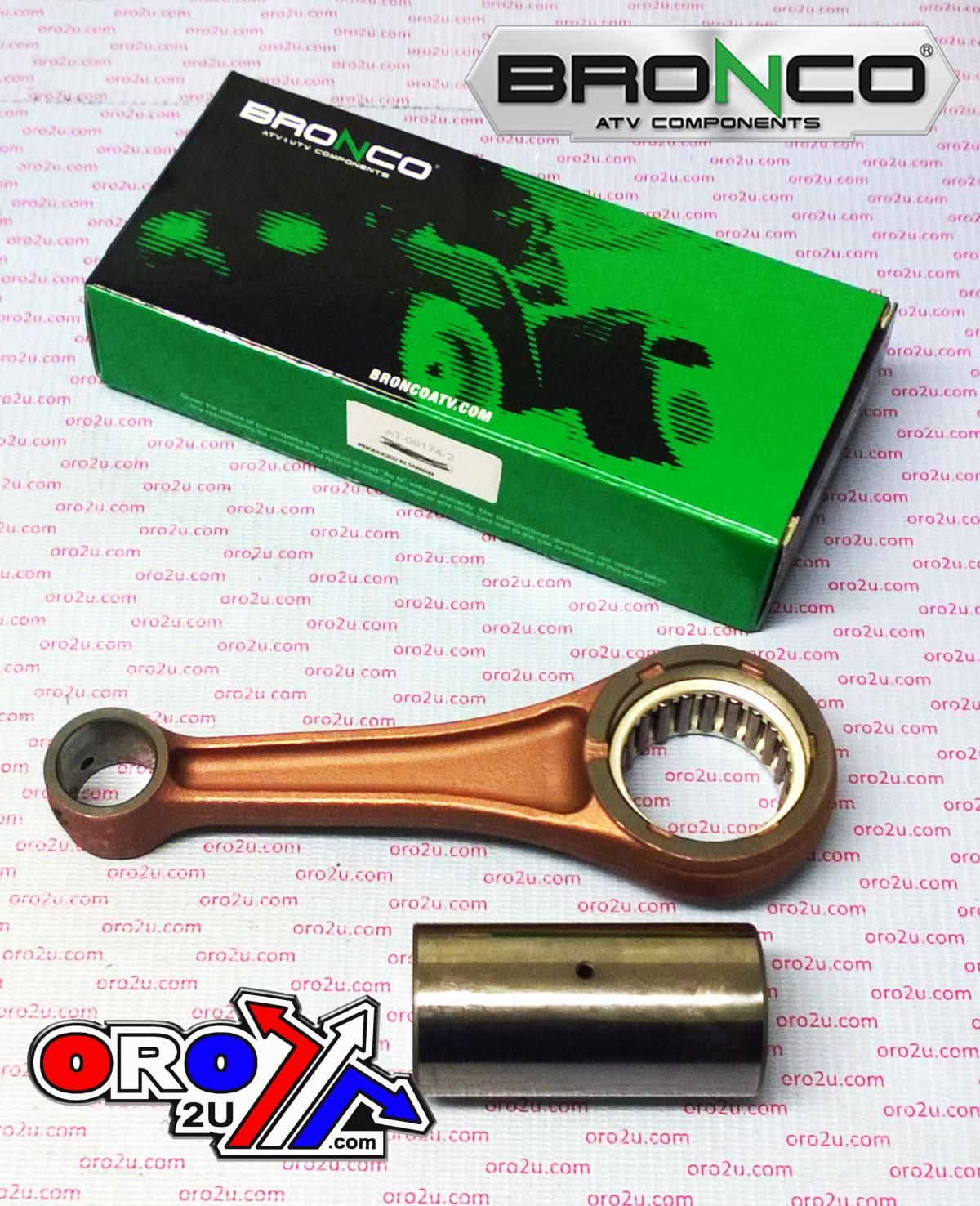

Connecting Rod Rebuild kit BRONCO AT-09174-2
– Heavy-duty OE replacement connecting rods.
– Certified Chorme alloy steel provides superior strength.
– Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
– Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
– Thrust washers are manufactured from bronze phosphor and are silver coated.

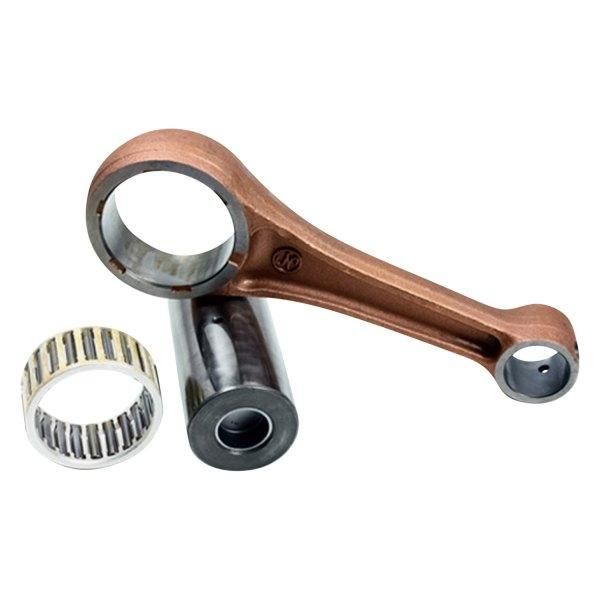

– Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
– Fully Compatible with after market and OE crankshafts.
– Material SNCM220,
| SIZE |
MM |
|
Centre 2 Centre |
136.50 |
|
Small End Bearing |
None |
|
Small End Bore Ø |
22 |
|
Small End Width |
22 |
|
Big End Bearing |
37x45x21.80 |
|
Big End Bore Ø |
45 |
|
Big End Width |
22 |
|
Big End Pin Ø |
37 |
|
Big End Pin Length |
73.90 |
|
Washer Thickness |
None |
CONNECTING ROD SIZE PLEASE SEE DRAWING SIZE mm. A = 136.5, B = 22, C = 37, D = 22, E = 22, F = 73.90mm
Big End Crank pin Lenght 73.90mm
Part No. 56-207.DR (oro2u.com)
Cross reference numbers ONLY.
5LP-11651-00-00,
