CONNECTING ROD KIT YFM660R 01, BRONCO AT-09174 PIN 73.80mm, PIN DIA 37mm – Length 73.80mm
£95.47
Brand: Namura Technologies
Stock: 7
| Product Type | Connecting Rod |
|---|---|
| Product Group | Crankshafts & Parts |
| Catalogue | ATV |
CONNECTING ROD KIT YFM660R 01, BRONCO AT-09174 PIN 73.80mm, PIN DIA 37mm – Length 73.80mm
YAMAHA ATV
2001 YFM660R Raptor,

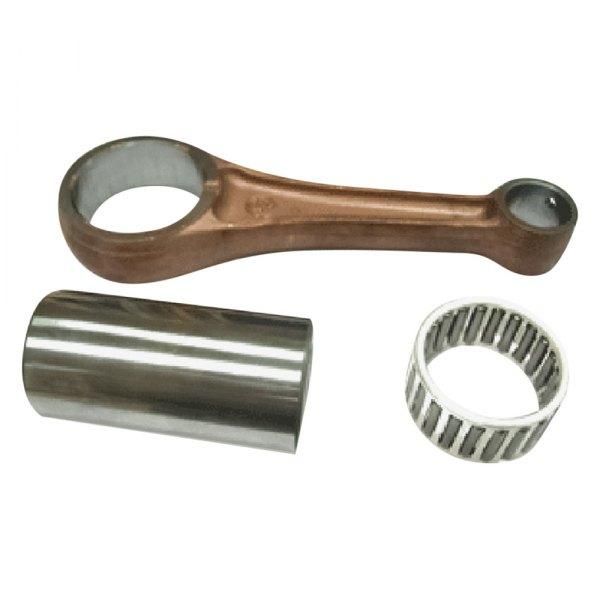

Connecting Rod Rebuild kit BRONCO AT-09174
– Heavy-duty OE replacement connecting rods.
– Certified Chorme alloy steel provides superior strength.
– Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
– Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
– Thrust washers are manufactured from bronze phosphor and are silver coated.
– Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
– Fully Compatible with after market and OE crankshafts.
– Material SNCM220,
SIZE
|
MM |
|
|
Centre 2 Centre |
136.50 |
|
Small End Bearing |
None |
|
Small End Bore Ø |
22 |
|
Small End Width |
22 |
|
Big End Bearing |
37x45x21.80 |
|
Big End Bore Ø |
45 |
|
Big End Width |
22 |
|
Big End Pin Ø |
37 |
|
Big End Pin Length |
73.80 |
|
Washer Thickness |
None |

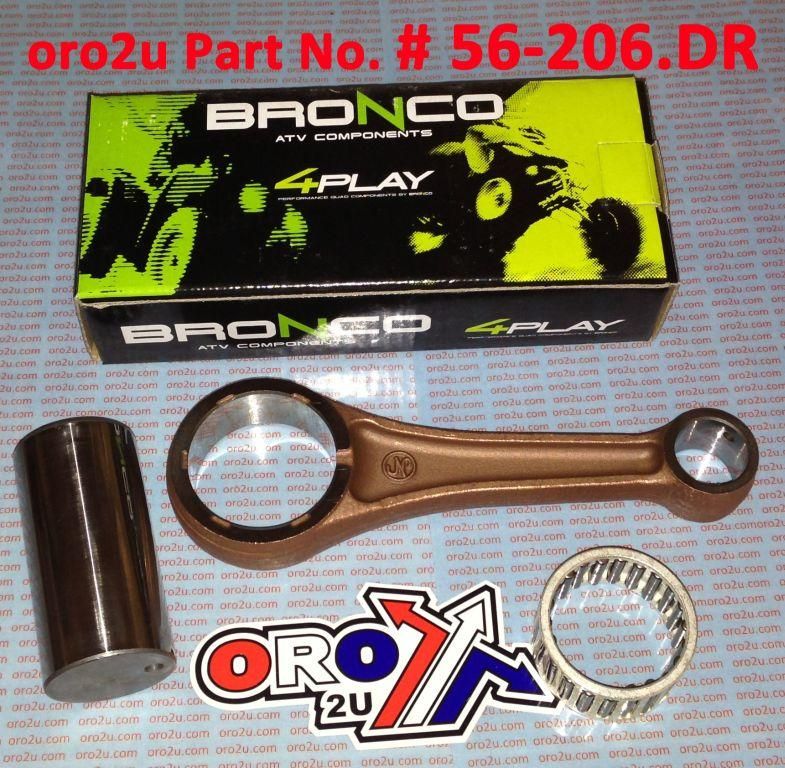

Part No. 56-206.DR (Distributed oro2u.com)
CONNECTING ROD SIZE PLEASE SEE DRAWING SIZE mm. A = 136.5, B = 22, C = 37, D = 22, E = 22, F = 73.80mm
Cross reference numbers ONLY.
VA2018 [73.8], 5LP-11651-00-00, HOTROD 8614, 5KM-11400-00-00
