CONNECTING ROD KIT YFM350, PSYCHIC AT-09173 1UY-11651-00

CONNECTING CONROD ROD REBUILD KIT BRONCO AT-09173

YAMAHA
YFM 350X WARRIOR 1987 – 2004,
YFM 350U BIG BEAR 2X4 96-66,
YFM350FH Wolverine 1999
YFM 350EX WOLVERINE 95-05,
YFM350FX Wolverien 95-05
YFM 350W/B/H/FW BIG BEAR 87-99,
YFM350FWB Big Bear 97-99
YFM350FWAN Big Bear 2WD/4WD 04-06
YFM 350ER MOTO 4 1987-1995,
YFM 350R RAPTOR 2005-2006-2013,

– Heavy-duty OE replacement connecting rods.
– Certified Chorme alloy steel provides superior strength.
– Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
– Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
– Thrust washers are manufactured from bronze phosphor and are silver coated.

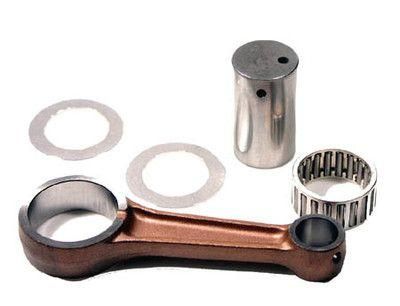

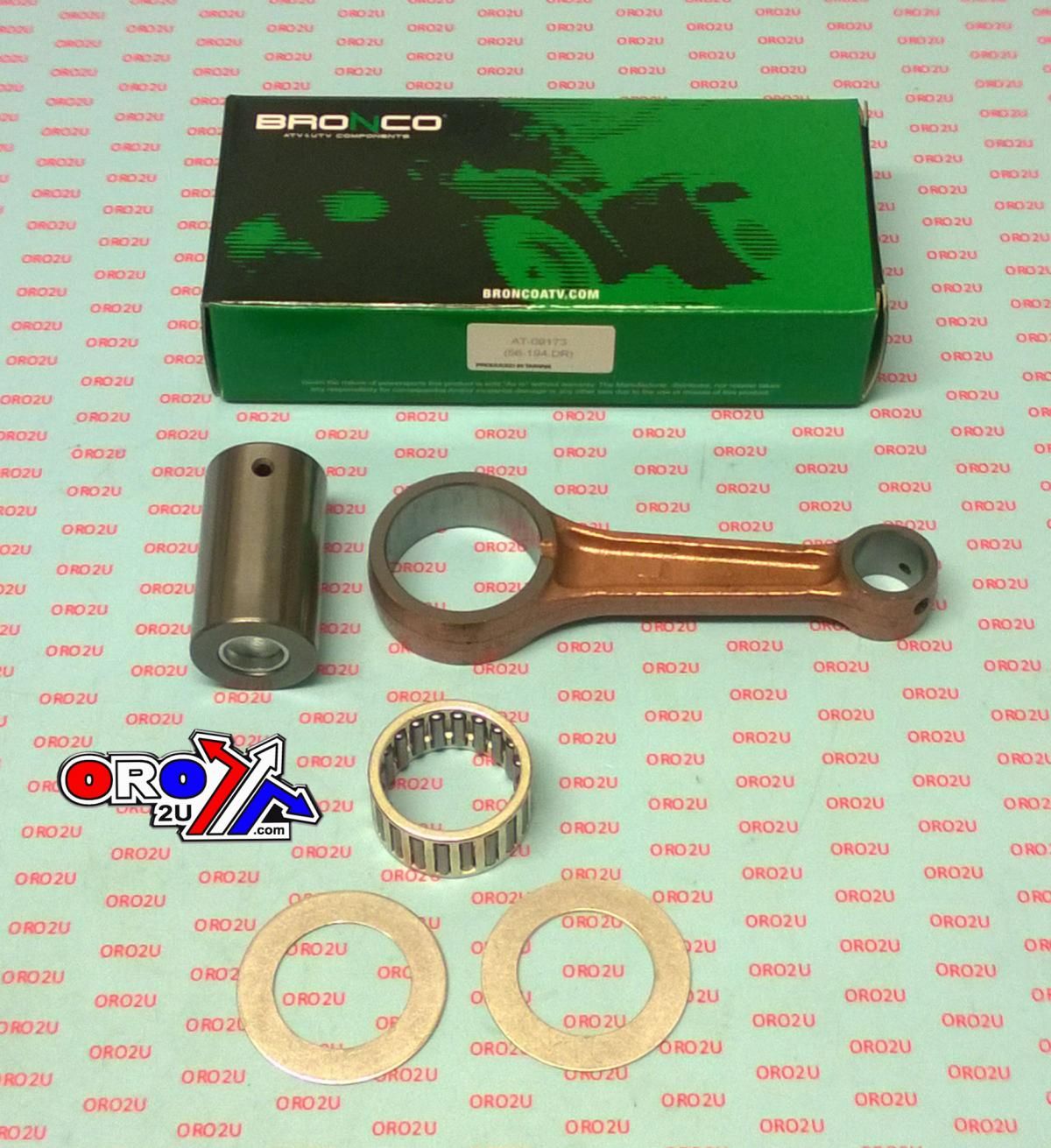

– Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
– Fully Compatible with after market and OE crankshafts.
– Material SNCM220,

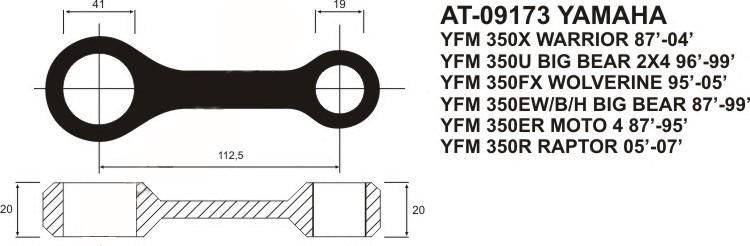

Center To Center (mm): 112.50
Big End Bearing (mm):   33X41X29.70
Big End Bore (mm):   41
Big End Width (mm): 20
Big End Pin Diameter (mm): 33
Big End Pin Length (mm): 57.80
Small End Bearing (mm): None
Small End Bore (mm): 19
Small End Width (mm): 20
Washer Thickness (mm): 1.00

Part No. 56-194.DR (oro2u.com)

Cross Reference Numbers Only:
1UY-11651-00-00, HOTROD 8605, WOSSNER P4036,
