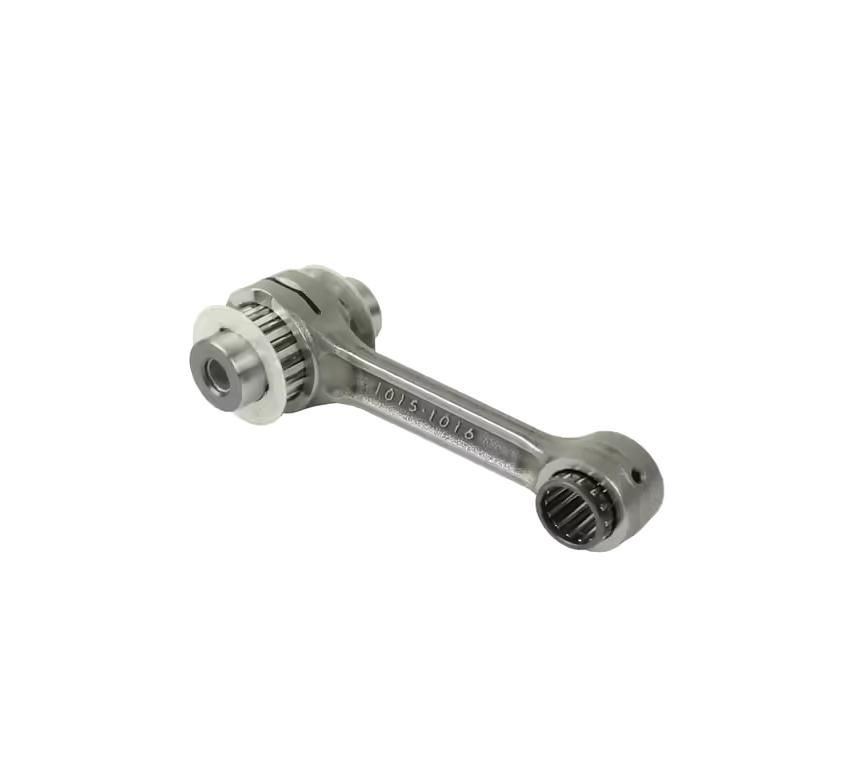

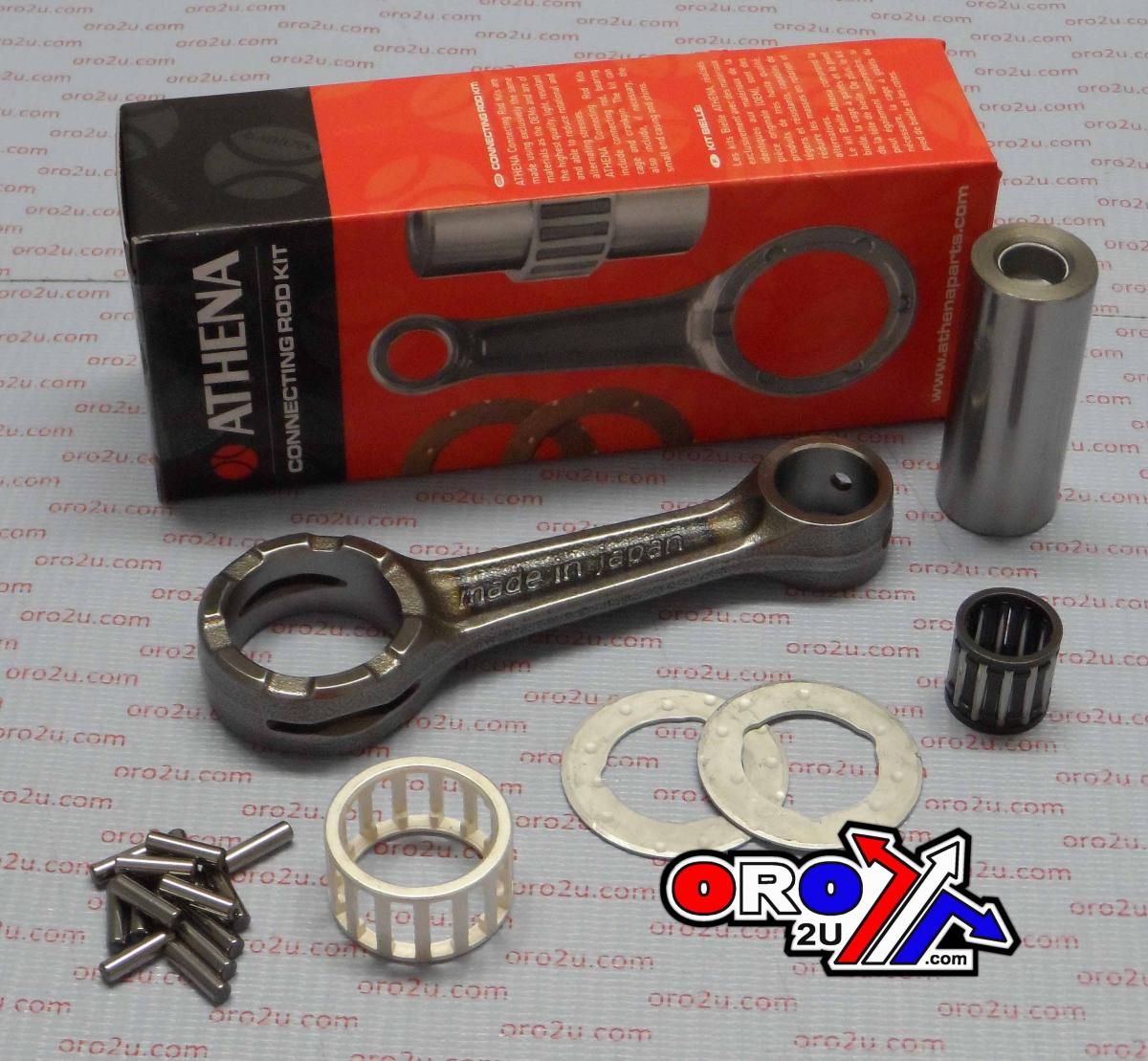

CONNECTING ROD KIT YAMAHA YZ 125 01-04, ATHENA P40321016

ATHENA Connecting Rod Offroad Kit – P40321016

Description

Athena’s connecting rods are made using the most advanced materials and treatments in order to offer the best to one of the most stressed engine component. The manufacturing to which they are exposed allows them to achieve an excellent rigidity-weight ratio and a better resistance to stress while maintaining a very competitive price.

Technical features

• Big End Bore (mm) 29.00
• Big End Pin Diameter (mm) 22.00
• Big End Width (mm) 17.00
• Center To Center (mm) 105.00
• Net Weight (Kg) 0.35
• Piston Pin Diameter (mm) 19.00
• Small End Width (mm) 16.00
• Washer Thickness (mm) 1.00

Partner Cross Reference code

• 5MV-11651-00-00
• PSYCHIC MX-09082
• PROX 03.2221
• WOSSNER P2017
• HOTRODS 8604
• WISECO WPR183

Vehicle compatibility

• YAMAHA YZ 125 cc 2001/2004

Part No. 56-168.ATH (oro2u.com)
