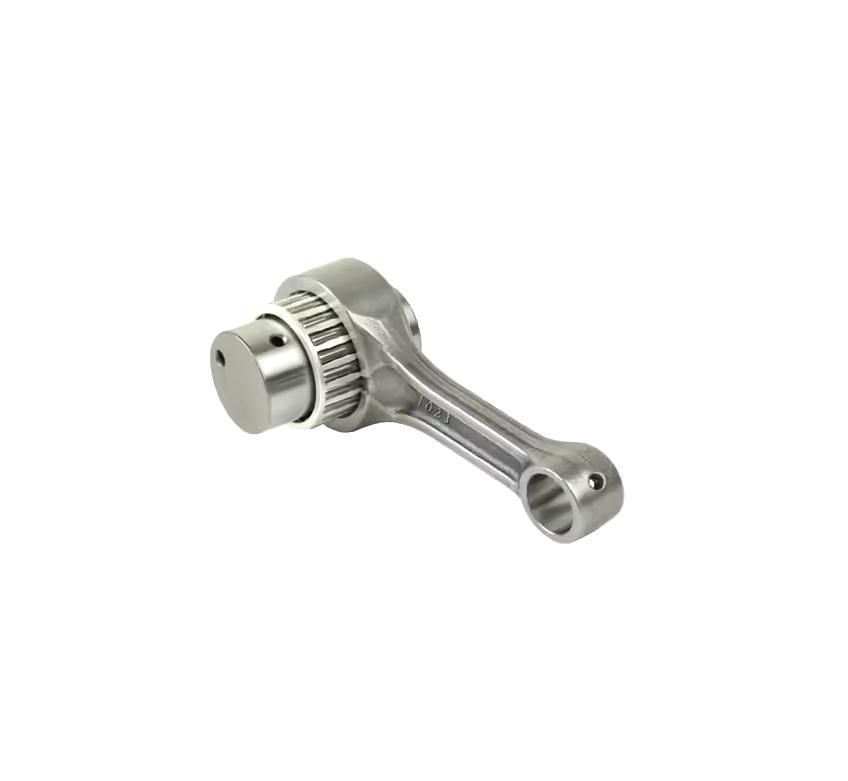

CONNECTING ROD KIT YAMAHA WR/YZ 450 06-11, ATHENA P40321023

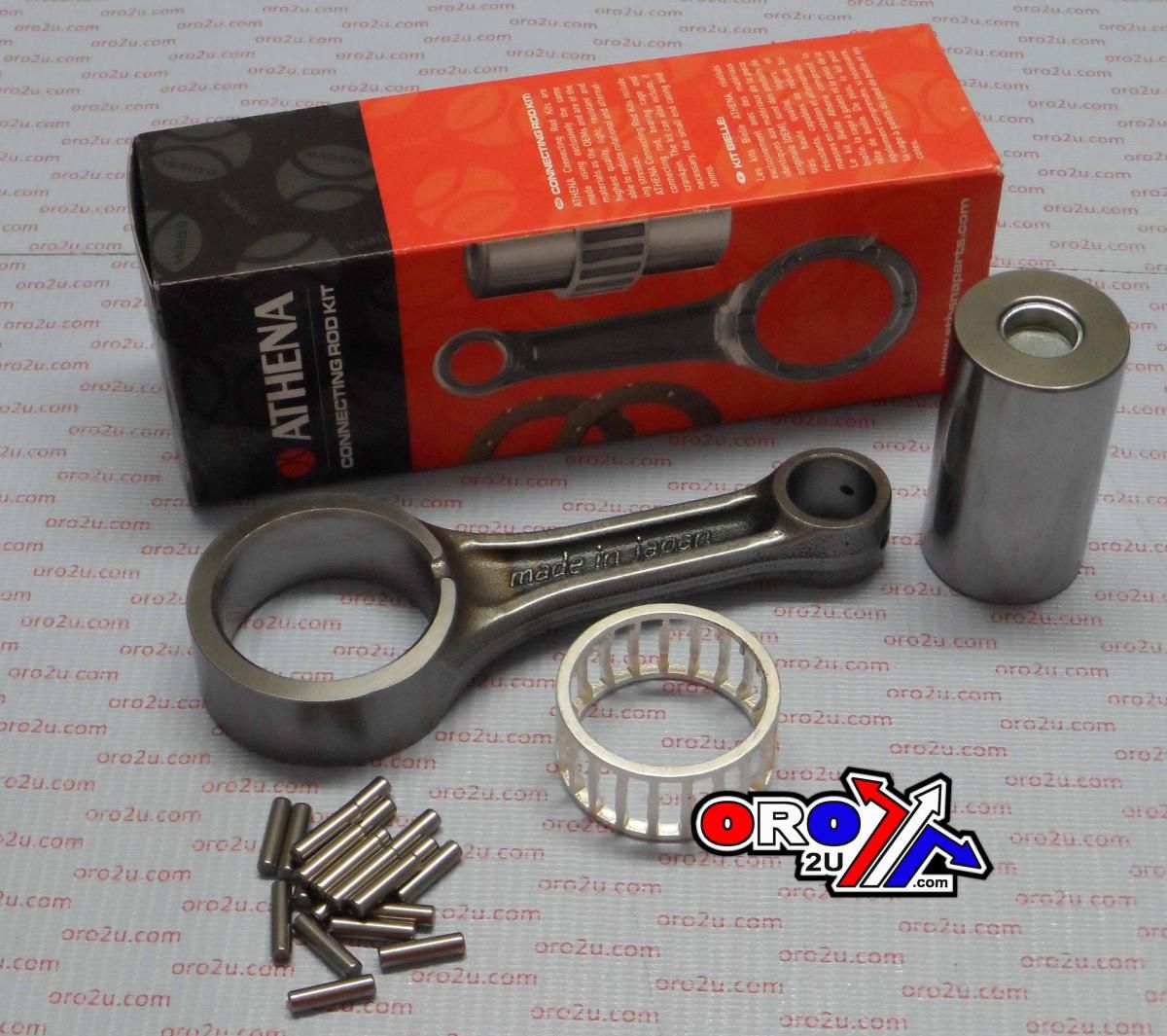

ATHENA Connecting Rod Offroad Kit – P40321023

Description

Athena’s connecting rods are made using the most advanced materials and treatments in order to offer the best to one of the most stressed engine component. The manufacturing to which they are exposed allows them to achieve an excellent rigidity-weight ratio and a better resistance to stress while maintaining a very competitive price.

Technical features

• Big End Bore (mm) 42.00
• Big End Pin Diameter (mm) 34.00
• Big End Width (mm) 20.00
• Center To Center (mm) 13.50
• Net Weight (Kg) 0.69
• Piston Pin Diameter (mm) 18.00
• Small End Width (mm) 18.00

Partner Cross Reference code

• 2S2116510000
• 2S2-11651-00-00
• PSYCHIC MX-09087
• HOTRODS 8643
• PROX 03.2426
• WISECO WPR205
• WOSSNER P4008

Vehicle compatibility

• YAMAHA WR F 450 cc 2007/2011
• YAMAHA YZ F 450 cc 2006/2009

Part No. 56-126.ATH (oro2u.com)
