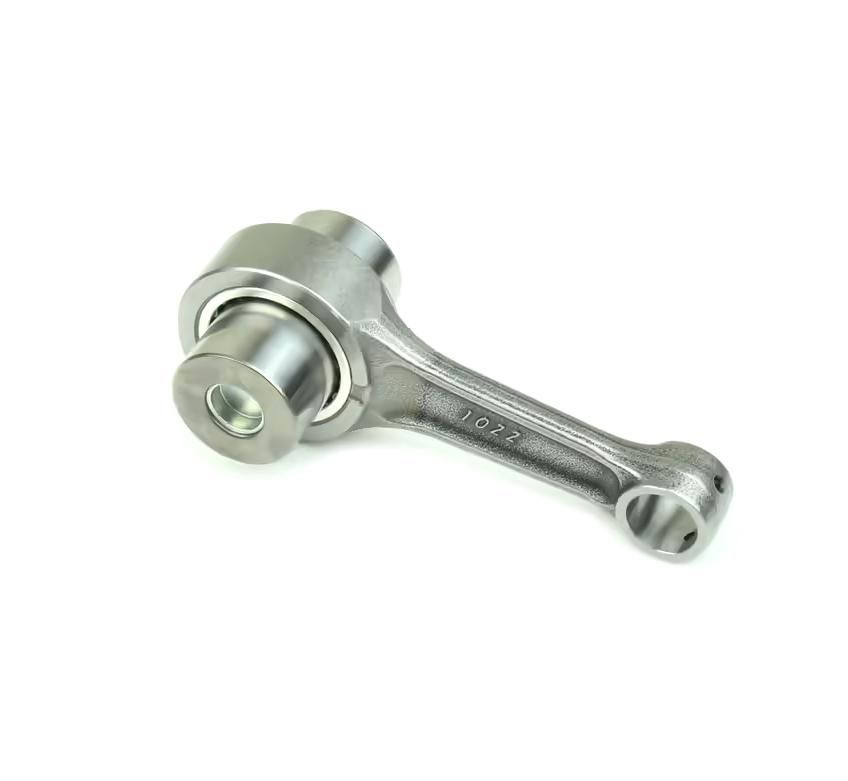

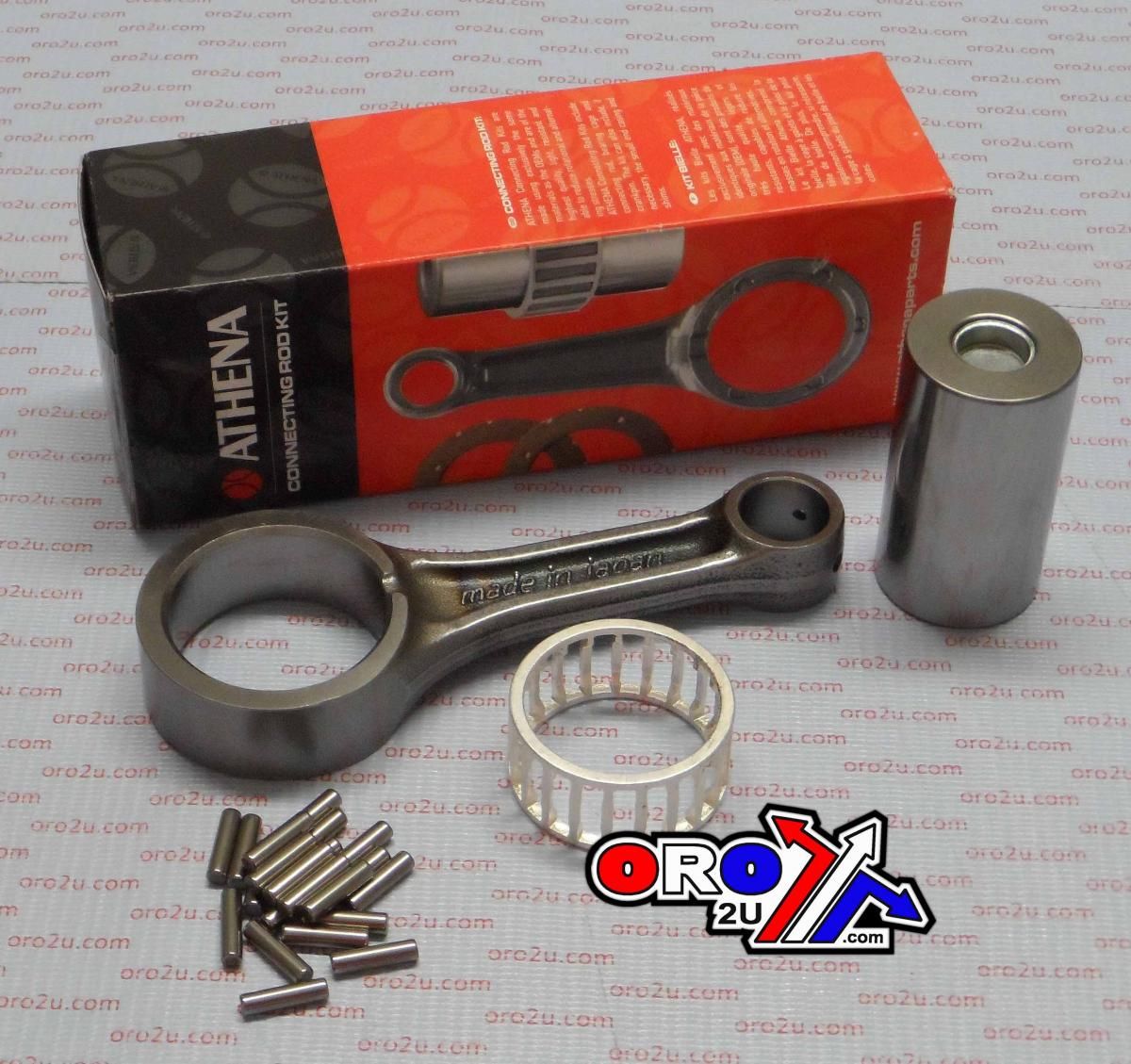

CONNECTING ROD KIT YAMAHA WR/YZ 450 03-05, ATHENA P40321022

ATHENA Connecting Rod Offroad Kit – P40321022

Description

Athena’s connecting rods are made using the most advanced materials and treatments in order to offer the best to one of the most stressed engine component. The manufacturing to which they are exposed allows them to achieve an excellent rigidity-weight ratio and a better resistance to stress while maintaining a very competitive price.

Technical features

• Big End Bore (mm) 42.00
• Big End Pin Diameter (mm) 34.00
• Big End Width (mm) 20.00
• Center To Center (mm) 103.50
• Net Weight (Kg) 0.67
• Piston Pin Diameter (mm) 18.00
• Small End Width (mm) 18.00

Partner Cross Reference code

• 5XD-11651-00-00
• PSYCHIC MX-09086
• HOTRODS 8621
• PROX 03.2423
• WISECO WPR197
• WOSSNER P4007

Vehicle compatibility

• YAMAHA WR F 450 cc 2003/2006
• YAMAHA YZ F 450 cc 2003/2005

Part No. 56-911.ATH (oro2u.com)
