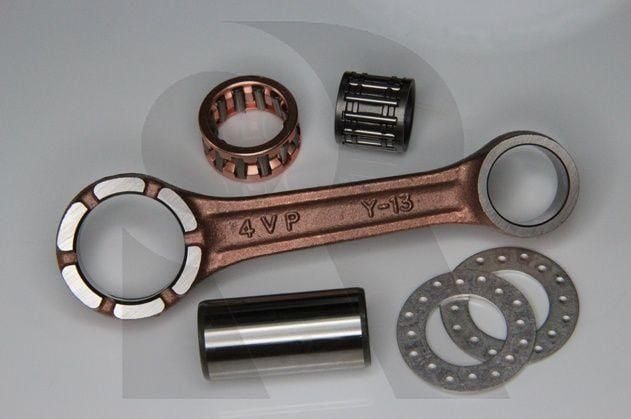

CONNECTING ROD KIT YAM 100, RY-2007 4VP-11651-00 YAMAHA

YAMAHA BWS100, YA100, YA100E 88-02

PART NO. 4VP-11651-00

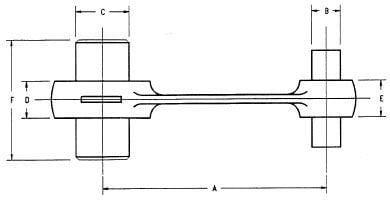

CONNECTING ROD SIZE PLEASE SEE DRAWING SIZE mm. A = 90, B = 14, C = 18, D = 11.6, E = 15, F=37.8

PIN: DIA. 18 – L 37.8
WASHER: 31 – 18.2 – 1
BIG END BEARING: 18*24*11.6
SMALL END BEARING:14*18*16.5

Part No. 56-2943 (oro2u.com)
