| Product Type | Connecting Rod |
|---|---|
| Product Group | Crankshafts & Parts |
| Catalogue | DIRT, ROAD |

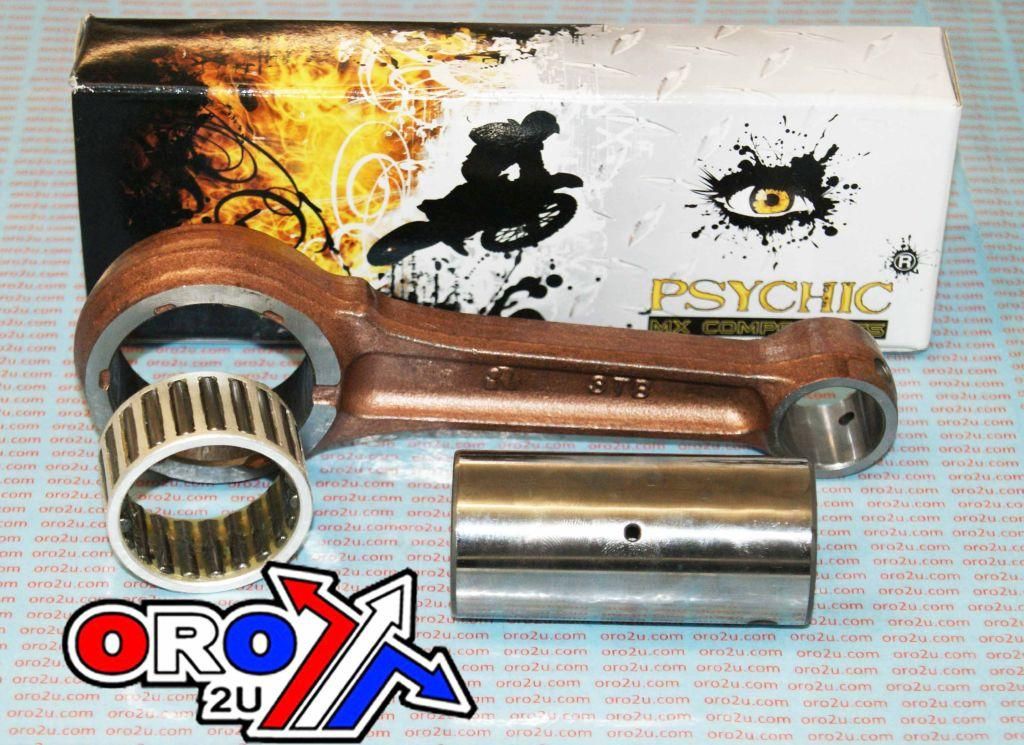

CONNECTING ROD KIT XT600E, PSYCHIC MX-09043 YAMAHA
YAMAHA
XT600E 1986-1999,
TT600E/ER 1994-2004,
CONNECTING CONROD ROD REBUILD KIT. PSYCHIC MX-09043
– Heavy-duty OE replacement connecting rods.
– Certified Chorme alloy steel provides superior strength.
– Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
– Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
– Thrust washers are manufactured from bronze phosphor and are silver coated.
– Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
– Fully Compatible with after market and OE crankshafts.
– Material SNCM220,
|
SIZE |
MM |
|
Centre 2 Centre |
135.5 |
|
Small End Bearing |
None |
|
Small End Bore Ø |
22 |
|
Small End Width |
22 |
|
Big End Bearing |
35x43x21.8 |
|
Big End Bore Ø |
43 |
|
Big End Width |
22 |
|
Big End Pin Ø |
35 |
|
Big End Pin Length |
74 |
|
Washer Thickness |
None |
Part No. 56-2911.DR (oro2u.com)
Cross reference numbers ONLY.
PROX 03-2600,
Rod, Connecting 3TB-11651-00-00,
Bearing, Cylindrical 93310-635C6-00 / 93310-635D4-00,
[Fits into Crankshaft Assembly 3TB-11400-00-00]
CONNECTING ROD SIZE PLEASE SEE DRAWING SIZE mm. A = 135.5, B = 22, C = 35, D = 22, E = 22, F = 74
BIG END BEARING:35*43*21.8 PIN: 35 ? 74
