| Product Type | Connecting Rod |
|---|---|
| Product Group | Crankshafts & Parts |
| Catalogue | ATV |

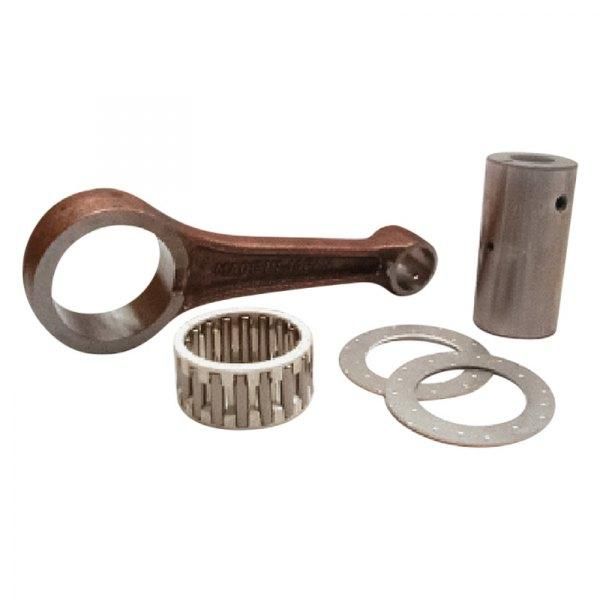

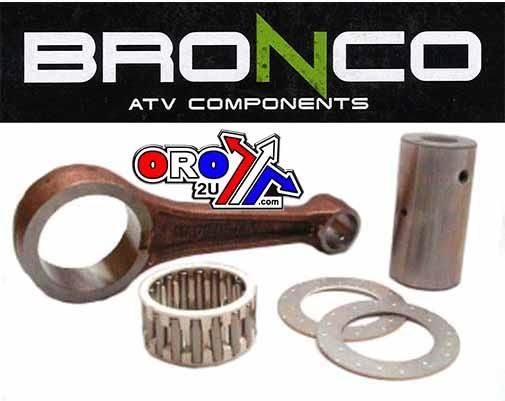

CONNECTING ROD KIT TRX400 450, BRONCO AT-09212
HONDA
TRX400FW 1995 – 2003,
TRX450S / ES 1998 – 2004,
CONNECTING CONROD ROD Rebuild kit. BRONCO AT-09212
– Heavy-duty OE replacement connecting rods.
– Certified Chorme alloy steel provides superior strength.
– Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
– Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
– Thrust washers are manufactured from bronze phosphor and are silver coated.
– Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
– Fully Compatible with after market and OE crankshafts.
– Material SNCM220,
| SIZE |
MM |
|
Centre 2 Centre |
122.40 |
|
Small End Bearing |
None |
|
Small End Bore Ø |
19 |
|
Small End Width |
20 |
|
Big End Bearing |
33x41x19.50 |
|
Big End Bore Ø |
41 |
|
Big End Width |
20 |
|
Big End Pin Ø |
33 |
|
Big End Pin Length |
62.9 |
|
Washer Thickness |
33x51x1.0 |
Part No. 56-214.DR (oro2u.com)
Cross reference numbers ONLY.
[Fits into 13000-HM7-000 / 13000-HN0-670]
TRX 400FW Foreman 4×41995 Honda TRX 400FW Foreman 4×4 1996 Honda TRX 400FW Foreman 4×4 1997 Honda TRX 400FW Foreman 4×4 1998 Honda TRX 400FW Foreman 4×4 1999 Honda TRX 400FW Foreman 4×4 2000 Honda TRX 400FW Foreman 4×4 2001 Honda TRX 400FW Foreman 4×4 TRX 450ES Foreman ES1998 Honda TRX 450ES Foreman ES 1999 Honda TRX 450ES Foreman ES 2000 Honda TRX 450ES Foreman ES 2001 Honda TRX 450ES Foreman ES
