CONNECTING ROD KIT SUZUKI RM-Z 250 04-25, ATHENA P40321029 KAWASAKI KX 250F 04-09

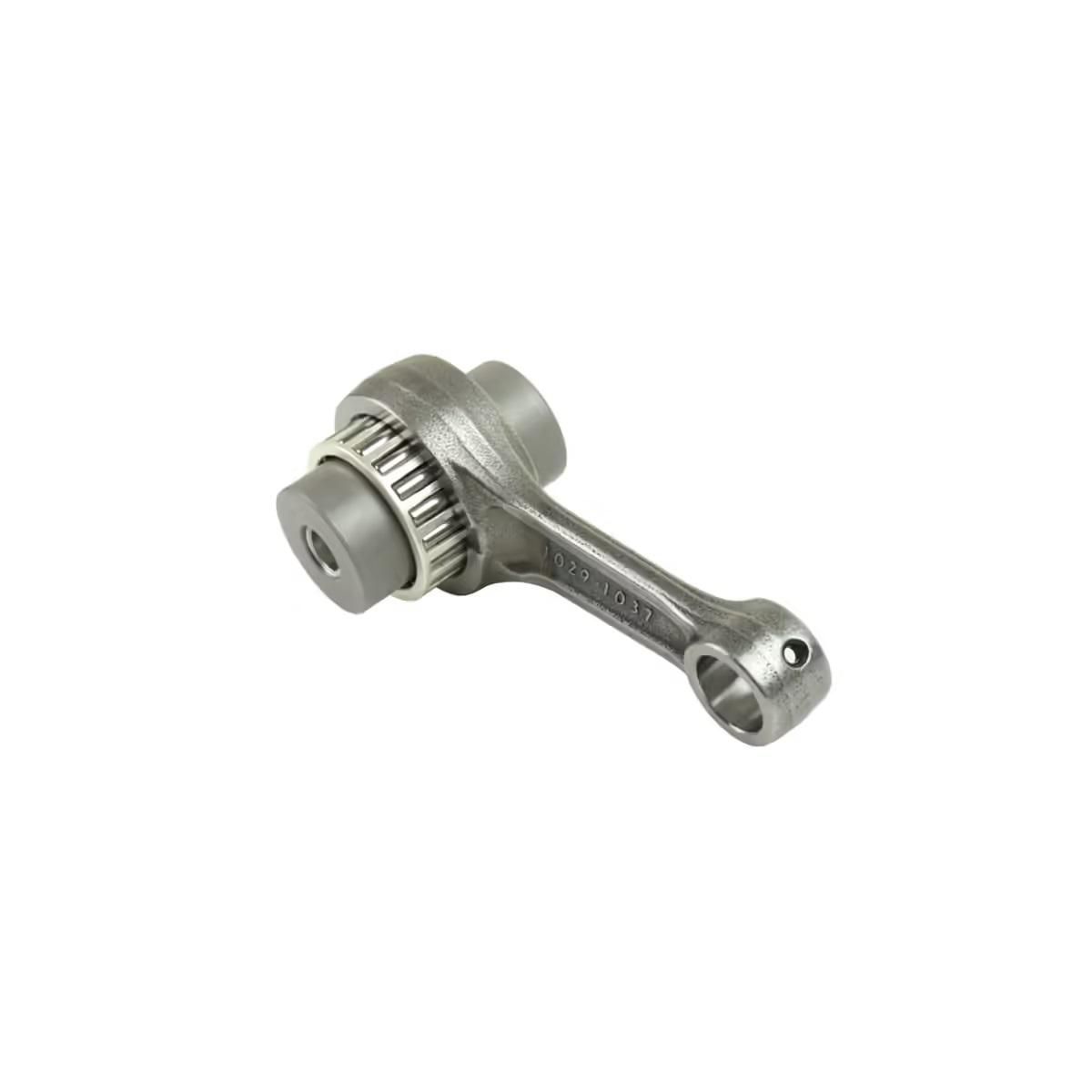

ATHENA Connecting Rod Offroad Kit – P40321029

Description

Athena’s connecting rods are made using the most advanced materials and treatments in order to offer the best to one of the most stressed engine component. The manufacturing to which they are exposed allows them to achieve an excellent rigidity-weight ratio and a better resistance to stress while maintaining a very competitive price.

Technical features

• Big End Bore (mm) 38.00
• Big End Pin Diameter (mm) 30.00
• Big End Width (mm) 18.00
• Center To Center (mm) 92.50
• Net Weight (Kg) 0.53
• Piston Pin Diameter (mm) 16.00
• Small End Width (mm) 15.00

Partner Cross Reference code

• HOTROD 8622
• WOSSNER P4002
• WISECO WPR201
• PSYCHIC MX-09050
• KAWASAKI: 13032-0003
• KAWASAKI: 13032-0047
• Suzuki: K1303-20003
• Suzuki: K1303-20047

Vehicle compatibility

• KAWASAKI KX F 250 cc 2004/2009
• SUZUKI RM-Z 250 cc 2004/2025

Part No. 56-936.ATH (oro2u.com)
