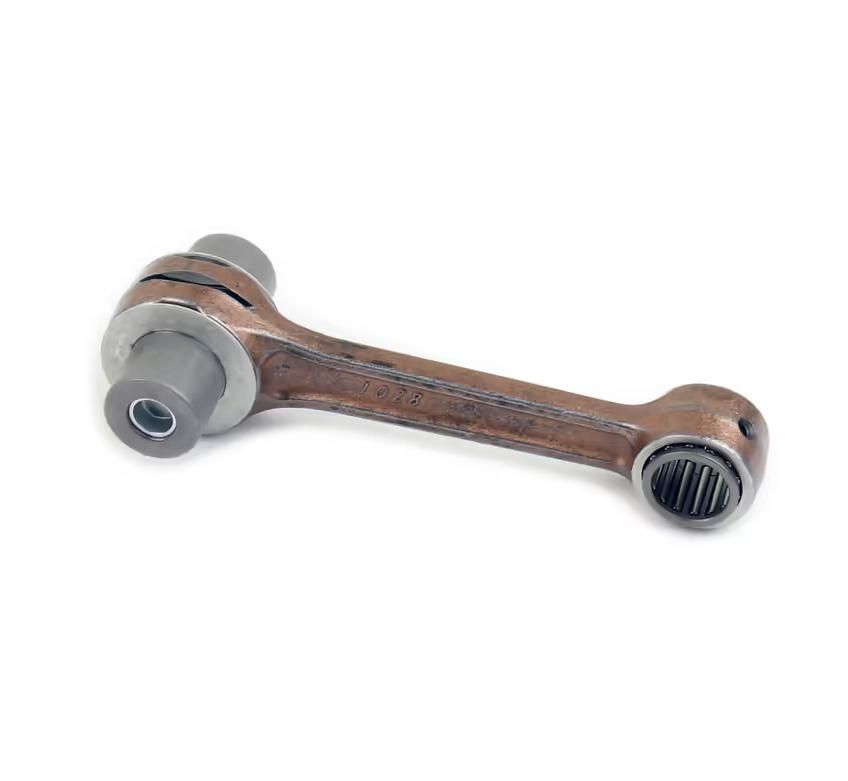

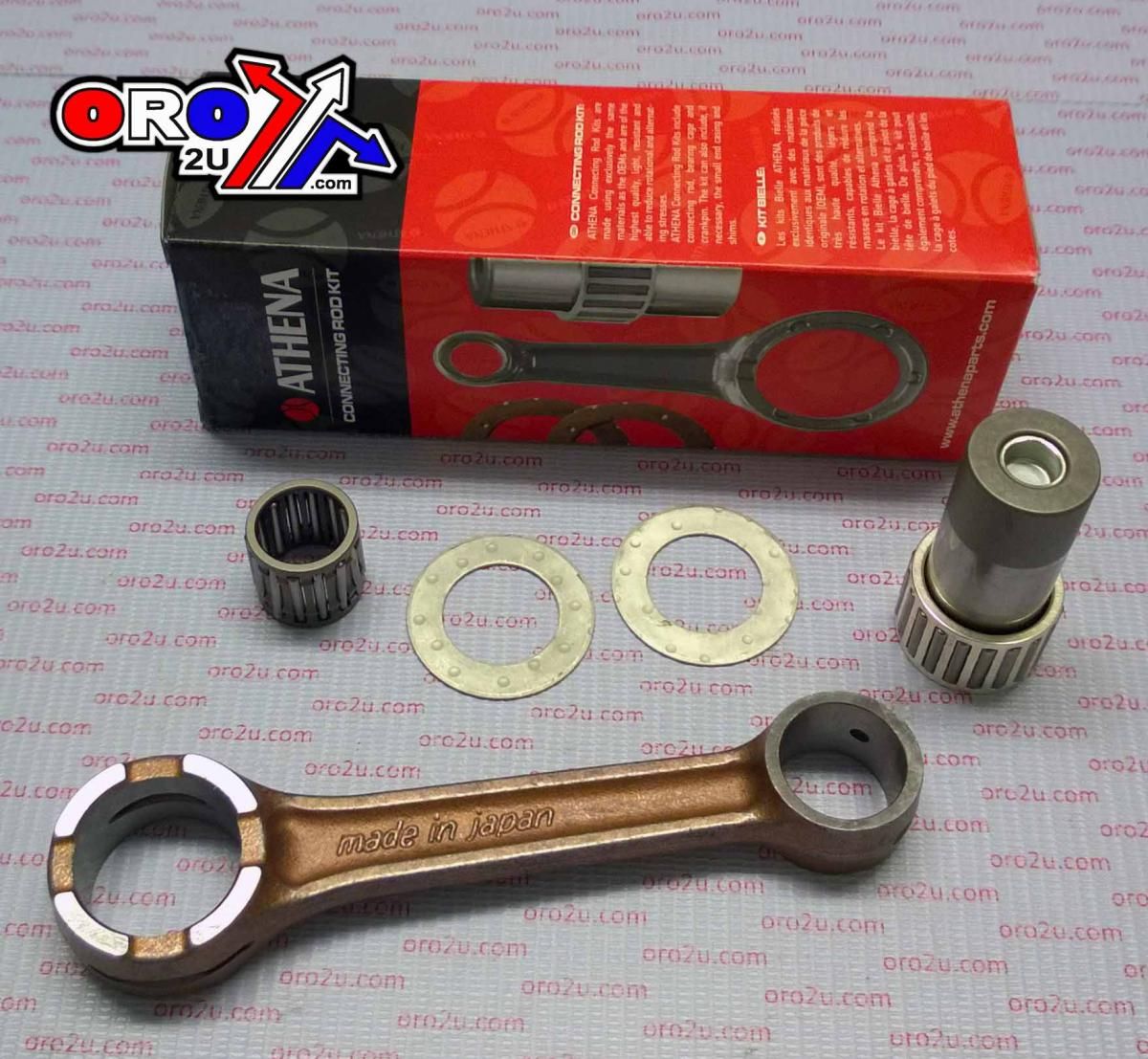

CONNECTING ROD KIT SUZUKI RM 250 03-12, ATHENA P40321028

ATHENA Connecting Rod Offroad Kit – P40321028

Description

Athena’s connecting rods are made using the most advanced materials and treatments in order to offer the best to one of the most stressed engine component. The manufacturing to which they are exposed allows them to achieve an excellent rigidity-weight ratio and a better resistance to stress while maintaining a very competitive price.

Technical features

• Big End Bore (mm) 30.00
• Big End Pin Diameter (mm) 24.00
• Big End Width (mm) 20.00
• Center To Center (mm) 125.00
• Net Weight (Kg) 0.46
• Piston Pin Diameter (mm) 23.00
• Small End Width (mm) 20.00
• Washer Thickness (mm) 1.00

Partner Cross Reference code

• PSYCHIC MX-09058
• HOTROD 8611
• PROX 03.3323
• WOSSNER P2025
• SUZUKI 12161-37F20
• CR192

Vehicle compatibility

• SUZUKI RM 250 cc 2003/2012

Part No. 56-109.ATH (oro2u.com)
