| Product Type | Connecting Rod |
|---|---|
| Product Group | Crankshafts & Parts |
| Catalogue | ATV |

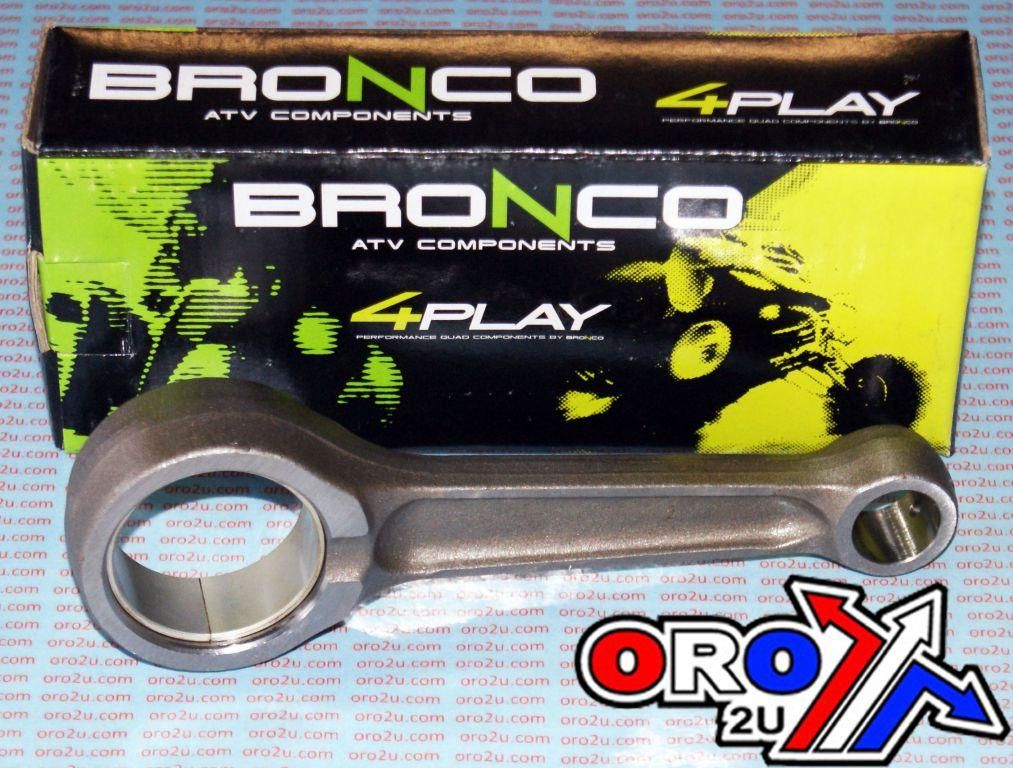

CONNECTING ROD KIT POLARIS, BRONCO AT-09408 POLARIS
POLARIS ATV
SPORTSMAN 800 ALL 2005-2014,
POLARIS UTV
RANGER 800 2010-14
RANGER 800 CREW 2010-14
RANGER 800 6X6 2010-17
RZR 800 2008-14
RZR 4 800 2010-14
RZR S 800 2009-14
CONNECTING CONROD ROD REBUILD KIT. BRONCO AT-09408
– Heavy-duty OE replacement connecting rods.
– Certified Chorme alloy steel provides superior strength.
– Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
– Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
– Thrust washers are manufactured from bronze phosphor and are silver coated.

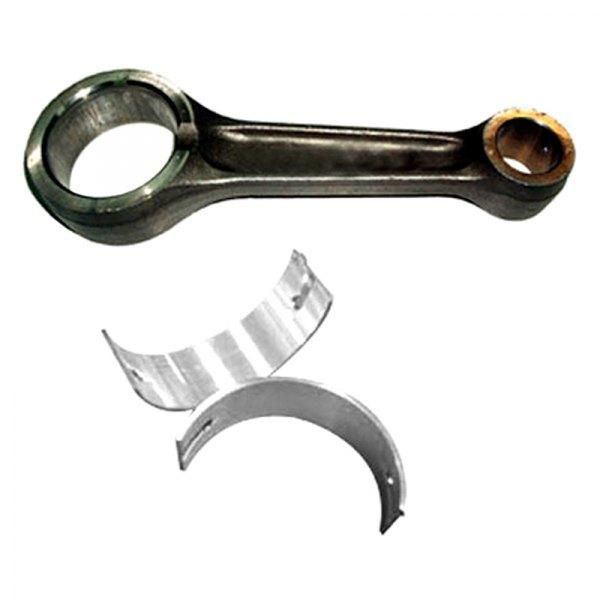

– Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
– Fully Compatible with after market and OE crankshafts.
– Material SNCM220/420,
|

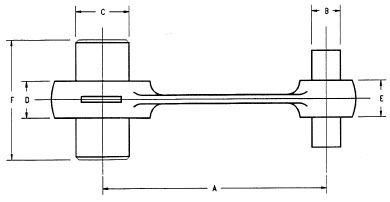

SIZE |
MM |
|
Centre 2 Centre |
135 |
|
Small End Bearing |
None |
|
Small End Bore Ø |
18 |
|
Small End Width |
18 |
|
Big End Bearing Shell |
39×42.2×19 |
|
Big End Bore Ø |
42.2 |
|
Big End Width |
24.2 |
|
Big End Pin Ø |
39 |
|
Big End Pin Length |
None |
|
Washer Thickness |
None |
Part No. 56-2954 (oro2u.com)
Cross reference numbers ONLY.
[Fits into Crankshaft Assembly 2203068 / 2205112 ]
