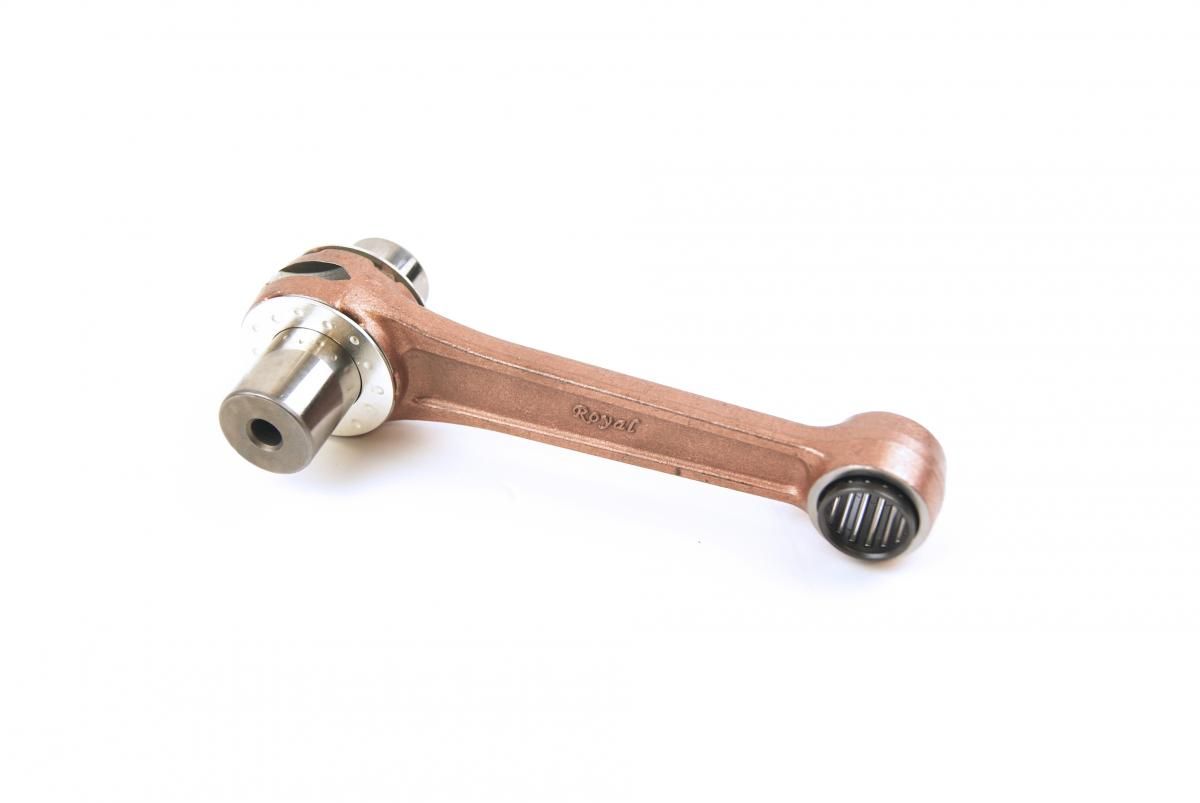

CONNECTING ROD KIT MAICO 490 83-ON, MX-09070 / RX-12002 137-18-25-20-20-67mm
£89.75
Brand: Namura Technologies
Stock: 32
| Product Type | Connecting Rod |
|---|---|
| Product Group | Crankshafts & Parts |
| Catalogue | DIRT |
CONNECTING ROD KIT MAICO 490 83-ON, MX-09070 / RX-12002 137-18-25-20-20-67mm
MAICO
490 LATE MODEL 1983-ON,
CONNECTING CONROD ROD REBUILD KIT. NAMURA MX-09070
– Heavy-duty OE replacement connecting rods.
– Certified Chorme alloy steel provides superior strength.
– Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
– Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
– Thrust washers are manufactured from bronze phosphor and are silver coated.
– Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
– Fully Compatible with after market and OE crankshafts.
– Material SNCM220,
|
SIZE |
MM |
|
Centre 2 Centre |
137 |
|
Small End Bearing |
18x22x23.5 |
|
Small End Bore Ø |
22 |
|
Small End Width |
20 |
|
Big End Bearing |
25x31x19.8 |
|
Big End Bore Ø |
31 |
|
Big End Width |
20 |
|
Big End Pin Ø |
25 |
|
Big End Pin Length |
67 |
| Washer Thickness |
25x42x1 |
Part No. 56-2930 (oro2u.com)
Cross reference numbers ONLY.
RO-8201 / 149
