| Product Type | Connecting Rod |
|---|---|
| Product Group | Crankshafts & Parts |
| Catalogue | DIRT |

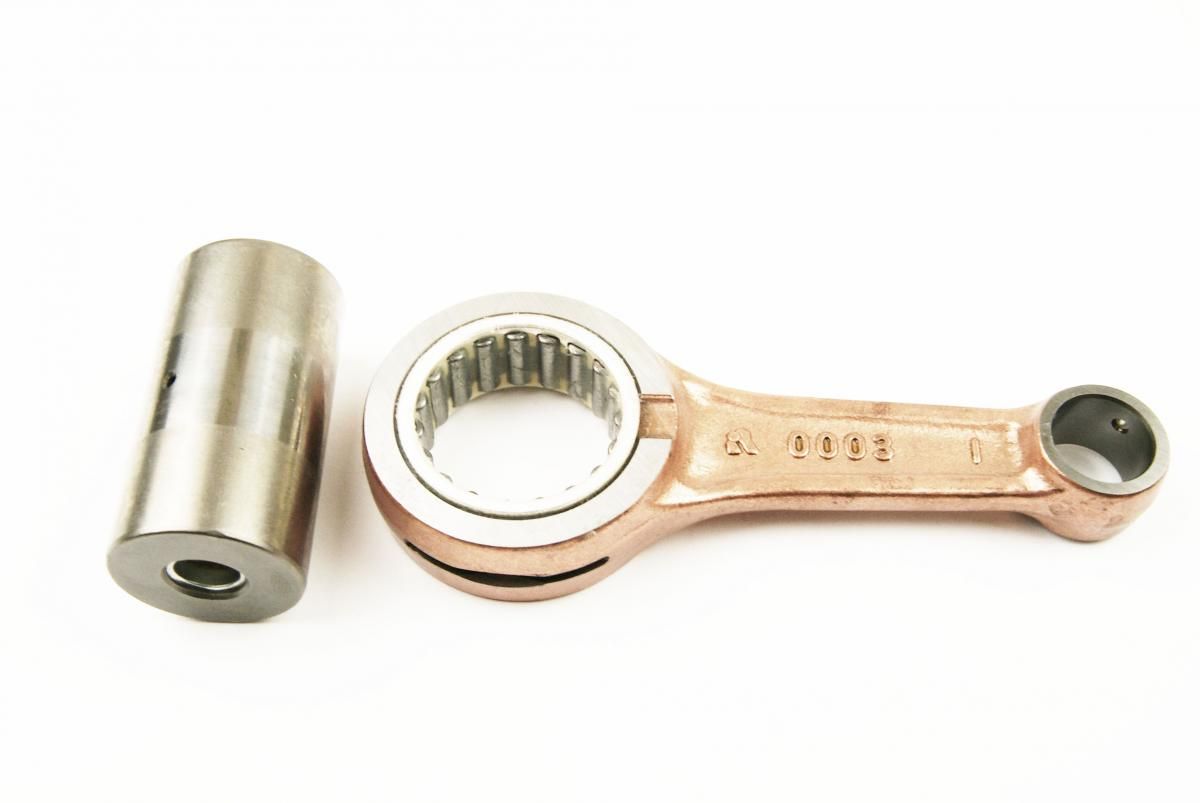

CONNECTING ROD KIT KXF, RMZ, NAMURA RX-30001 CONROD, MX-09050
KAWASAKI
KXF250 KX250F 2004-2009,
SUZUKI
RM-Z250 RMZ250 2004-2018,
CONNECTING CONROD ROD REBUILD KIT. NAMURA MX-09050
– Heavy-duty OE replacement connecting rods.
– Certified Chorme alloy steel provides superior strength.
– Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
– Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
– Thrust washers are manufactured from bronze phosphor and are silver coated.
– Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
– Fully Compatible with after market and OE crankshafts.
– Material SNCM220,
|
SIZE |
MM |
|
Centre 2 Centre |
92.50 |
|
Small End Bearing |
None |
|
Small End Bore Ø |
16 |
|
Small End Width |
15.00 |
|
Big End Bearing |
30x38x18.8 |
|
Big End Bore Ø |
38 |
|
Big End Width |
19.00 |
|
Big End Pin Ø |
30 |
|
Big End Pin Length |
55.00 |
|
Washer Thickness |
1.00 |
Part No. 56-936.DR (oro2u.com)
Cross reference numbers ONLY.
ATHENA P40321029 HOTROD 8622, WOSSNER P4002, WISECO WPR201, PSYCHIC MX-09050, KAWASAKI: 13032-0003, KAWASAKI: 13032-0047, SUZUKI: K1303-20003, SUZUKI: K1303-20047, 56-936_HR,
