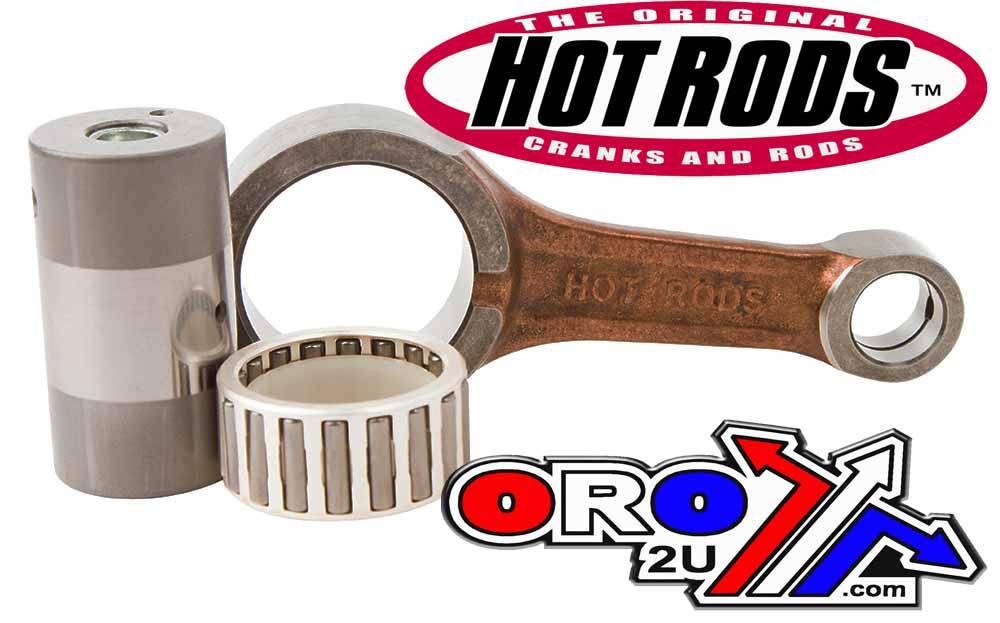

CONNECTING ROD KIT KXF, RMZ, HOTROD 8622 250 04-06

Heavy-duty connecting rod kit designed for Kawasaki KXF250 (2004-2009) and Suzuki RMZ250 (2004-2006) models. This high-quality replacement kit ensures exceptional durability and performance, including all necessary components for a complete rebuild.

Features:

• Complete kit includes rod, crankpin, crankpin bearing, top-end bearing, and thrust washers.
• Manufactured from hot-rolled ASTM 4115 steel and case-hardened to 58-62 Rc for superior strength.
• Strategically designed side scalloping and vent slots minimize high-RPM bearing race distortion.
• Double-forged rods ensure improved grain flow and dimensional consistency.
• Shot-peened and double-honed for enhanced strength under heavy loads.
• Small ends are double drilled for optimal lubrication and cooling of the wrist pin bearing.
• Thrust washers and crankpin bearings feature a silver coating for increased lubricity.

Specifications:

• Centre to Centre: 92.50 mm
• Small End Bearing: None
• Small End Bore Ø: 16 mm
• Small End Width: 15.00 mm
• Big End Bearing: 30x38x18.8 mm
• Big End Bore Ø: 38 mm
• Big End Width: 19.00 mm
• Big End Pin Ø: 30 mm
• Big End Pin Length: 55.00 mm
• Washer Thickness: 1.00 mm

Vehicle Fitment:

• Kawasaki KXF250: 2004-2009.
• Suzuki RMZ250: 2004-2006

Part Number: 56-936.HR
