| Product Type | Connecting Rod |
|---|---|
| Product Group | Crankshafts & Parts |
| Catalogue | DIRT |
| Alternate SKU's | 03.4118, 13032-1230, 8147, MX-09028, P2005, WPR171 |

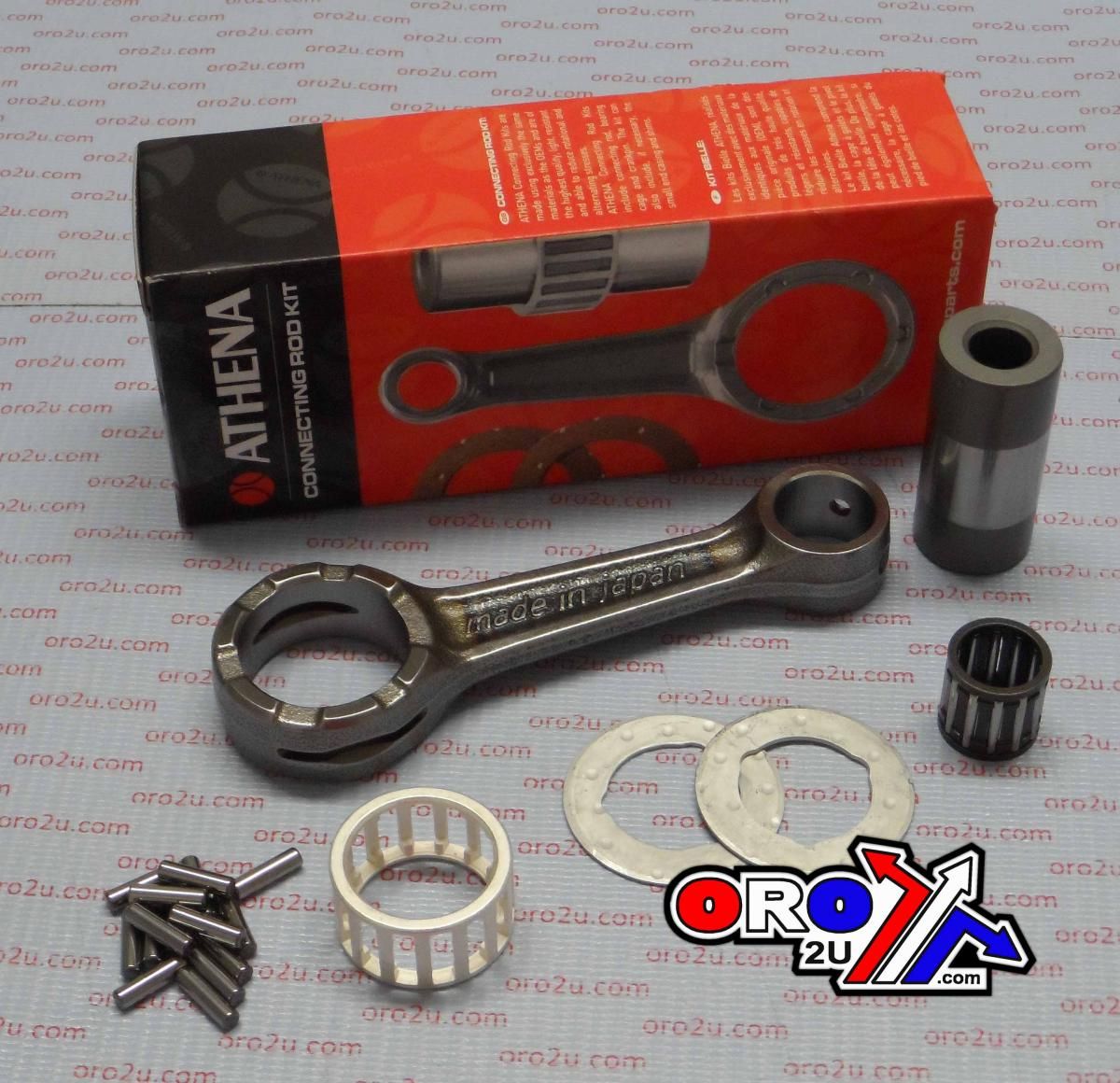

CONNECTING ROD KIT KX 80/85/100 98-25, ATHENA P40321032 KAWASAKI
ATHENA Connecting Rod Offroad Kit – P40321032
Description
Athena’s connecting rods are made using the most advanced materials and treatments in order to offer the best to one of the most stressed engine component. The manufacturing to which they are exposed allows them to achieve an excellent rigidity-weight ratio and a better resistance to stress while maintaining a very competitive price.
Technical features
- Big End Bore (mm) 29.00
- Big End Pin Diameter (mm) 22.00
- Big End Width (mm) 16.00
- Center To Center (mm) 92.00
- Net Weight (Kg) 0.29
- Piston Pin Diameter (mm) 18.00
- Small End Width (mm) 16.00
- Washer Thickness (mm) 1.00
Partner Cross Reference code
- 13032-1230
- PSYCHIC MX-09028
- PROX 03.4118
- WOSSNER P2005
- HOTRODS 8147
- WISECO WPR171
Vehicle compatibility
- KAWASAKI KX 100 cc 1998/2021
- KAWASAKI KX 80 cc 1998/2000
- KAWASAKI KX 85 cc 2001/2015
- KAWASAKI KX 85 cc 2017/2025
Part No. 56-878.ATH (oro2u.com)
