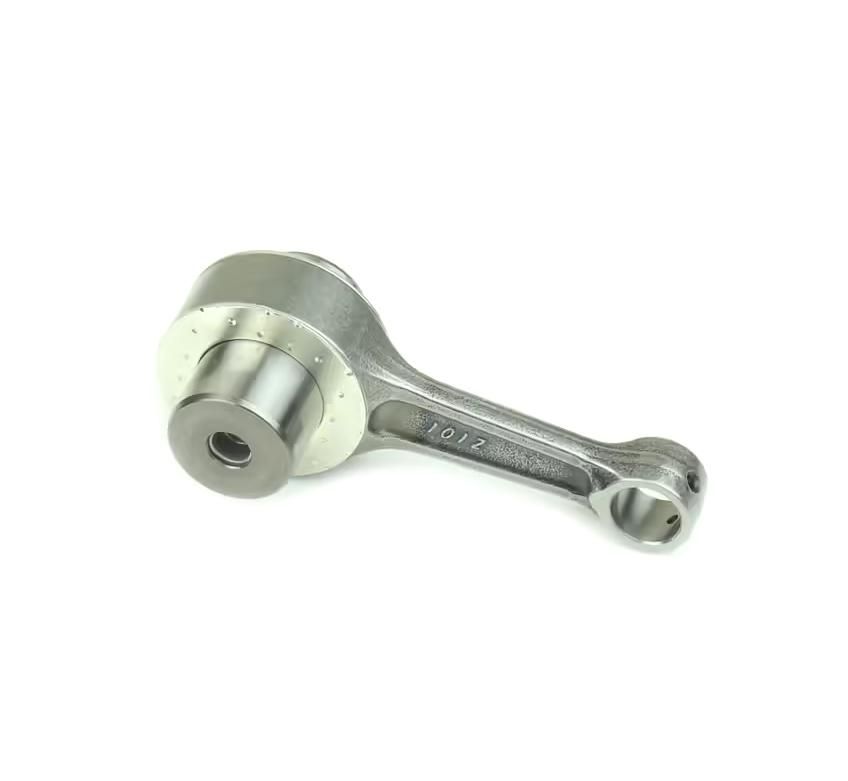

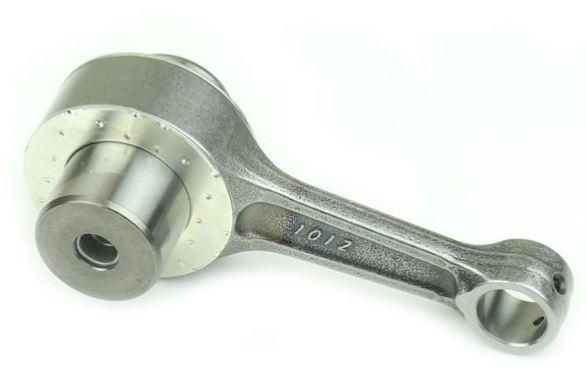

CONNECTING ROD KIT HONDA CRF 250 R/RX 04-17, ATHENA P40321012

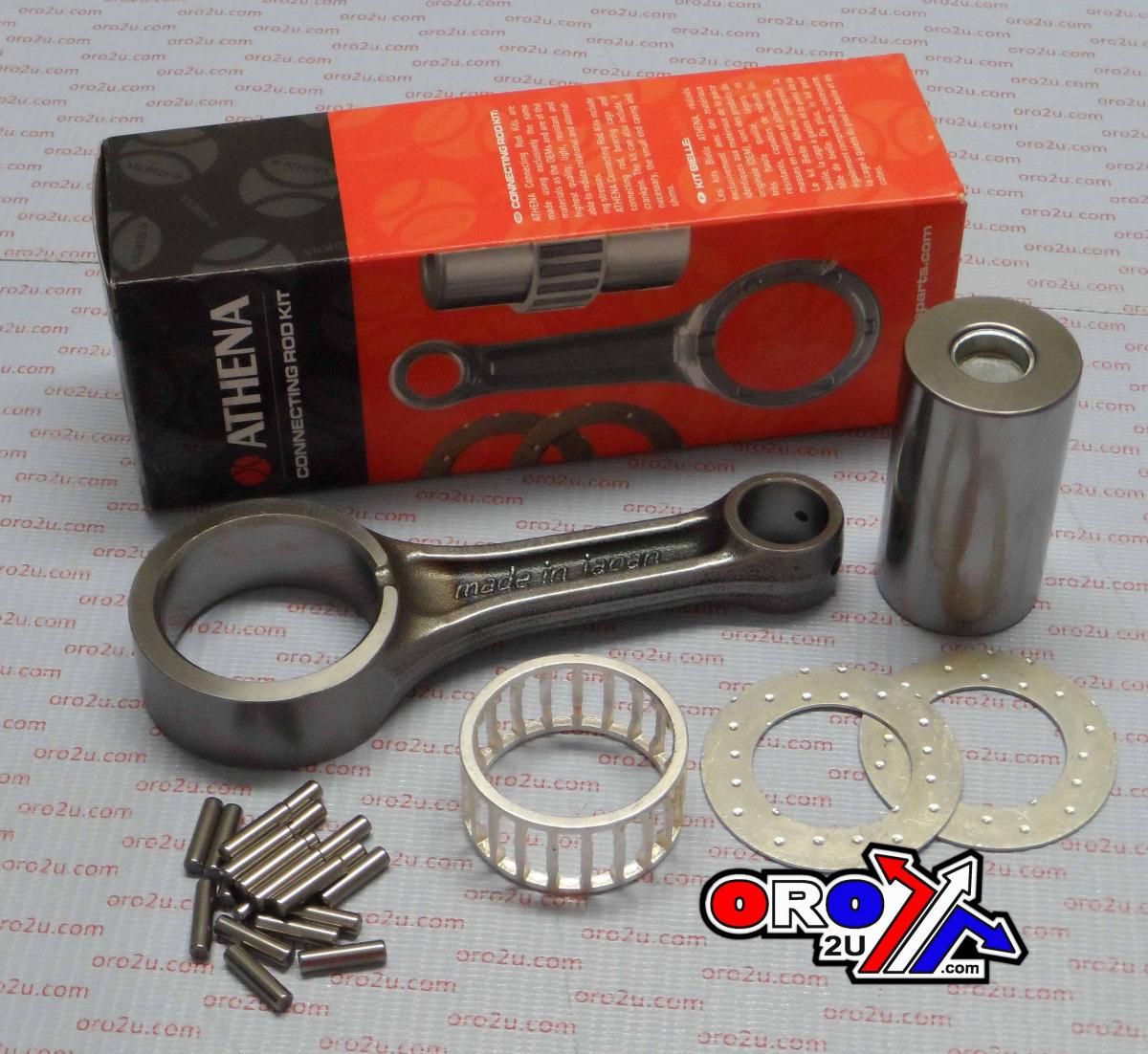

ATHENA Connecting Rod Offroad Kit – P40321012

Description

Athena’s connecting rods are made using the most advanced materials and treatments in order to offer the best to one of the most stressed engine component. The manufacturing to which they are exposed allows them to achieve an excellent rigidity-weight ratio and a better resistance to stress while maintaining a very competitive price.

Technical features

• Big End Bore (mm) 38.00
• Big End Pin Diameter (mm) 30.00
• Big End Width (mm) 18.00
• Center To Center (mm) 90.00
• Net Weight (Kg) 0.55
• Piston Pin Diameter (mm) 16.00
• Small End Width (mm) 15.00
• Washer Thickness (mm) 1.00

Partner Cross Reference code

• 13000-KRN-A60
• 13000-KSC-A11

Vehicle compatibility

• HONDA CRF R 250 cc 2004/2017
• HONDA CRF X 250 cc 2004/2017

Part No. 56-935.ATH (oro2u.com)
