CONNECTING ROD KIT AP50, RS-3001 12161-35000 SUZUKI 12161-37B03 12161-37B02

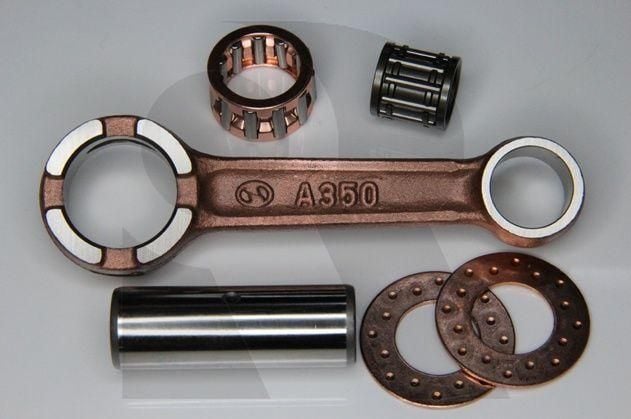

This connecting rod crankshaft rebuild kit is designed for various Suzuki models, providing a high-quality replacement that meets or exceeds OEM specifications. It offers precise dimensions and is compatible with several vehicles, ensuring reliable engine performance.

Features:

• Precision-engineered connecting rod for durability and performance.
• Direct OEM replacement for seamless compatibility.
• Includes bearings and washers designed to meet strict quality standards.
• Cost-effective solution with guaranteed satisfaction.
• Easy to install; professional installation is recommended if unsure.

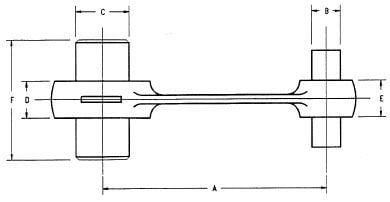

Specifications:

• Centre to Centre: 80 mm
• Small End Bore Diameter: 12 mm
• Small End Bearing: 12 × 16 × 15.5 mm
• Big End Bore Diameter: 16 mm
• Big End Bearing: 16 × 22 × 11.8 mm
• Pin Diameter: 16 mm
• Pin Length: 46 mm
• Washer Dimensions: 16.2 × 30 × 1 mm

Cross-Reference OEM Part Numbers:

• 12161-35000
• 12161-37B03
• 12161-37B02

Compatibility:

This kit is compatible with the following Suzuki models:

• AG50 Address (1992)
• AH50 Address (1992-1994)
• AJ50 Sepia (1995-1996)
• AP50 (1994-1998)
• A-50 / AC-50 / AP-50 (1977-1984)

Part Number: 56-2947
