CONNECTING ROD KIT 98-19 KX80, HOT RODS 8147 KX80 KX85 KX100

High-quality connecting rod kit designed as a durable replacement for Kawasaki and Suzuki models. Built with precision and engineered to minimize high-rpm bearing race distortion, this kit delivers reliable performance under demanding conditions.

Features:

• Manufactured from hot-rolled ASTM 4115 steel and case-hardened to 58-62 Rc for enhanced strength and durability.
• Advanced design includes side scalloping and vent slots to minimize high-rpm bearing race distortion.
• Double-forged construction improves grain flow and ensures dimensional consistency.
• Shot-peened and double-honed rods provide superior strength under heavy loads.
• Double-drilled small ends optimize lubrication and cooling of the wrist pin bearing.
• Silver-coated thrust washers and crank pin bearings enhance lubricity and reduce friction.

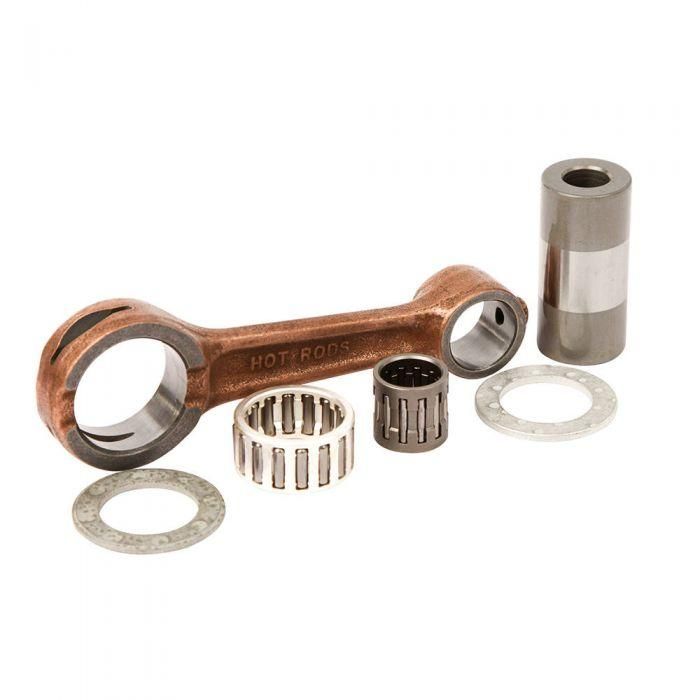

• Complete kit includes rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.

Technical Specifications:

• Big End Bearing (mm): 22x28x14
• Big End Bore (mm): 28.00
• Big End Width (mm): 13.98
• Center to Center (mm): 92.00
• Pin Diameter (mm): 22.00

Cross-Reference OEM Part Numbers:

• KAWASAKI: 13032-1230
• SUZUKI: K1303-21230
• HotRod: 8147

Vehicle Compatibility:

Kawasaki:

• 1998–2000 Kawasaki KX80
• 2001–2018 Kawasaki KX85
• 1998–2018 Kawasaki KX100
• 2009 Kawasaki KX85 Monster Energy
• 2009 Kawasaki KX100 Monster Energy

Suzuki:

• 2003 Suzuki RM100

Part Number: 56-878.HR
