| Product Type | Connecting Rod |
|---|---|
| Product Group | Crankshafts & Parts |
| Catalogue | DIRT |

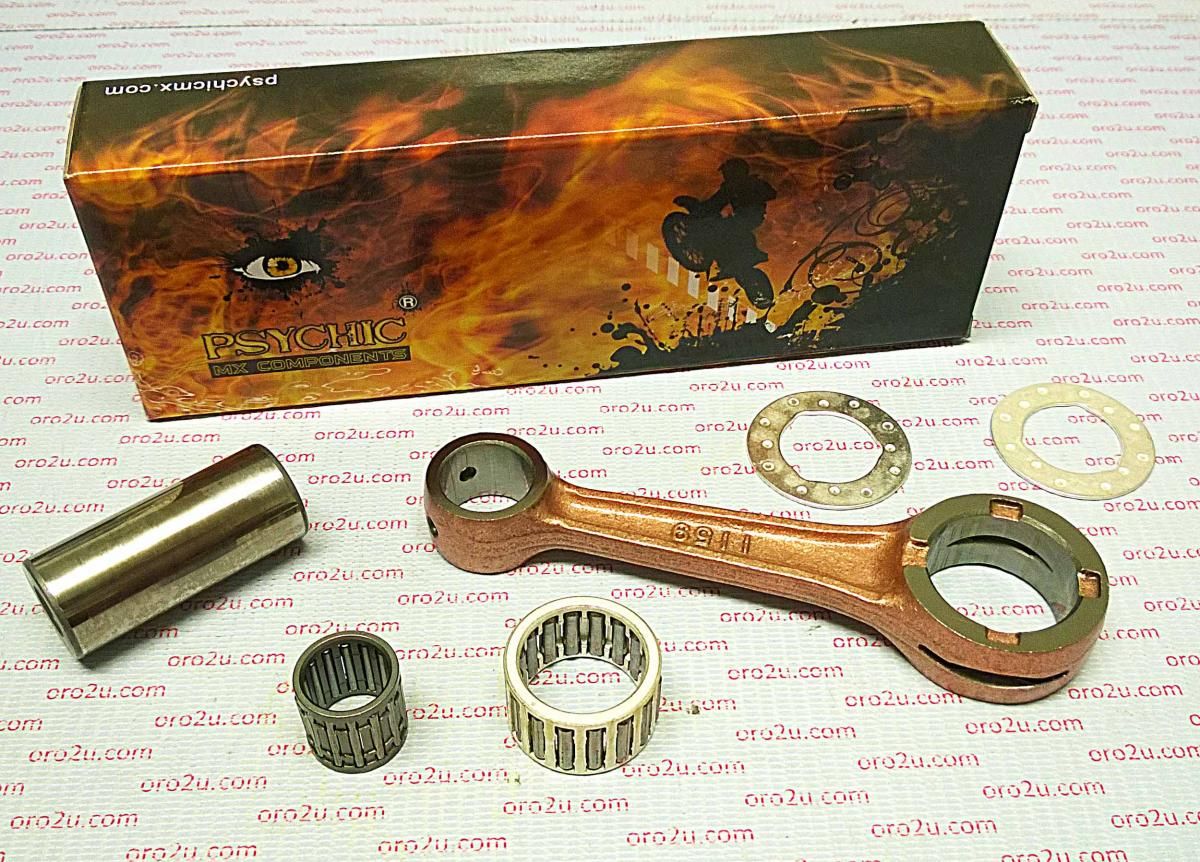

CONNECTING ROD KIT 98-02 KX125, PSYCHIC MX-09032 KAWASAKI MX
CONNECTING ROD CONROD REBUILD KIT PSYCHIC MX-09032
KAWASAKI
KX125 1998-2002,
– Heavy-duty OE replacement connecting rods.
– Certified Chorme alloy steel provides superior strength.
– Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
– Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
– Thrust washers are manufactured from bronze phosphor and are silver coated.
– Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
– Fully Compatible with after market and OE crankshafts.
– Material SNCM220,
|
SIZE |
MM |
|
Centre 2 Centre |
104 |
|
Small End Bearing |
15x19x19.80 |
|
Small End Bore Ø |
19 |
|
Small End Width |
17.00 |
|
Big End Bearing |
22x29x16.8 |
|
Big End Bore Ø |
29 |
|
Big End Width |
17.00 |
|
Big End Pin Ø |
22 |
|
Big End Pin Length |
51.00 |
|
Washer Thickness |
1.00 |
Part No. 56-877.DR (oro2u.com)
Cross reference numbers.
WOSSNER P2034, WISECO WPR165, HOTROD 8140, 13032-0010, 13032-1225, 13032-1253,
