CONNECTING ROD KIT 88-96 RM125, PSYCHIC MX-09052 SUZUKI

Connecting rod rebuild kit for Suzuki RM125 (1988–1996), engineered as a heavy-duty OE replacement. Built using certified chrome alloy steel for enhanced durability and longevity, this complete assembly is compatible with both aftermarket and OE crankshafts.

Features

• Heavy-duty connecting rod designed as an OE replacement.
• Constructed from certified chrome alloy steel for superior strength.
• Crankpins are hot-rolled ASTM steel and case-hardened for durability.
• Utilizes advanced caged needle roller bearing designs for high rpm performance.
• Thrust washers made from bronze phosphor with a silver coating.

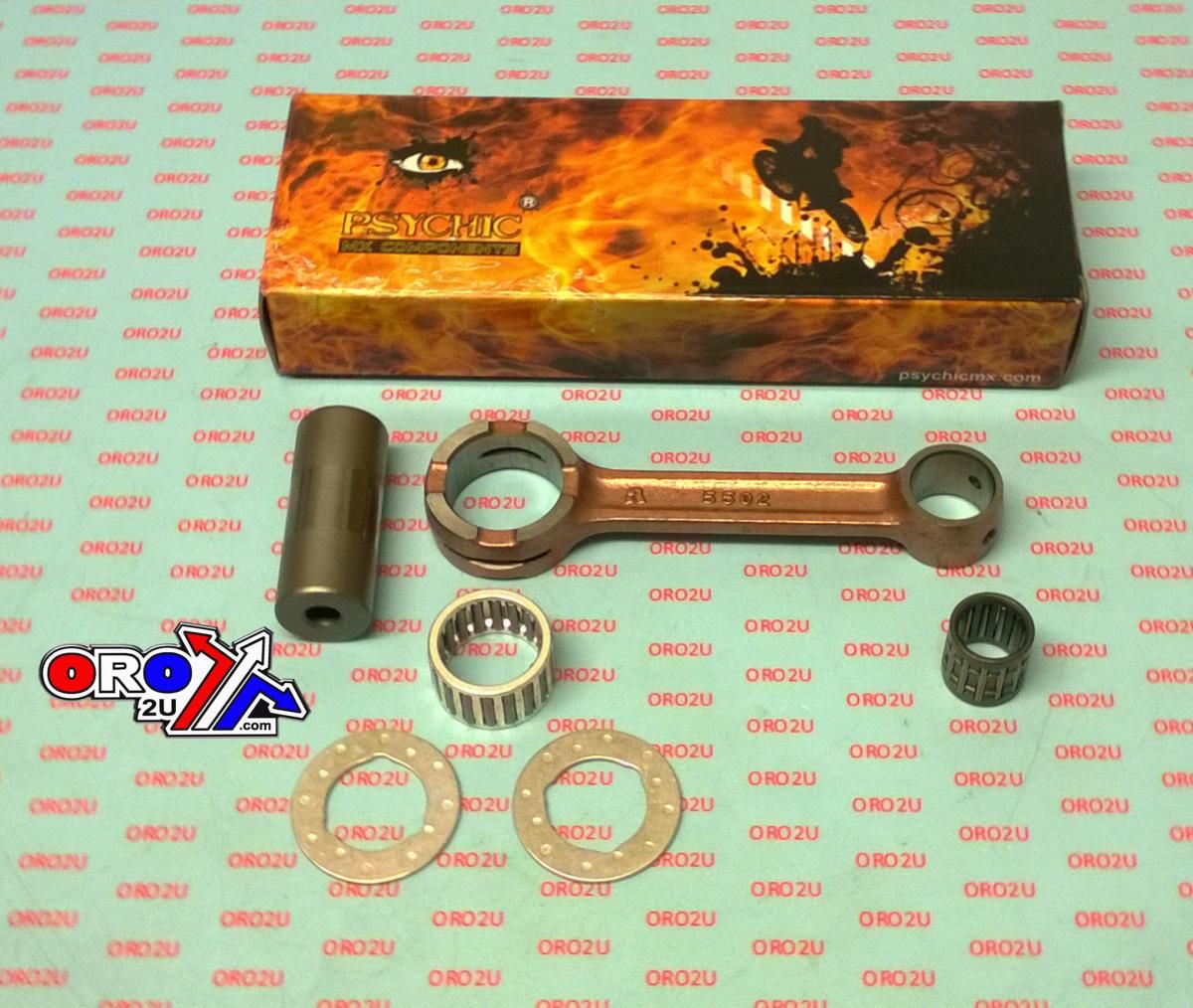

• Complete assembly includes rod, crankpin, crankpin bearing, top-end bearing, and thrust washers if required.
• Fully compatible with aftermarket and OE crankshafts.

Specifications

• Material: SNCM220
• Centre-to-Centre: 105 mm
• Small End Bearing: 15x19x19.80 mm
• Small End Bore Ø: 19 mm
• Small End Width: 18 mm
• Big End Bearing: 22x28x15.8 mm
• Big End Bore Ø: 28 mm
• Big End Width: 16 mm
• Big End Pin Ø: 22 mm
• Big End Pin Length: 53 mm
• Washer Thickness: 1.0 mm

Cross Reference OEM Part Numbers

• Suzuki: 12161-01B41
• Suzuki: 12161-27C00-0B0
• Suzuki: 12161-27C00-0D0
• Suzuki: 12161-27C10
• Suzuki: 12161-43D00
• Hotrods 8110
• ProX 03-3207
• Wossner P2015

Vehicle Fitments

• Suzuki RM125: 1988–1996

Part Number: 56-924.DR
