CONNECTING ROD KIT 87-92 LT250, PSYCHIC AT-95504, 09160-24015

CONNECING CONROD ROD REBUILD KIT
PSYCHIC / 4-PLAY / BRONCO AT-95504

SUZUKI ATV
1987-1992 LT250R Quadracer,

– Heavy-duty OE replacement connecting rods.
– Certified Chorme alloy steel provides superior strength.
– Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
– Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
– Thrust washers are manufactured from bronze phosphor and are silver coated.

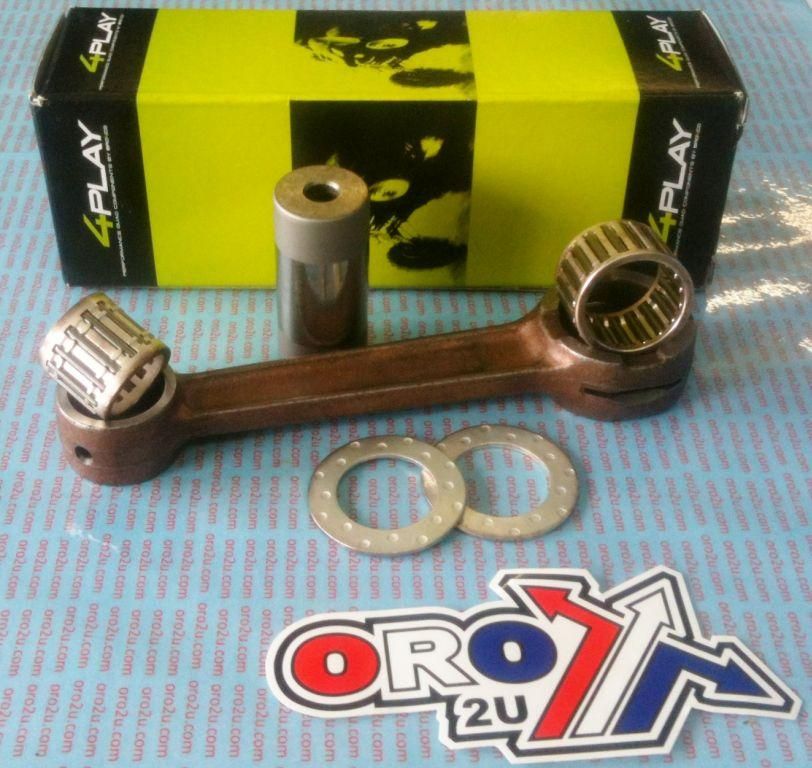

– Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
– Fully Compatible with after market and OE crankshafts.
– Material SNCM220,

Center To Center (mm): 128
Big End Bearing (mm):
Big End Bore (mm): 32
Big End Width (mm):
Big End Pin Diameter (mm): 24
Big End Pin Length (mm): 54.50
Small End Bearing (mm):
Small End Bore (mm): 23
Small End Width (mm):
Washer Thickness (mm):

Part No. 56-192.DR (oro2u.com)

Cross reference numbers ONLY.
12211-14301-000, 09160-24015, 12161-00B00 12161-05D00, HOTROD 8164

This part fits: SuzukiLT-250R QuadRacer1987 Suzuki LT-250R QuadRacer 1988 Suzuki LT-250R QuadRacer 1989 Suzuki LT-250R QuadRacer 1990 Suzuki LT-250R QuadRacer 1991 Suzuki LT-250R QuadRacer 1992 Suzuki LT-250R QuadRacer
